- 12th Gen Intel® Core™ i5-1235U Processor
- Support up to 8K UHD Display
- Support three displays that allow you to see more and do more
- Thunderbolt 4 delivers the fastest, most versatile connection to any dock, display, or data device & NAS
- Dual LAN: the best way to back up your file / secure data and prevent the hacker (with MSI exclusive BIOS)
- Get all the performance benefits from USB 3.2 Gen 2 and enjoy the best data transmission experience
- Experience 75% lower latency with WiFi 6E technology(optional)
- FW TPM design secures your confidential data with encryption keys
- Supports standard VESA-mount
| OPERATING SYSTEM |
Windows 11 Home
|
| – MSI recommends Windows 11 Pro for business | |
| CPU |
Intel® Core™ i7-1255U
|
| Intel® Core™ i5-1235U | |
| Intel® Core™ i3-1215U | |
| CHIPSET |
Intel® SoC
|
| GRAPHICS |
Intel® Iris® Xe Graphics (Core i5 above with dual-channel memory)
|
| Intel® UHD Graphics (Core i3) | |
| STORAGE |
1x M.2 SSD (NVMe PCIe Gen4 x4 / SATA auto switch)
|
| 1x 2.5" HDD / SSD | |
| SYSTEM MEMORY |
2x DDR4 2666/ 3200MHz SO-DIMMs, up to 64GB
|
| I/O (FRONT) |
2x USB 3.2 Gen 2 Type A
|
| 1x Thunderbolt 4 (USB Type C port) | |
| 1x Mic-in/ Headphone-out combo | |

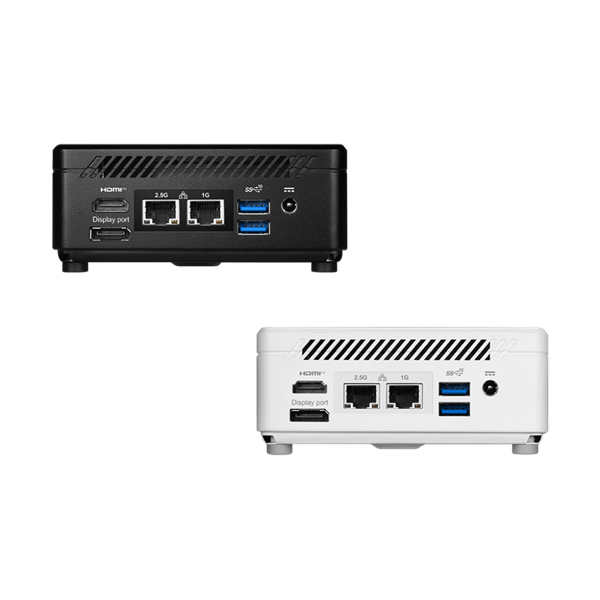

| I/O (REAR) |
2x USB 3.2 Gen 2 Type A
|
| 2x RJ45 | |
| 1x HDMI™-out (supports 4K @60Hz as specified in HDMI™ 2.0b) | |
| 1x DP-out (1.4) | |
| BLUETOOTH |
4.2 (for AC 3168)
|
| 5.2 (for AX201) | |
| 5.3 (for AX211) | |
| WIRELESS LAN |
Intel Wireless AC 3168
|
| Intel Wireless AX201 | |
| Intel Wireless AX211 | |
| LAN |
1x Realtek® RTL8111H
|
| 1x Realtek® RTL8125BG-CG | |
| COOLING SYSTEM |
Fan Cooler
|
| AC ADAPTER / PSU |
65W
|
| MANAGEMENT UTILITY |
MSI Center: Hardware Monitoring, Free Up Memory, Clean Up Disk, LAN Manager, MSI Recovery, F3 Recovery, Devices Speed Up, Smart Priority, Smart Image Finder, Noise Cancellation, Live Update, Microsoft App Update, System Info, Troubleshooting, Contact Us, MSI Forum & Channel
|
| SECURITY UTILITY & DEVICE |
MSI Center: System Diagnosis
|
| DIMENSION (WXDXH) |
124 x 124 x 53.7 mm
|
| (4.88 x 4.88 x 2.11 inch) | |
| WEIGHT (N.W./ G.W.) |
0.55 kg / 1.4 kg
|
| VESA MOUNT |
100 x 100 mm / 75 x 75 mm
|
| VOLUME |
0.66 Liter / 1.39 pt
|
| ACCESSORIES |
1x User Manual (Optional)
|
| 1x Quick Guide | |
| 1x Warranty Card | |
| 1x Adpator | |
| 1x Power Cord | |
| VESA Mount Screws | |
| CERTIFICATES |
FCC, CB/CE, UL & CUL, VCCI, RCM, ENERGY STAR
|
| NOTE |
*Upgrade timing may vary by device. Features and app availability may vary by region. Certain features require specific hardware (see https://www.microsoft.com/en-us/windows/windows-11-specifications).
|
