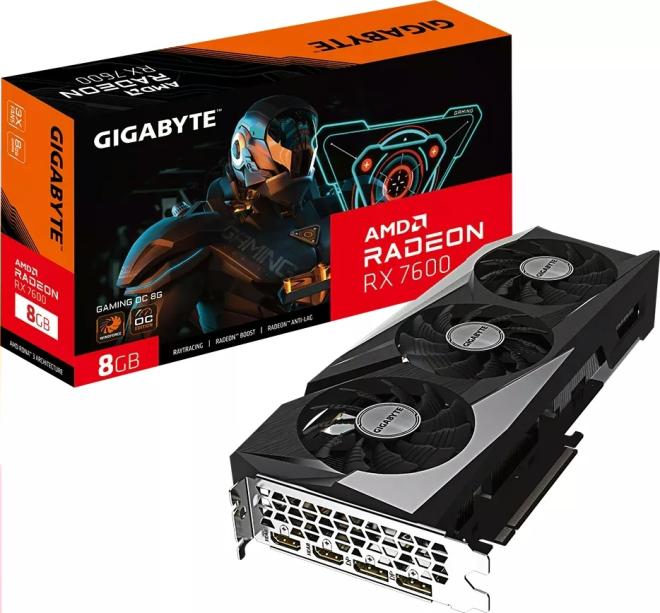

Gigabyte RX 7600 Gaming OC 8GB GDDR6 GV-R76GAMING OC-8GD 1.0

GPU
AMD Radeon RX 7600
Memory
8GB GDDR6, 128bit, 18Gbps, 2250MHz, 288GB/?s
overclock
+100MHz Boost, +105MHz Game
clock Boost
2355-2755MHz
clock Base
1720MHz
Cooling
3x Axial-fan (80mm) with 0dB-zero-fan-mode
TDP/TGP
165W (AMD)
Power connections
1x 8-Pin PCIe
Interfaces
2x HDMI 2.1, 2x DisplayPort 2.1
Interface
PCIe 4.0 x16 (x8)
Special features
Backplate, LED lighting (RGB)
total height
Triple Slot
Dimensions
282x115x50mm (LxWxH)
Type
PCIe card (full height)
PCI slot bracket
full height
Computing power
45.14 TFLOPS (FP16), 22.57 TFLOPS (FP32), 1.41 TFLOPS (FP64)
Warranty
three years (from date of manufacture, processing via specialized dealers)
Chip-data
Chip-Architecture
RDNA 3 (from 2022/?Q4)
Chip-title
Navi 33 XL
Chip-Configuration
32CU (2048 ALUs /? 128 TMUs /? 64 ROPs), 32 RT Cores, 6MB L2 cache, 32MB L3 cache
Chip-Manufacturing Process
TSMC 6nm
Chip size
204mm2, monolithisch
Chip-functions
Raytracing, AMD Infinity cache (32MB), HDCP 2.3
API-support
DirectX 12 Ultimate (12_2) /? Vulkan 1.3 /? OpenCL 2.1 /? OpenGL 4.6 /? Shader Model 6.7
