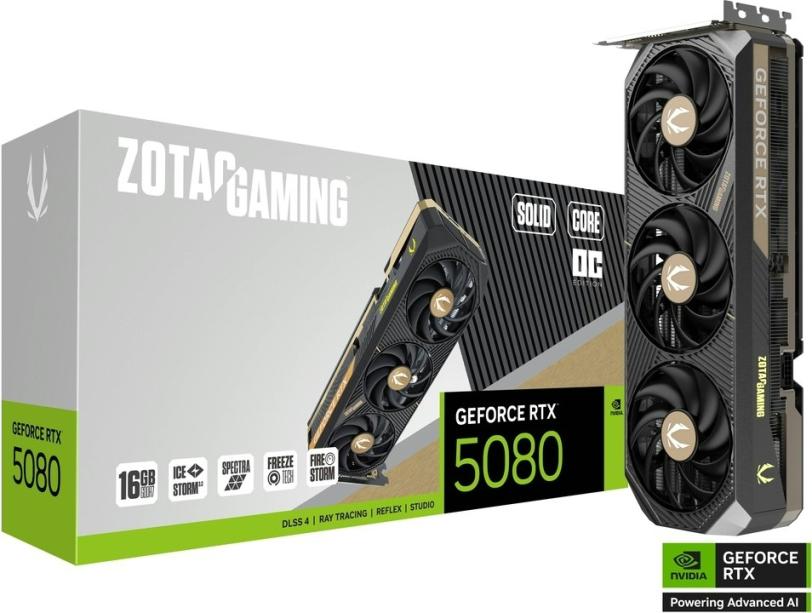

Zotac RTX 5080 SOLID CORE OC 16GB GDDR7

Model
NVIDIA GeForce RTX 5080
Memory
16GB GDDR7, 256bit, 30Gbps, 1875MHz, 960GB/?s
clock Base
2295MHz
clock Boost
2640MHz
overclock
+23MHz Boost
Cooling
3x Axial-fan (90mm) with 0dB-zero-fan-mode
TDP/TGP
360W (NVIDIA), max. 360W (Zotac)
AI-computing power (INT8)
>900 TOPS
GPU-Computing power
56.77 TFLOPS (FP16), 56.77 TFLOPS (FP32), 0.89 TFLOPS (FP64)
Power connections
1x 12V-2×6 (via adapter: 3x 8-Pin PCIe)
Connectors
1x HDMI 2.1b, 3x DisplayPort 2.1b UHBR20
Interface
PCIe 5.0 x16
Special features
AI-acceleration, LED lighting (RGB), Backplate, Dual BIOS switch, Graphics Cards-Mounting
total height
Triple Slot (2.5 Slots)
Dimensions
303.5×115.8×55.7mm (LxWxH)
Type
PCIe card (full height)
PCI slot bracket
full height
Chip-data
Chip-Architecture
Blackwell (from 2025/?Q1)
Chip-title
GB203-400-A1
Chip-Configuration
84SM (10752SP /? 336TMU /? 112ROP), 84 RT Cores, 336 Tensor Cores, 64MiB L2 cache
Chip-Manufacturing Process
TSMC 5nm „NVIDIA 4N”
Chip size
378mm2, monolithisch, 45.6 Mrd. Transistoren
Chip-functions
Raytracing (4th Gen NVIDIA RTX, 171 TFLOPS), NVIDIA Tensor (5th Gen, 900 TOPS), HDCP 2.3
API-support
DirectX 12 Ultimate (12_2) /? CUDA 12.8 /? Vulkan 1.3 /? OpenCL 3.0 /? OpenGL 4.6 /? Shader Model 6.8
Transcoding-Engine
2x NVENC (9th Gen, max. Sessions: 8), 2x NVDEC (6th Gen), Info
encoding
AV1, H.265 (4K YUV 4:2:0 /? 4K YUV 4:4:4 /? 4K Lossless /? 8K /? HEVC 10bit support /? HEVC B Frame support), H.264 (YUV 4:2:0 /? YUV 4:4:4 /? Lossless)
decoding
AV1 (8bit /? 10bit), H.265 (8bit 4:2:0 /? 10bit 4:2:0 /? 12bit 4:2:0 /? 8bit 4:4:4 /? 10bit 4:4:4 /? 12bit 4:4:4), H.264, VP9 (8bit /? 10bit /? 12bit), VP8, VC-1, MPEG-2, MPEG-1
