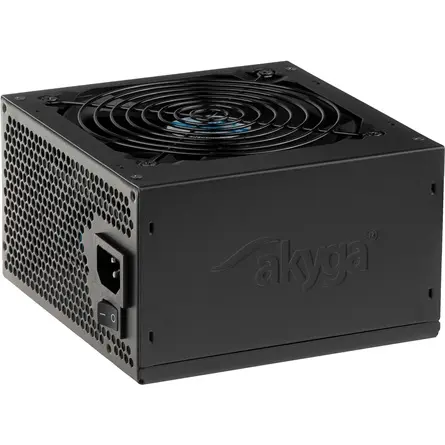

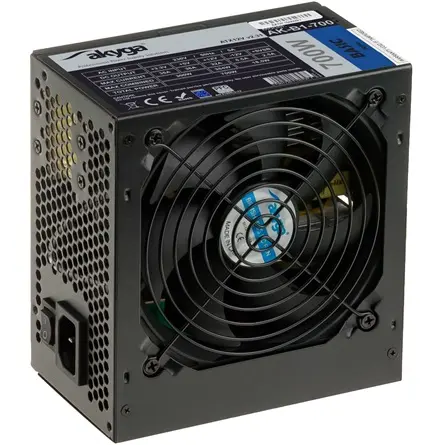

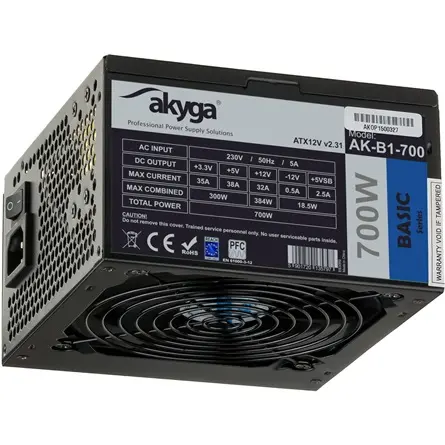

Akyga AK-B1-700BE 700W táp

Leírás

Megj.: ATX Power Supply 700W Akyga Ak-B1-700BE Black Edition P4+4 PCI-E 6 pin 6+2 pin 5x SATA 2x Molex PPFC Fan 12cm
Power Device Type: Power Supply
Power Device Location: Internal
Form Factor: ATX
Input Voltage: AC 230 V
Input Frequency: 50 Hz
Rated Input Current: 5 A
Input Power Connectors Quantity: 1
Input Power Connectors Type: IEC-320 C14
Output Voltage: DC 3.3/5/±12 V
Maximum Output Power: 700 W
Circuit Protection: Over Voltage
Over Temperature
Over Current
Short Curcuit Protection
Over Power
Modular Power Supply: No
Power Adapter and Power Supply Features: Passive PFC
Efficiency: 70%
+3.3V / +5V: (300 W)
+12V: 32 A (384 W)
+3.3V: 35 A
+5V: 38 A
24-pin Main Connector: 1
4/8-pin +12V Power Connector: 1
4-pin Peripheral Power Connector: 2
4-pin Floppy Drive Connector: 1
S-ATA Connector: 5
6-pin PCI Express Connector: 1
6/8-pin PCI Express Connector: 1
Maximum Fans Supported Quantity: 1
Fans Installed Quantity: 1
Fan Diameter: 120 mm
Maximum Operating Ambient Temperature: 50 °C
Minimum Operating Ambient Temperature: 5 °C
Mean Time Between Failures: 100000 hr
External Color: Black
Depth (mm): 150 mm
Height (mm): 85 mm
Width (mm): 160 mm
Nominal Weight: 1.26 kg
Warranty Products returnable: Yes
Warranty Term (month): 24 month(s)
Warranty validation Criteria: Serial Number
Pack Weight Brutto (kg): 1.2 kg
Pack Weight Netto (kg): 1.5 kg
Pieces in pack: 1
Box Weight Brutto (kg): 1.2 kg
Retail Packaging Net Weight Carton: 1.5 kg
Retail Packaging Net Weight Plastic: 1.5 kg
Packs in Box: 1
Package Type: Other
