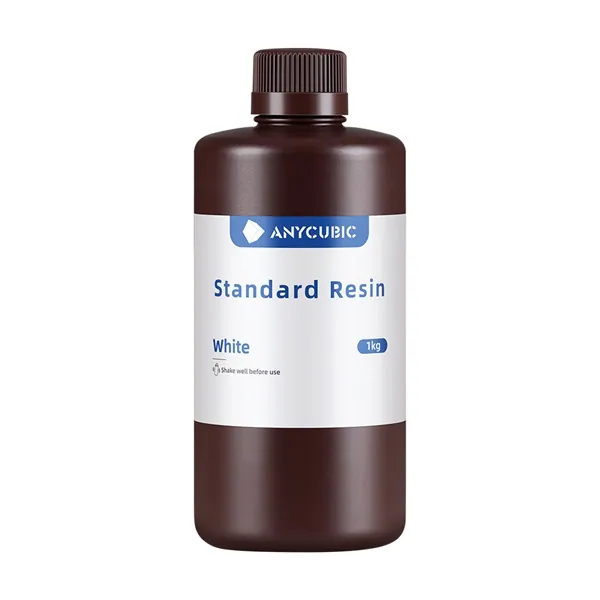

ANYCUBIC 3D Gyanta – Standard Resin White SPTWH-105G (Fehér, 1kg)

Leírás

Resin Parameters

UV wavelength365-405 nm

Elongation at break25-30%

Density1.05-1.25 g/cm³

Molding shrinkage4.3-5.6%

Viscosity250-350 mPa·s

Flexural strength40-50 MPa

Flexural modulus1500-2100 MPa

Hardness80-83 HD

Tensile strength35-45 MPa

Young modulus1200-1400 MPa

Heat deflection temp60-65?

Bottom exposure time20-40 s

Normal exposure time2.5-3 s

Resin washAlcohol

Recommended Printing Parameters

Printer Model	Layer Thickness	Exposure Time	Light-Off Time	Bottom Exposure Time	Bottom Layers	Anti-Aliasing Level	Z Lift Distance	Z Lift Speed	Z Retract  Speed
Photon Mono M7 Max	0.05 mm	2 s	0.5 s	30 s	5	1	8 mm	6 mm/s	6 mm/s
Photon Mono M7 Pro	0.1 mm	2.2 s	0.5 s	25 s	3	1	4 mm	15 mm/s	15 mm/s
Photon Mono M7 Pro	0.05 mm	2 s	0.5 s	25 s	4	1	8 mm	6 mm/s	6 mm/s
Photon Mono M7	0.05 mm	2.2 s	0.5 s	25 s	4	1	8 mm	6 mm/s	6 mm/s
Photon Mono 4 Ultra	0.05 mm	2.6 s	1 s	30 s	5	1	5 mm	8 mm/s	8 mm/s
Photon Mono 4	0.05 mm	2.8 s	1 s	30 s	5	1	6 mm	4 mm/s	6 mm/s
Photon Mono M5s Pro	0.05 mm	3.6 s	0.5 s	30 s	5	1	8 mm	6 mm/s	6 mm/s
Photon Mono M5s	0.1mm	3s	0.5 s	25 s	6	1	5 mm	20 mm/s	20 mm/s
Photon Mono M5s	0.05 mm	2.8 s	0.5 s	25 s	5	1	8 mm	5 mm/s	6 mm/s
Photon Mono M5	0.05 mm	2.8 s	0.5 s	25 s	5	1	8 mm	5 mm/s	6 mm/s
Photon Mono X6Ks	0.05 mm	2.5 s	0.5 s	20 s	5	1	8 mm	3 mm/s	4 mm/s
Photon Mono X 6K	0.05 mm	2 s	0.5 s	23 s	6	1	8 mm	2 mm/s	3 mm/s
Photon M3 Max	0.05 mm	3 s	2.5 s	50 s	6	1	10 mm	2 mm/s	3 mm/s
Photon M3 Premium	0.05 mm	2.5 s	0.5 s	25 s	2	1	8 mm	6 mm/s	6 mm/s
Photon Mono 2	0.05 mm	2.5 s	1 s	25 s	5	1	6 mm	4 mm/s	6 mm/s
Photon Mono X2	0.05 mm	2.5 s	0.5 s	20 s	5	1	8 mm	2 mm/s	3 mm/s
Photon Mono 4K	0.05 mm	2 s	0.5 s	40 s	6	1	6 mm	4 mm/s	6 mm/s

Color Type

ColorHex Color ValueColor Display

White#EFF0F1

Grey#7E93A7

HD Grey#768692

Black#212721

Purple#825DC7

Beige#FCC89B

Blue#00A3E0

Clear/

Transparent Green#009A17

Transparent Blue#077CAB

Transparent Red#D22630
