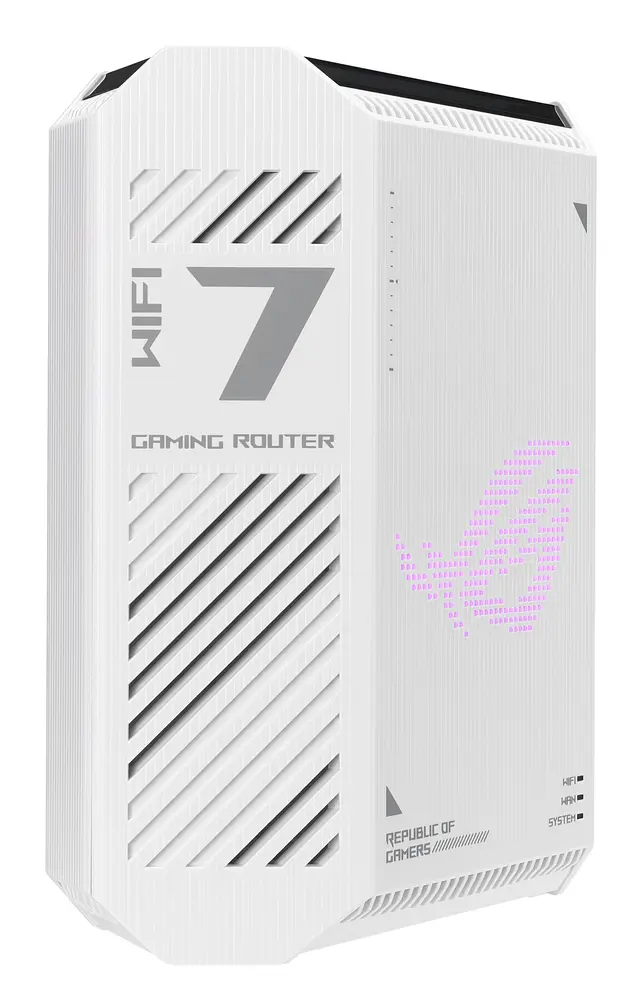

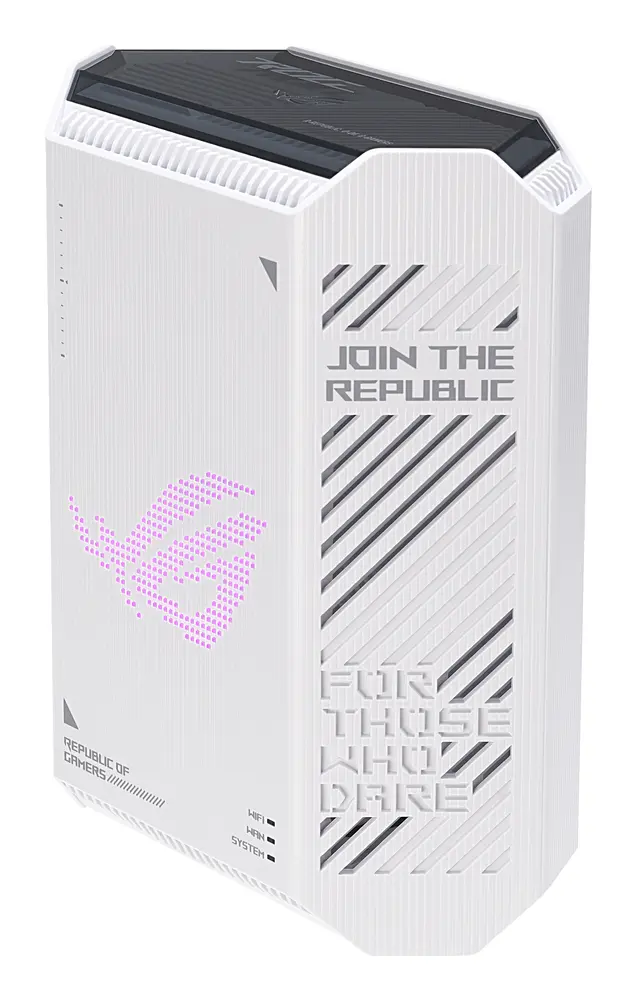

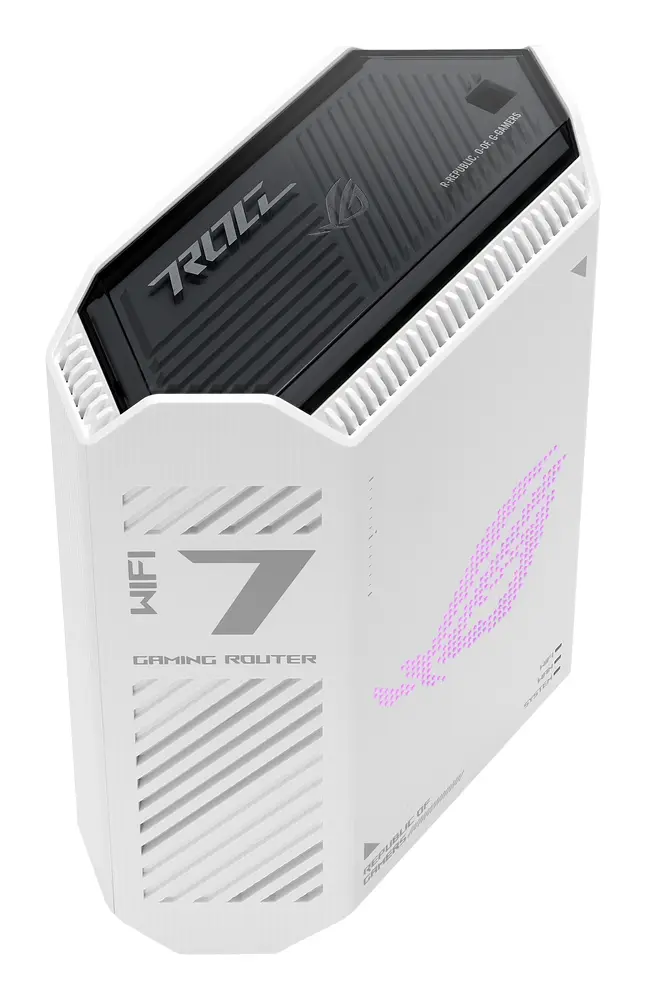

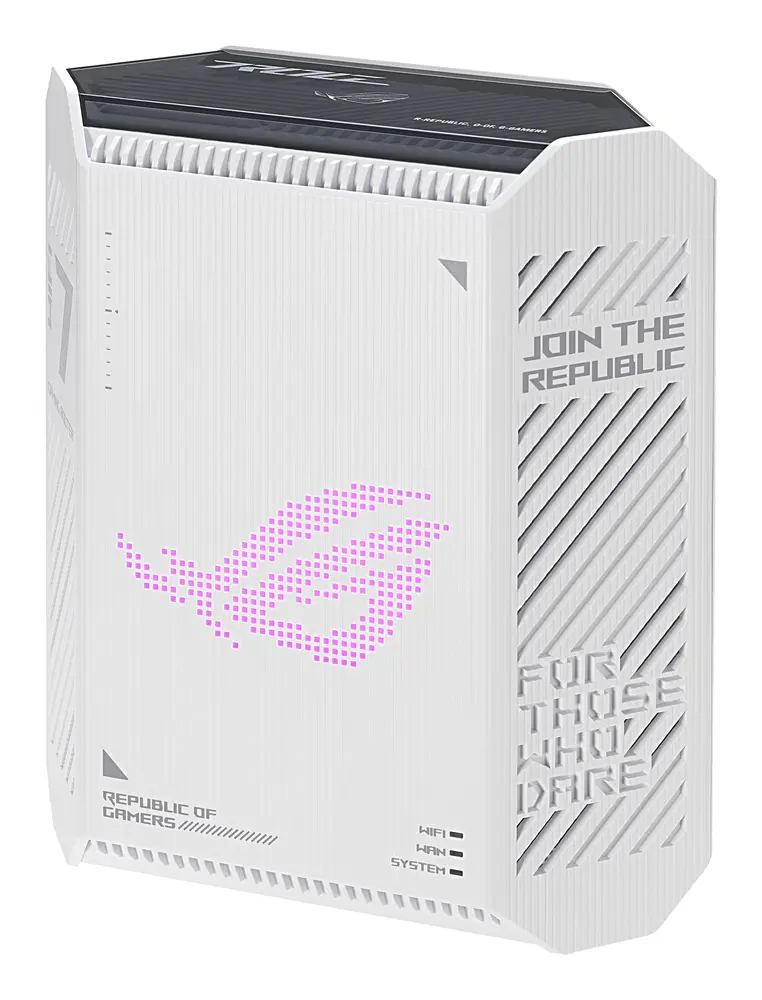

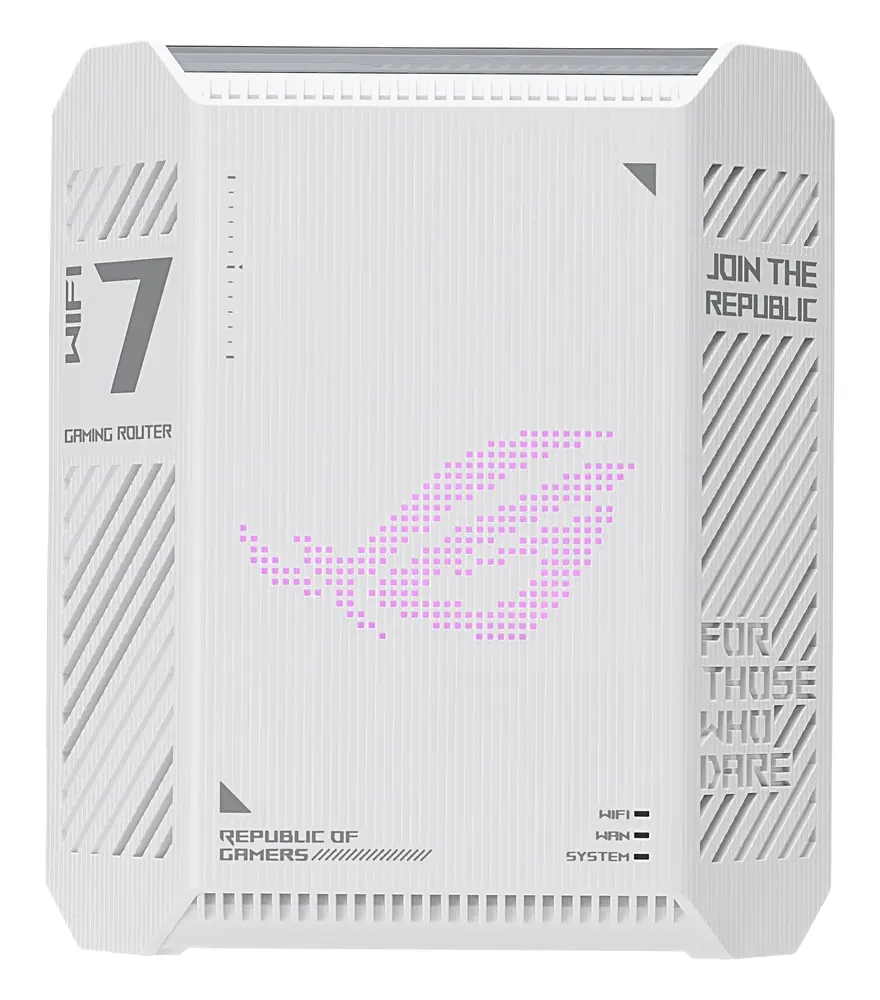

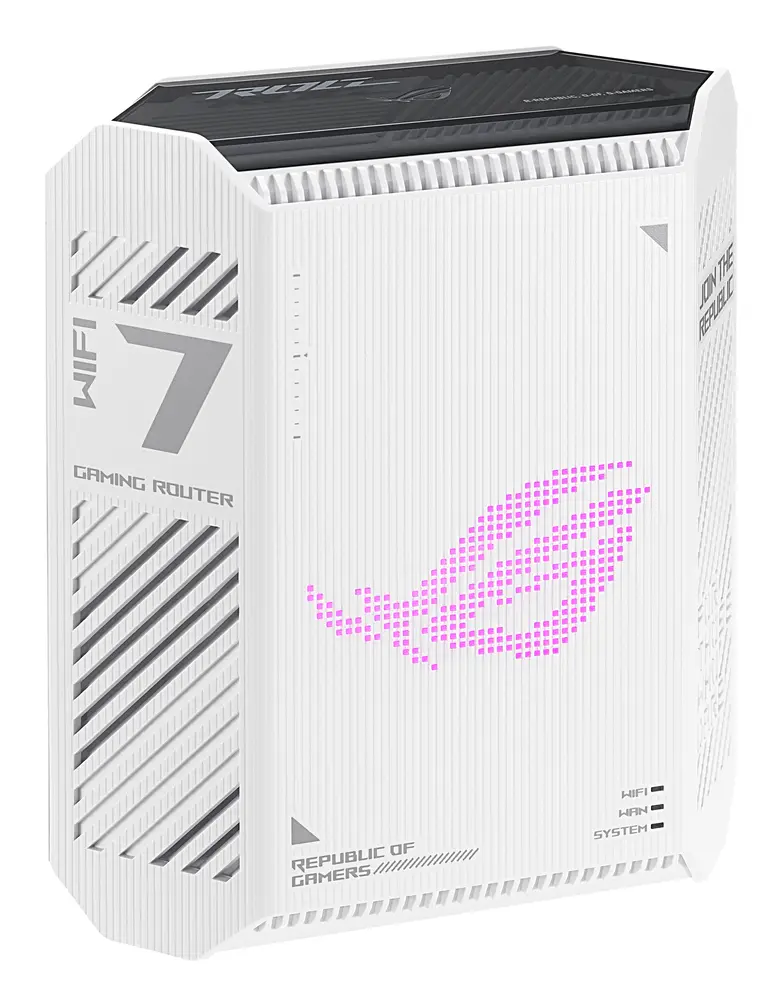

Asus GS-BE7200 ROG Srtix WiFi router BE7200

Leírás

Network Standard

WiFi 6 (802.11ax)
WiFi 7 (802.11be)
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
IEEE 802.11ac
IPv4
IPv6

Product Segment
BE7200 ultimate BE performance : 1376+5764 Mbps

WiFi Data Rate
2.4GHz BE: 4×4 (Tx/Rx) 4096 QAM 20/40MHz, up to 1376Mbps
5GHz BE: 5×5 (Tx/Rx) 4096 QAM 20/40/80/160MHz, up to 5764Mbps

Antenna
internal antenna x 6

Transmit / Receive
2.4GHz 4×4
5GHz 5×5

Processor
2.0GHz quad-core processor

Memory
128 MB Flash
DDR4 1 GB RAM

Boosts Speed
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
4096-QAM high data rate
20/40/80/160 MHz bandwidth
Operating Frequency
2.4 GHz
5 GHz

Operating Mode
Wireless Router Mode
AiMesh Node Mode
Access Point Mode
Media Bridge Mode
Repeater Mode

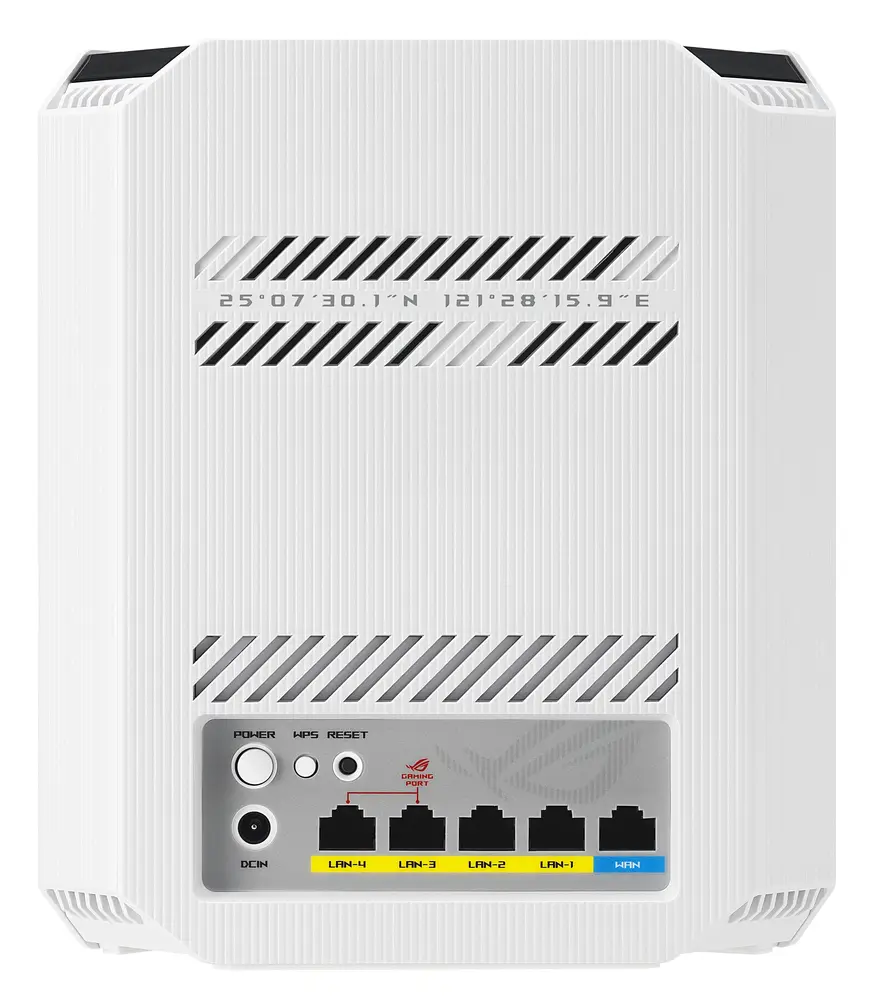

I/O Ports
1 x 2.5G for WAN
4 x 2.5G for LAN

Buttons
Power, WPS, Reset

LED Indicator
WiFi
WAN
SYSTEM

Power Supply
AC Input : 110V~240V(50~60Hz)
DC Output : 12V with max. 2.5A current

Package Content
WiFi7 Dual-Band router
ROG RJ-45 cable
Power adapter
Quick Start Guide
Warranty card

Product Dimensions
182.3 x 80 x 207 mm

AiMesh
Primary AiMesh Router
AiMesh Node

Game
Game Boost / Acceleration
Mobile Game Mode
Gear Accelerator
ROG_First
OpenNAT (Game Profile)
Gaming Port
Gaming Network

Parental Control
Allow you to block access to unwanted websites and apps.
Time Scheduling
Reward
Parental Control Customized Internet Schedule
Maximum Parental Control Profile :
64

Guest Network
The Guest Network provides Internet connection for guests but restricts access to your local network.
Support Guest Network
Maximum Guest Network Rule :
2.4 GHz + 5 GHz : 3
Guest Network Connection time limit
Guest Network Encryption :
Open system, WPA/WPA2/WPA3-Personal

Security

AiProtection
VPN
WiFi Encryption :
WPA/WPA2/WPA3 Personal
WPA/WPA2/WPA3 Enterprise
WPS
Let’s Encrypt
DNS-over-TLS
SSH
Security Scan
Firewall
Maximum Firewall Keyword Filter :
64
Maximum Firewall Network Service Filter :
32
Maximum Firewall URL Filter :
64

AiProtection
AiProtection
Router Security Assessment
Malicious Site Blocking
Advertisement Blocking
Tracker Blocking

VPN
Instant Guard
VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion

Traffic Control
Adaptive QoE
Bandwidth Monitor
Bandwidth Limiter
Maximum Bandwidth Limiter Rule :
32
Traditional QoS

Traffic Monitor
Real-time Traffic Monitor
Wired Traffic Monitor
Wireless Traffic Monitor
Traffic Analyzer
Traffic Analysis Period :
Daily, Weekly, Monthly
Website History

WAN
Internet Connection Type :
PPPoE
PPTP
L2TP
Automatic IP
Static IP
IPSec
NAT Passthrough :
NAT Passthrough :
NAT Passthrough :
PPTP Pass-Through
NAT Passthrough :
L2TP Pass-Through
NAT Passthrough :
IPSec Pass-Through
NAT Passthrough :
RTSP Pass-Through
NAT Passthrough :
H.323 Pass-Through
NAT Passthrough :
SIP Pass-Through
NAT Passthrough :
PPPoE Relay

LAN
DHCP Server
IGMP Snooping
IPTV
Manually Assign IP Address
Maximum Manually Assign IP Address Rule :
128
Wake on LAN (WOL)

Wireless
MU-MIMO

User Interface
WEB: ASUSWRT
APP: ASUS Router APP

Administration
Configuration Backup and Restore
Diagnosis Tools
Feedback System
System Log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Auto Firmware Update
