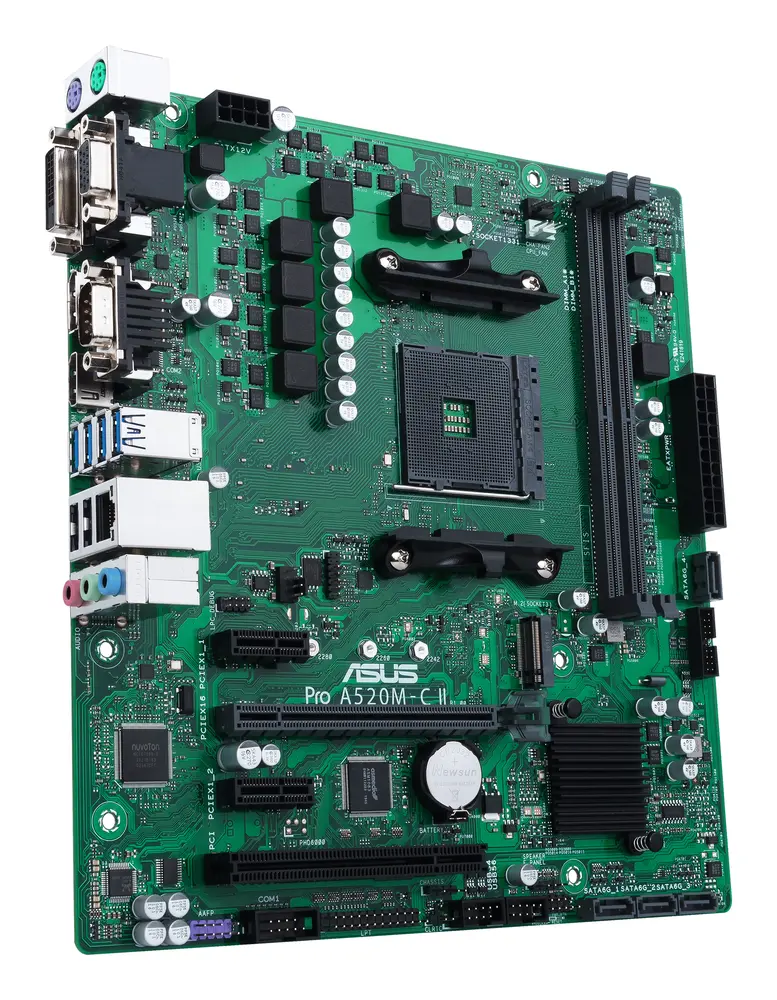

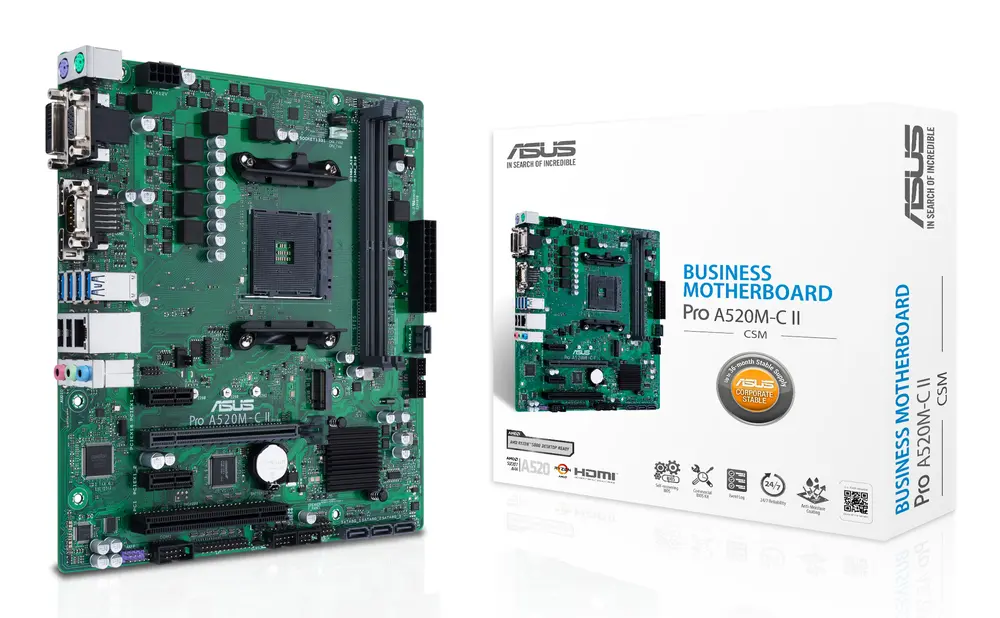

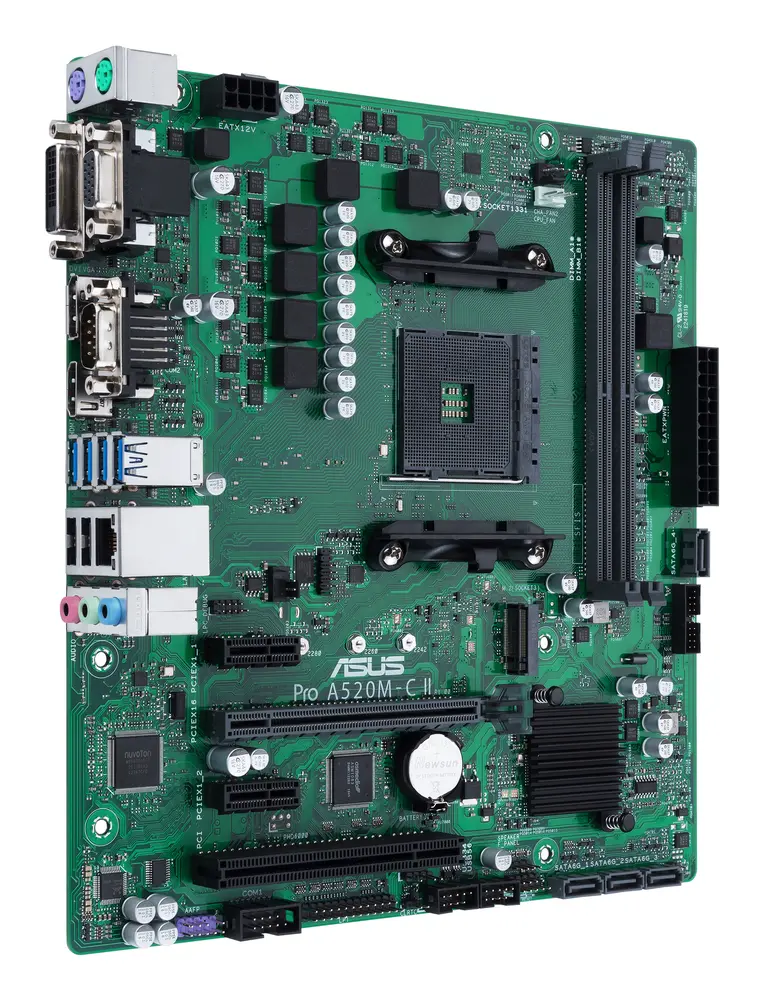

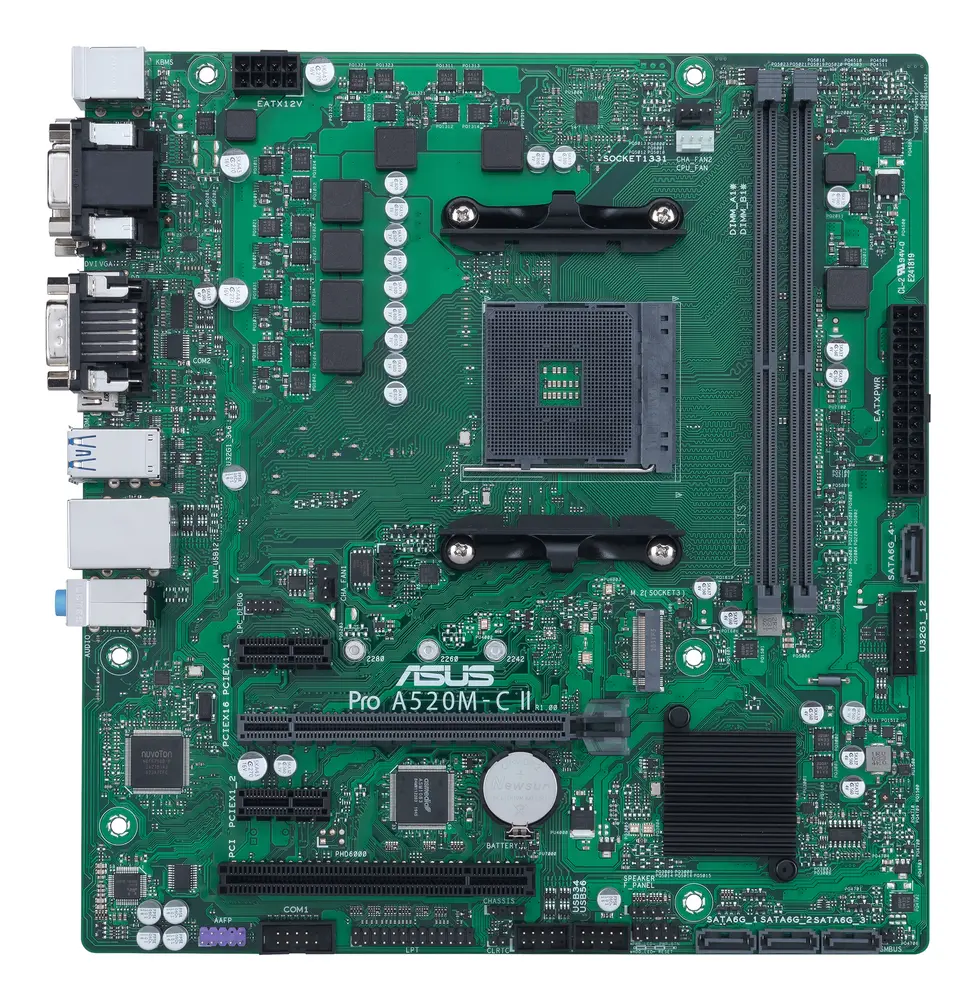

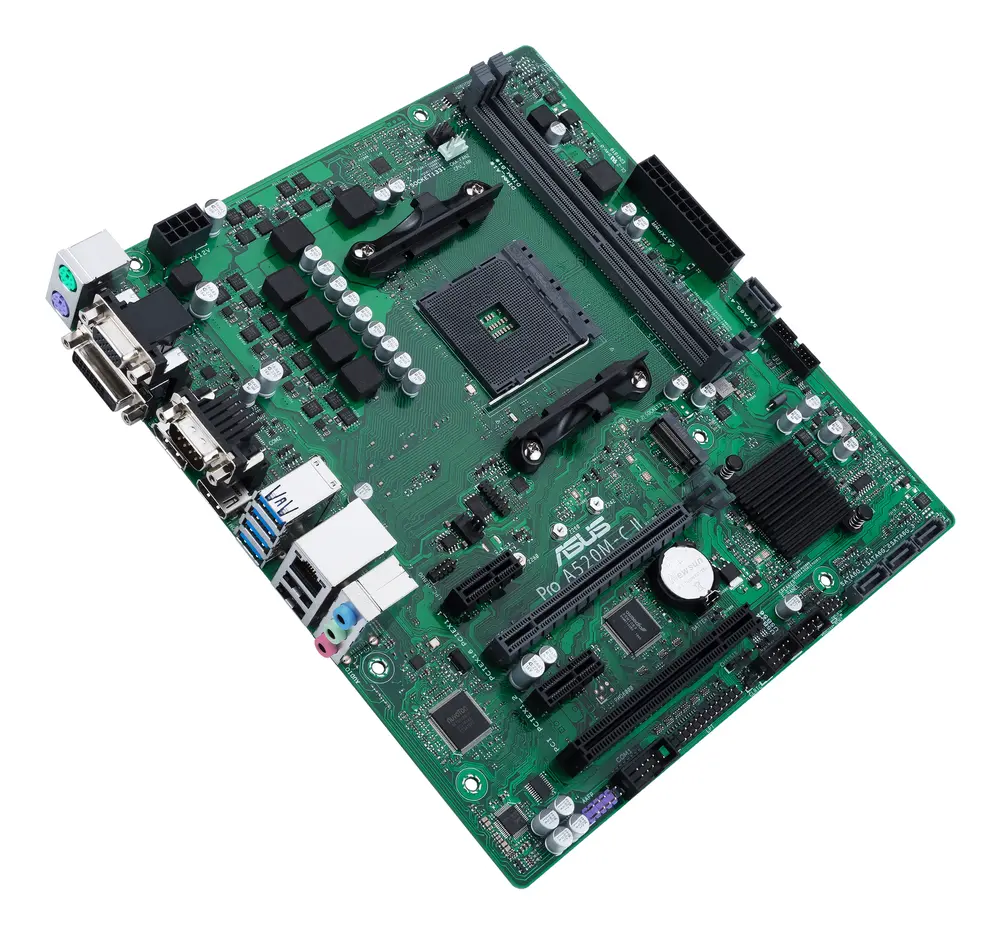

Asus PRO A520M-C II/CSM alaplap

Leírás

CPU
Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
*Refer to www.asus.com for CPU support list.
Memory
DDR4 4866(O.C.)/4600(O.C.)/4466(O.C.)/4400(O.C.)/4333(O.C.)/4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/346(O.C.)/3400(O.C.)/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz, Un-buffered Memory*

Dual Channel Memory Architecture

*ECC memory (ECC mode) support varies by CPU.
*Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
Graphics
1 x DisplayPort 1.2
1 x D-Sub
1 x DVI-D
1 x HDMI™ 2.1(4K@60Hz)
*Graphics specifications may vary between CPU types.

*The DVI-D port and the DisplayPort cannot work at the same time. Only the DVI-D port functions when the two ports are both connected.

Expansion Slots
AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors
1 x PCIe 3.0 x16 slot (supports x16 mode)
AMD A520 Chipset
2 x PCIe 3.0 x1 slots
1 x PCI slot
Storage
AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors

M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)

AMD A520 Chipset
4 x SATA 6Gb/s ports
Support RAID 0, 1, 10

USB
4 x USB 3.2 Gen 1 ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio
Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

*A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

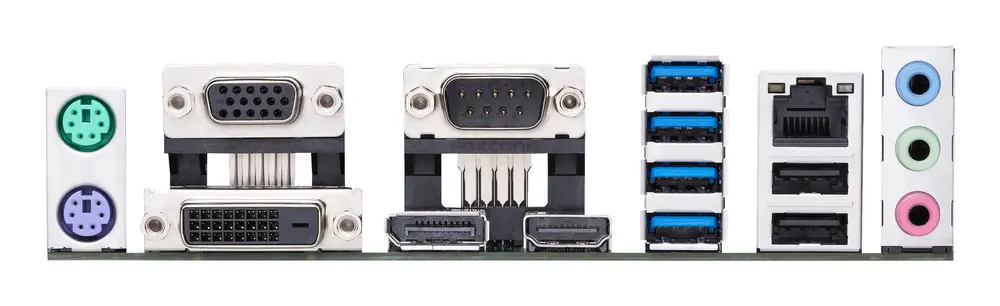

Back Panel I/O Ports
4 x USB 3.2 Gen 1 ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x DisplayPort
1 x D-Sub port
1 x DVI-D port
1 x HDMI™ port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x COM port
1 x PS/2 Keyboard (purple) port
1 x PS/2 Mouse (green) port
Internal I/O Connectors
Fan and Cooling related

1 x 4-pin CPU Fan header

2 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

1 x M.2 slot (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

1 x Clear CMOS header

1 x Chassis Intrude header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x LPC debug header

1 x LPT header

1 x SMBUS header

1 x Speaker header

1 x 10-1 pin System Panel header
Special Features
ASUS Q-Design

– ASUS Q-DIMM

– ASUS Q-Slot

ASUS Thermal Solution

– Aluminum heatsink design

ASUS EZ DIY

– Box Headers

Bespoke Motherboard Design & Business Focused Features

– ASUS Self Recovering BIOS

– ASUS Event Log

– ASUS Commercial BIOS kit

– Anti-Moisture Coating

– 24/7 Reliability

– Overcurrent Protection

TPM 2.0 IC Onboard
Software Features
ASUS Exclusive Software

IT Management software supported
– ASUS Control Center Express(ACCE)

BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables

2 x SATA 6Gb/s cables

Miscellaneous

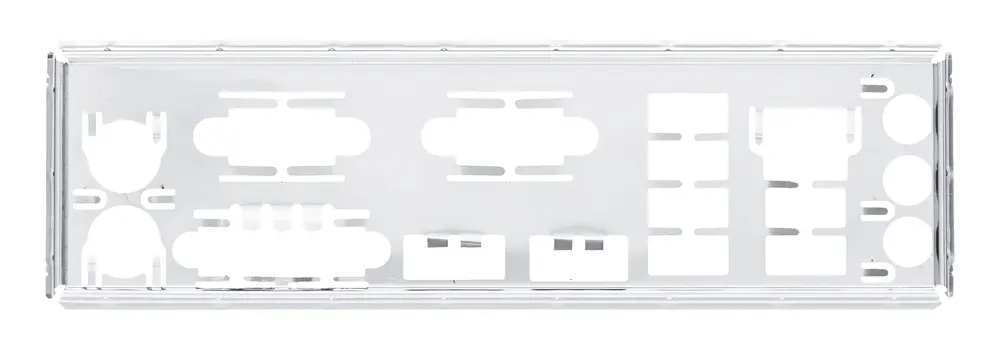

1 x I/O Shield

1 x M.2 SSD screw package

Installation Media

1 x Support DVD

Documentation

1 x ACC Express Activation Key Card

1 x User manual

Operating System
Windows 10 64bit
Form Factor
24.4cm x 22.9cm
