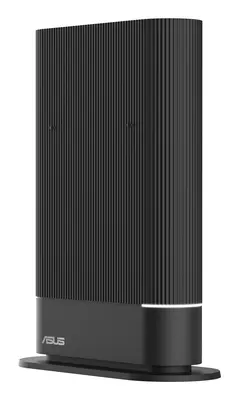

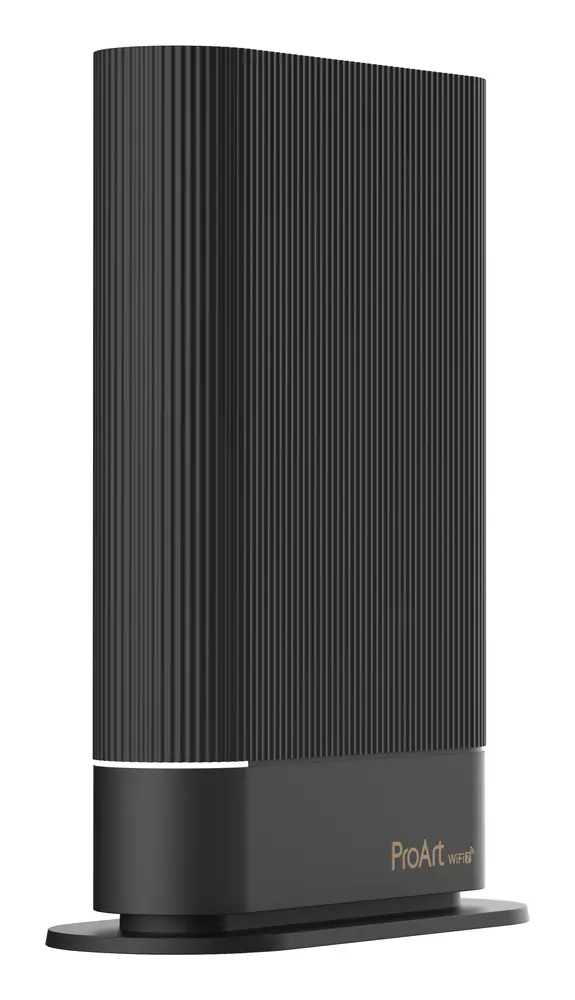

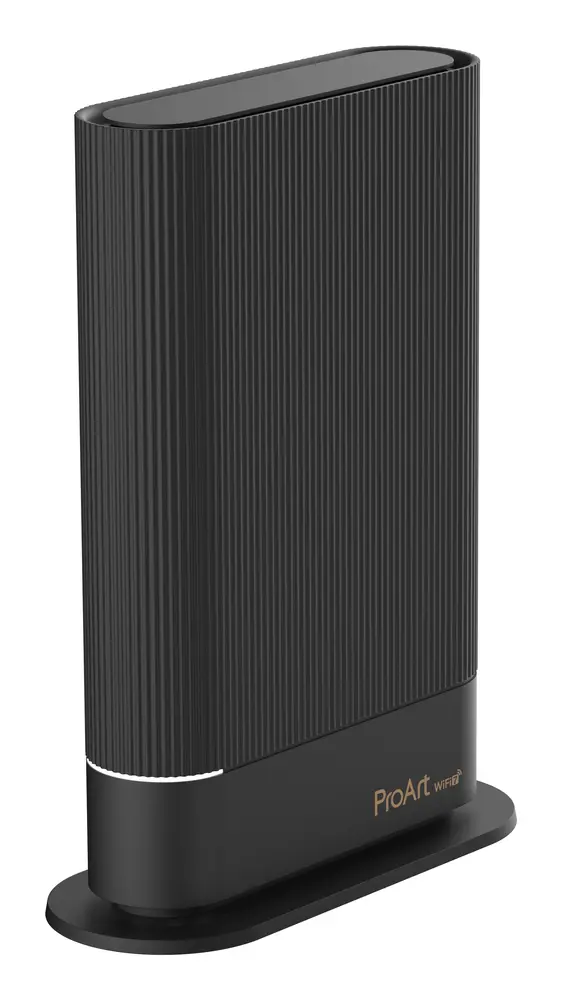

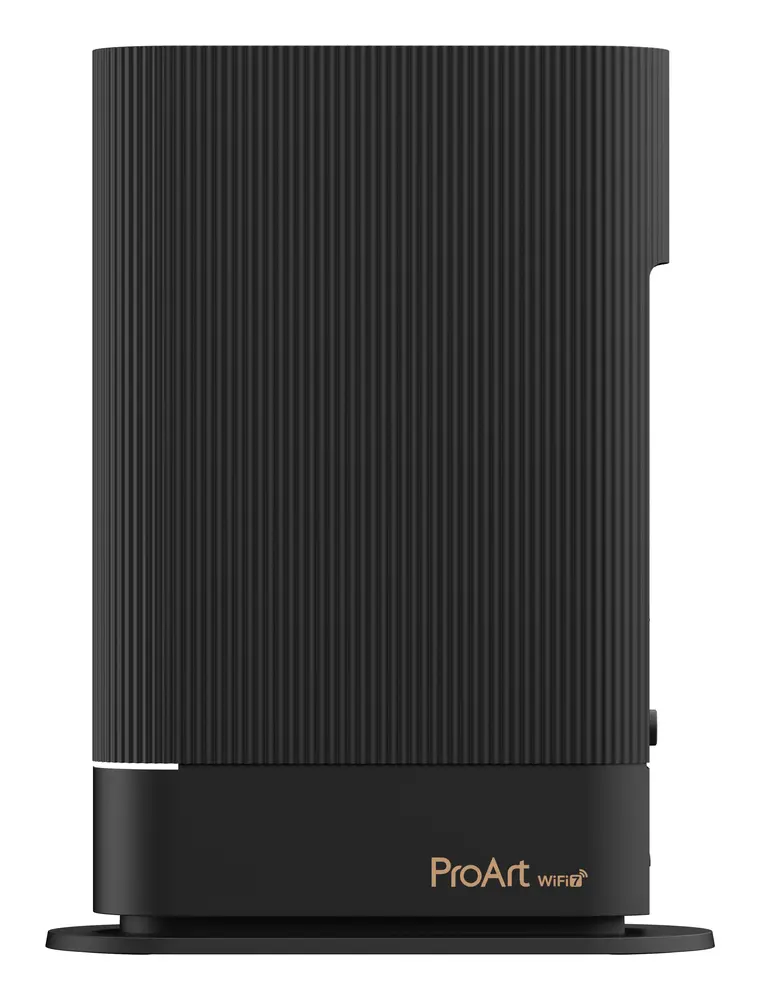

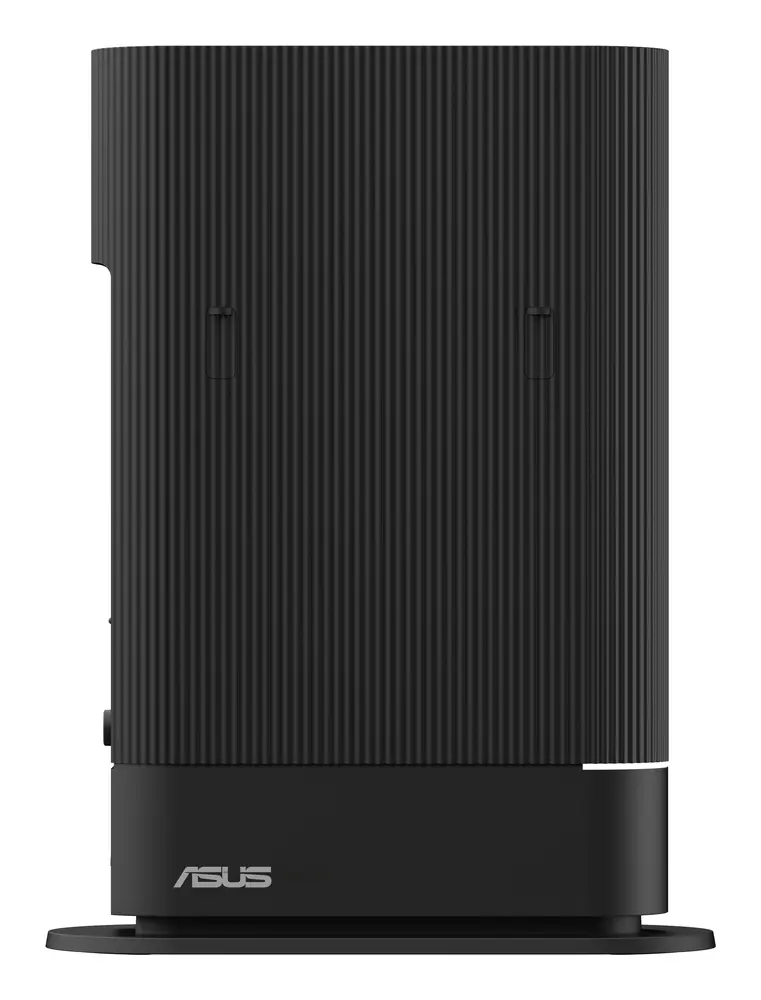

Asus PRT-BE5000 ProArt WiFi router BE5000

Leírás

Network Standard
IPv6
IPv4
WiFi 7 (802.11be)
WiFi 6 (802.11ax)
WiFi 5 (802.11ac)
WiFi 4 (802.11n)
IEEE 802.11g
IEEE 802.11b
IEEE 802.11a

Product Segment
BE5000 ultimate BE performance : 688+4320 Mbps

WiFi Data Rate
WiFi 7 (802.11be) (5GHz): up to 4320 Mbps
WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps

Antenna
5xInternal Antennas (2×2.4GHz + 3x5GHz )

Transmit / Receive
5GHz 3×3
2.4GHz 2×2

Processor
2.0 GHz quad-core processor

Memory
128 MB Flash
1 GB RAM

Boosts Speed
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
4096-QAM high data rate
20/40/80/160 MHz bandwidth

Operating Frequency
5 GHz
2.4 GHz

Operating Mode
Wireless router mode
AiMesh node mode

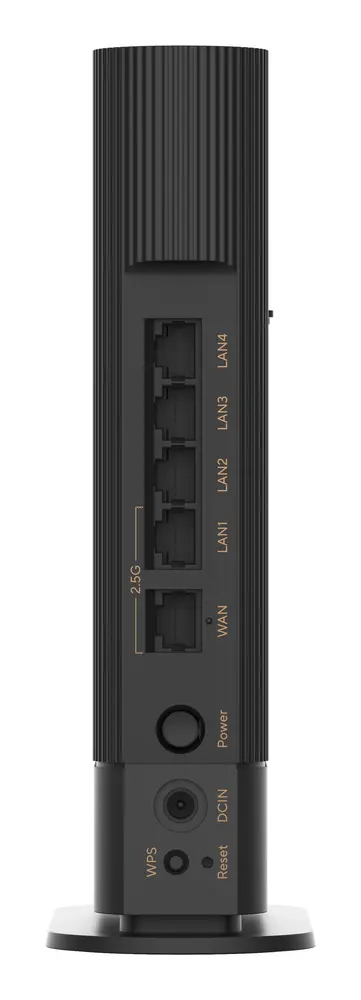

I/O Ports
1x 2.5G for WAN,
1x 2.5G for LAN,
3 x 1G LAN

Buttons
WPS Button, Reset Button, Power Button

LED Indicator
Power & Status Combo LED x 1

Power Supply
AC Input : 100V~240V (50~60Hz)
DC Output : 12 V with max. 2 A current

Package Content
PRT-BE5000
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card

Product Weight (g)
503.7 g

Product Dimensions
131 x 37.5 x 200 mm

AiMesh
AiMesh, Primary AiMesh Router, AiMesh Node

Parental Control
Time Scheduling, Safe Browsing, Customized Internet Schedule

Security
AiProtection, VPN, WPS support, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise, WPS, Let’s Encrypt, DNS-over-TLS, SSH, Security Scan, Firewall, Maximum Firewall Keyword Filter : 64, Maximum Firewall Network Service Filter : 32, Maximum Firewall URL Filter : 64

AiProtection
AiProtection, Router Security Assessment, Malicious Site Blocking

VPN
Instant Guard, VPN Client L2TP, VPN Client Open VPN, VPN Client PPTP, VPN Client WireGuard, VPN Server IPSec, VPN Server Open VPN, VPN Server PPTP, VPN Server WireGuard

Traffic Control
Traffic Monitor, Real-time Traffic Monitor, Wired Traffic Monitor, Wireless Traffic Monitor, Traffic Analyzer, Traffic Analysis Period : Daily, Weekly, Monthly, Website History

WAN
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP, DMZ, DDNS, NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay

LAN
DHCP Server, IGMP Snooping, IPTV, Manually Assign IP Address

Wireless
MU-MIMO, WiFi MAC Address Filter

User Interface
WEB: ASUSWRT, APP: ASUS Router APP

Administration
Configuration Backup and Restore, Diagnosis tools, Feedback System, System Log, New Device Connect Notification, Login Captcha, Connection Diagnosis, Auto Firmware Update
