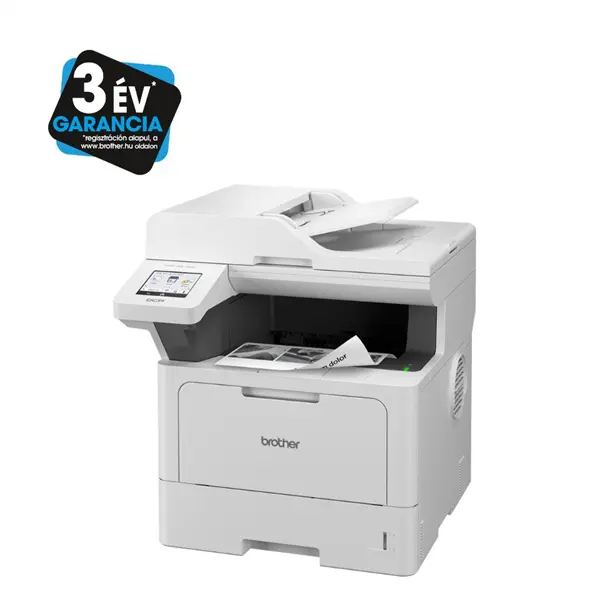

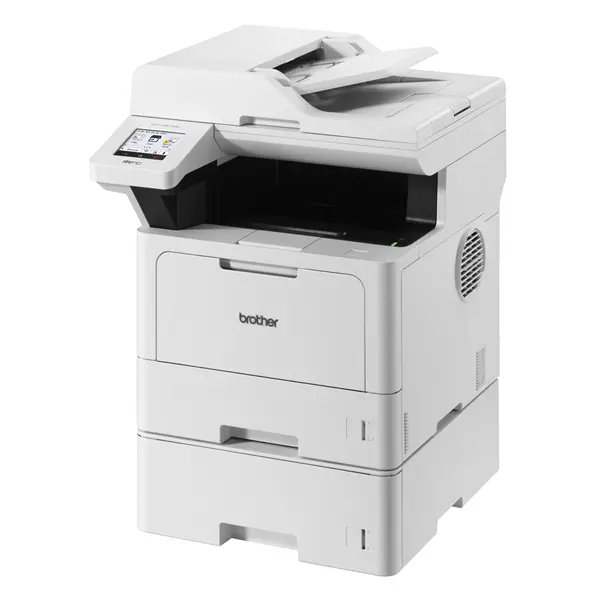

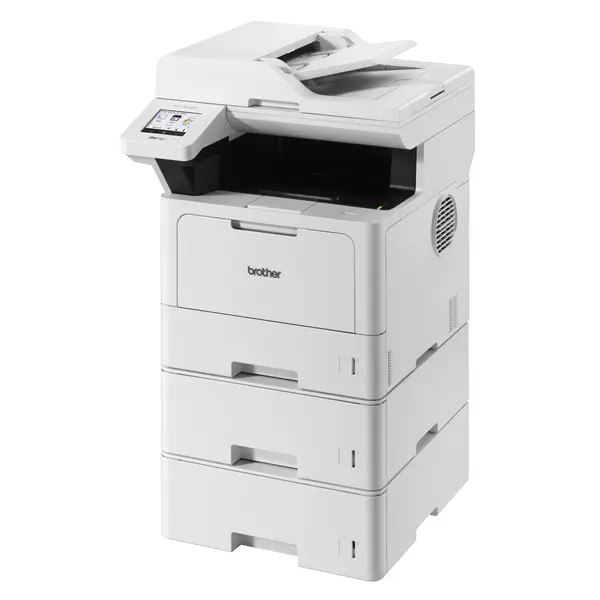

BROTHER Lézer MFP NY/M/S DCP-L5510DW, A4, mono, 48 lap/perc, LAN/USB/Wifi, ADF, duplex, 1200x1200dpi, 512MB
Cikkszám: US75057·Gyártói cikkszám: DCPL5510DWRE1·EAN: 4977766824552
170 990 Ft
Bruttó ár, az ÁFÁ-t tartalmazza
- Házhoz szállításGLS vagy MPL futárral, 1 790 Ft
- Személyes átvételdíjmentesen
- Garanciaminden termékre, számlával
- 14 napos elállási jogindoklás nélkül
Az Ön jogszabályi szavatossági jogai
Leírás
Garancia: 3 Év
General Specifications
Printer Type |
| ||
Print Method |
| ||
Memory Capacity | Standard |
| |
Machine display |
| ||
Power Source |
| ||
Power Consumption (Average) | Peak |
| |
Printing *2 |
| ||
Printing (Quiet Mode) *2 |
| ||
Copying *2 |
| ||
Copying (Quiet Mode) *2 |
| ||
Ready *2 |
| ||
Sleep *2 |
| ||
Deep Sleep *2 |
| ||
Power Off *3 *4 |
| ||
Dimensions (Typical outline view) | Unit: mm
| ||
Weight (with supplies) | (For Australia and New Zealand)
(For other countries)
| ||
Noise Level | Sound Pressure *5 | Printing |
|
Printing (Quiet Mode) |
| ||
Ready |
| ||
Sound Power | Printing *5 |
| |
Printing (Quiet Mode) |
| ||
Ready |
| ||
Temperature | Operating |
| |
Storage |
| ||
Humidity | Operating |
| |
Storage |
| ||
Automatic Document Feeder (ADF) |
For best results we recommend:
|
*1
Measured diagonally.
*2
Measured when the machine is connected using the same network connection as the ENERGY STAR Ver. 3.1 test method.
*3
Measured according to IEC 62301 Edition 2.0.
*4
Power consumption varies slightly depending on the usage environment.
*5
Measured in accordance with the method described in ISO 7779.
Document Size Specification
Document Size | ADF Width |
|
ADF Length |
| |
Scanner Glass Width |
| |
Scanner Glass Length |
|
Print Media Specifications
Paper Input | Paper Tray (Standard) | Paper Type |
|
Paper Size |
| ||
Paper Weight |
| ||
Maximum Paper Capacity |
| ||
Multi-Purpose Tray (MP tray) | Paper Type |
| |
Paper Size |
| ||
Paper Weight |
| ||
Maximum Paper Capacity |
| ||
Paper Tray 2, 3 (Optional) *2 | Paper Type |
| |
Paper Size |
| ||
Paper Weight |
| ||
Maximum Paper Capacity |
| ||
Paper Output *3 | Face Down Output Tray |
| |
Face Up Output Tray |
| ||
2-sided | Automatic 2-sided Printing | Paper Type |
|
Paper Size | For Australia, Korea, and New Zealand
For other countries Select the paper size you want to use by sliding the 2-sided lever:
| ||
Paper Weight |
|
*1
For paper of 105 g/m2 and above, open the back cover to use the face up output tray.
*2
Maximum number of Lower Trays: Up to two Lower Trays in any combination.
*3
For labels, we recommend removing the printed sheets from the output paper tray immediately after they exit the machine to avoid the possibility of smudging.
Fax Specifications
NOTE
This feature is available for MFC models.
Compatibility |
| |
Coding System |
| |
Modem Speed |
| |
2-sided Print Receiving |
| |
Automatic 2-sided Sending |
| |
Scanning Width |
| |
Printing Width |
| |
Greyscale |
| |
Resolution | Horizontal |
|
Vertical |
| |
Address Book *1 |
| |
Groups *1 |
| |
Broadcasting |
| |
Automatic Redial |
| |
Memory Transmission |
| |
Out of Paper Reception |
|
*1
Available for DCP and MFC models
*2
‘Pages’ refers to the ‘ITU-T TestChart Document No.1’ (a typical business letter, Standard resolution, JBIG code).
Copy Specification
Copy Width |
|
Automatic 2-sided Copy |
|
Sort Copy |
|
Stack Copy |
|
Enlarge/Reduce |
|
Resolution |
|
First Copy Out Time *1 |
|
*1
From Ready Mode and standard tray.
Scanner Specifications
Colour / Black |
|
TWAIN Compliant |
|
WIA Compliant |
|
Colour Depth |
|
Grey Scale |
|
Resolution *1 |
|
Scanning Width |
|
Automatic 2-sided Scanning |
|
*1
Maximum 1200 × 1200 dpi scanning with the WIA driver in Windows 10 and Windows 11 (resolution up to 19200 × 19200 dpi can be selected by using the scanner utility)
Printer Specifications
Automatic 2-sided Print |
| |
Emulation |
| |
Resolution |
| |
Print Speed *1 | 1-sided Print *2 *3 |
|
2-sided Print |
| |
First Print Time *4 *5 *6 |
| |
*1
The print speed may be slower when the machine is connected by wireless LAN.
*2
The print speeds of „1-sided Print” were measured in accordance with ISO/IEC 24734.
*3
This speed is based on 1-sided printing. If your model’s default print setting is „2-sided”, change to „1-sided” for these results.
*4
Printing from Ready mode and standard tray.
*5
Length of time from when the machine is started until paper output is complete (except when the machine is turned on or when an error is fixed)
*6
This applies when printing on A4- or Letter-size paper from the standard tray. It could be longer however, depending on the paper size and the amount of print data.
Interface Specifications
USB |
|
LAN |
|
Wireless LAN |
|
NFC *5 |
|
*1
Your machine has a USB 2.0 Hi-Speed interface. The machine can also be connected to a computer that has a USB 1.1 interface.
*2
Third party USB hub devices are not supported.
*3
USB host port
*4
Use a Category 5e (or greater) network cable.
*5
When you connect an external IC card reader, use a HID class driver supported device.
Direct Print Feature Specifications
Compatibility |
|
Interface |
|
Supported Protocols and Security Features
Supported protocols and security features may differ depending the models.
Ethernet
10Base-T/100Base-TX/1000Base-T
Protocols (IPv4)
ARP, RARP, BOOTP, DHCP, APIPA (Auto IP), WINS/NetBIOS name resolution, DNS Resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, POP3, SMTP Client, IPP/IPPS, FTP Client and Server, CIFS Client, TELNET Server, SNMPv1/v2c/v3, HTTP/HTTPS server, TFTP client and server, ICMP, Web Services (Print/Scan), SNTP Client, LDAP, IMAP4, Syslog
Protocols (IPv6)
NDP, RA, DNS resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, IPP/IPPS, POP3, SMTP Client, FTP Client and Server, CIFS Client, TELNET Server, SNMPv1/v2c/v3, HTTP/HTTPS server, TFTP client and server, ICMPv6, SNTP Client, LDAP, Web Services (Print/Scan), IMAP4, Syslog
Network Security (Wired)
APOP, SMTP-AUTH, SSL/TLS (IPP, HTTP, SMTP, FTP, POP3, IMAP4, LDAP), SNMP v3 802.1x (EAP-MD5, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS), Kerberos, IPsec
Network Security (Wireless)
APOP, SMTP-AUTH, SSL/TLS (IPP, HTTP, SMTP, FTP, POP3, IMAP4, LDAP), SNMP v3, 802.1x (EAP-FAST, PEAP, EAP-TLS, EAP-TTLS), Kerberos, IPsec
Wireless Network Security
WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), WPA3-SAE (AES) (Wi-Fi Direct supports WPA2-PSK (AES) only)
Wireless Certification
Wi-Fi Certification Mark License (WPA3™ – Enterprise, Personal), Wi-Fi Protected Setup™ (WPS) Identifier Mark License, Wi-Fi CERTIFIED™ Wi-Fi Direct
Computer Requirements Specifications
Supported Operating Systems And Software Functions
For the latest supported OS, go to your model’s Supported OS page at support.brother.com/os.
Computer Platform & Operating System Version | Computer Interface | Processor | Hard Disk Space to Install *1 | ||
USB *2 | 10Base-T/100Base-TX/1000Base-T (Ethernet) | Wireless 802.11a/b/g/n | For Drivers | For Applications (including Drivers) | |
Windows Operating System | Windows 10 Home / 10 Pro / 10 Education / 10 Enterprise *3 *4 | Printing PC Fax *5 Scanning | 32 bit (x86) or 64 bit (x64) processor | 80 MB | 1.8 GB |
Windows 11 Home / 11 Pro / 11 Education / 11 Enterprise *3 *4 | 64 bit (x64) processor | ||||
Windows Server 2012 | Printing Scanning | Printing | 64 bit (x64) processor | 80 MB | |
Windows Server 2012 R2 | |||||
Windows Server 2016 | |||||
Windows Server 2019 | |||||
Windows Server 2022 | |||||
Mac Operating System *6 | macOS v11 | Printing PC-Fax (Send) *5 *7 Scanning | 64 bit processor | N/A | 500 MB |
macOS v12 | |||||
macOS v13 | |||||
Chrome OS | Printing Scanning | N/A | N/A | N/A |
*1
An Internet connection is required to install the software if the installation disc is not supplied.
*2
Third party USB ports are not supported.
*3
For WIA, 1200×1200 resolution. Brother Scanner Utility enables resolutions up to 19200 x 19200 dpi.
*4
PaperPort™ 14SE supports Windows 10 and Windows 11.
*5
PC-Fax supports black and white only.
*6
macOS Disclaimer
AirPrint capable: Printing or scanning via Mac requires using AirPrint. Mac drivers are not provided.
*7
AirPrint only.
| Nyomtatás | |
|---|---|
| Kétoldalas (duplex) nyomtatási módok | Automatikus |
| Nyomtatási technika | Lézer |
| Nyomtatás | Mono nyomtatás |
| Kétoldalas nyomtatás | Igen |
| Maximális felbontás | 1200 x 1200 DPI |
| Nyomtatási sebesség, (fekete, normál minőség, A4/US Letter) | 48 oldalak per perc |
| Kétoldalas nyomtatási sebesség (fekete, normál minőség, A4/US Letter) | 24 oldalak per perc |
| Első oldal nyomtatási ideje (fekete, normál) | 6,7 s |
| Biztonságos nyomtatás | Igen |
| Másolás | |
| Kétoldalas másolás | Nincs |
| Másolás | Mono másolás |
| Max. másolási felbontás | 1200 x 600 DPI |
| Két oldal 1 oldalra másolása funkció | Igen |
| N az 1-ben funkció (N=) | 2, 4 |
| Szkennelés | |
| Kétoldalas beolvasás | Nincs |
| Szkennelés | Színes szkennelés |
| Beolvasás optikai felbontása | 1200 x 1200 DPI |
| Szkennelés optikai felbontása (ADF) | 600 x 600 DPI |
| Beolvasás típusa | Laposágyas és ADF szkenner |
| Beolvasási technológia | CIS |
| Beolvasás eddig: | E-mail, E-mail Server, Network folder, OCR, USB |
| Beolvasási sebesség (színes) | 20 oldalak per perc |
| Bemeneti színmélység | 48 bit |
| Kimeneti színmélység | 24 bit |
| Bemeneti beolvasási árnyalás (szürkeárnyalatos) | 16 bit |
| Kimeneti szürkeárnyalatos mélység | 8 bit |
| Fax | |
| Faxolás | Nincs |
| Jellemzők | |
| Szolgálati ciklus (maximum) | 5000 lap per hónap |
| Duplex funkciók | Nyomtatás |
| Nyomtatópatronok száma | 1 |
| Nyomtatási színek | Fekete |
| Oldalleírás nyelvei | BR-Script 3, PCL 6, PDF 1.7 |
| Származási ország | Vietnám |
| Bemeneti és kimeneti kapacitás | |
| Bemeneti tálcák száma összesen | 1 |
| Teljes bemeneti kapacitás | 250 lapok |
| Teljes kimeneti kapacitás | 150 lapok |
| Többcélú tálca | Igen |
| Univerzális tálca kapacitása | 100 lapok |
| Automatikus dokumentumadagoló (ADF) | Igen |
| Automatikus dokumentumbehúzási képesség (ADF) | 50 lapok |
| Papírkezelés | |
| Maximális ISO A-sorozatú papírméret | A4 |
| Papírtálca laptípusok | Bankjegypapír, Borítékok, Cimkék, Levélpapír, Közönséges papír, Újrahasznosított papír, Vastag papír, Thicker paper, Vékony papír |
| ISO A-sorozat méretek (A0…A9) | A4, A5, A6 |
| ISO B-sorozat méretek (B0…B9) | B5 |
| Nem ISO szabvány szerinti médiaméretek | Jogi |
| JIS B-sorozat méretek (B0...B9) | B5 |
| Boríték méretek | C5, Com-10, DL, Monarch |
| Egyéni adathordozó- szélesség | 105 - 215,9 mm |
| Egyéni adathordozó- hossz | 147,3 - 355,6 mm |
| Csatlakozók és csatlakozási felületek | |
| Közvetlen nyomtatás | Igen |
| USB port | Igen |
| USB 2.0 portok száma | 2 |
| Hálózat | |
| Wi-Fi | Igen |
| Ethernet/LAN csatlakozás | Igen |
| Kábelezési technológia | 10/100/1000Base-T(X) |
| Ethernet LAN adatátviteli sebességek | 10,100,1000 Mbit/s |
| Wi-Fi szabványok | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi Direct | Igen |
| Biztonsági algoritmusok | WPA2-AES, 64-bit WEP, WPA2-PSK, 128-bit WEP, WPA3-SAE, WPA-AES, WPA-PSK, WPA-TKIP |
| Támogatott hálózati protokollok (IPv4) | ARP, RARP, BOOTP, DHCP, APIPA(Auto IP), risoluzione dei nomi WINS/NetBIOS, Resolver DNS, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/ Port9100, Client SMTP, IPP/ IPPS, Client e Server FTP, Client CIFS , Server TELNET, SNMPv1/v2c/v3, server HTTP/HTTPS, client e server TFTP, ICMP, Servizi web (Stampa/ Scansione), Client SNTP, LDAP, Syslog |
| Támogatott hálózati protokollok (IPv6) | NDP, RA, Resolver DNS, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, IPP/IPPS, Client SMTP, Client e Server FTP, Client CIFS, Server TELNET, server SNMPv1/v2c HTTP/HTTPS, client e server TFTP, ICMPv6, Client SNTP, LDAP, Servizi web (Stampa/Scansione), Syslog |
| Mobil nyomtatási technológiák | Apple AirPrint, Mopria Print Service |
| Teljesítmény | |
| Belső memória | 512 MB |
| Beépített processzor | Igen |
| Processszorcsalád | Kar |
| Processzor frekvencia | 1200 MHz |
| Processzormagok | 2 |
| Kialakítás | |
| Termék színe | Fehér |
| Piaci pozicionálás | Üzleti |
| Beépített kijelző | Igen |
| Megjelenítő | LCD |
| Képernyő méret | 8,89 cm (3.5") |
| Vezérlőtípus | Érintős |
| Színes kijelző | Igen |
| Tápellátás | |
| Energiafogyasztás (nyomtatás közben) | 670 W |
| Áramfogyasztás (másoláskor) | 680 W |
| Energiafogyasztás (készenléti állapotban) | 31 W |
| Áramfogyasztás (alvó üzemmód) | 5,9 W |
| Áramfogyasztás (kikapcsolva) | 0,05 W |
| Energy Star jellemző energiafogyasztási (TEC) minősítés | 0,63 kilowattóra per hét |
| AC bemeneti feszültség | 220 - 240 V |
| AC bemeneti frekvencia | 50/60 Hz |
| Tömeg és méretek | |
| Szélesség | 497 mm |
| Mélység | 580 mm |
| Magasság | 549 mm |
| Tömeg | 16,7 kg |
| Csomagolási adatok | |
| Csomagolás szélessége | 549 mm |
| Csomagolás mélysége | 497 mm |
| Csomagolás magassága | 580 mm |
| Csomagolás tömege | 20 kg |
| Logisztikai adatok | |
| Raklap magassága | 19,1 cm |
| Raklap súlya | 258,3 kg |
| Raklaponkénti kartonok mennyisége | 12 db |
| Rétegek száma raklaponként | 3 db |
| Raklaponkénti mennyiség | 12 db |
| Műszaki adatok | |
| Kartonok száma raklapra helyezett rétegenként | 4 db |
| Raklap típusa | 1200 x 1000 mm |
| További jellemzők | |
| Pótalkatrészek megőrzése | 5 év(ek) |
Hasonló termékek
-
Xerox

XEROX Lézer MFP NY/M/S/F Workcentre B115V_NI A4,ff,20lap/perc,USB/LAN/WIFI,150 lapos adagoló,128MB, 600×600 dpi
68 990 Ft RaktáronKosárba -
Brother


BROTHER Lézer MFP NY/M/S DCP-L8630CDW, A4, színes, 31 lap/perc, WiFi/LAN/USB, ADF, duplex, 2400x600dpi, 512MB
226 990 Ft RaktáronKosárba -
Xerox


XEROX Színes lézernyomtató C410, A4, 40 l/p, duplex, 125.000 ny/hó, 1GB, LAN/USB/WiFi, 1200x1200dpi, 250 lap adagoló
140 990 Ft RaktáronKosárba -
Brother


BROTHER Lézer MFP NY/M/S/F MFC-L8730CDW, A4, színes, 31 lap/perc, WiFi/LAN/USB, DADF, full duplex, 2400x600dpi, 512MB
233 990 Ft RaktáronKosárba -
Brother


BROTHER LED MFP NY/M/S/F MFC-L8390CDW, A4, színes, 30 lap/perc, WiFi/LAN/USB, DADF, full duplex, 600x600dpi, 512MB
212 990 Ft RaktáronKosárba
