Chieftec 750W BDK-750FC táp BOX

Leírás

Weight (without/with package) 1.7kg / 2.24kg
AC Input 100-240V / 10.0A
Frequency 47 – 63Hz
+5V 20.0A
+3,3V 20.0A
+5V & +3,3V combined 120W
+12V1 62.5A
+12V2 –
+12V1, +12V2 combined 750W
P.F. >0,9
-12V 0,3A / 3,6W
+5VSB 2,5A / 12,5W
Maximum Power 750W

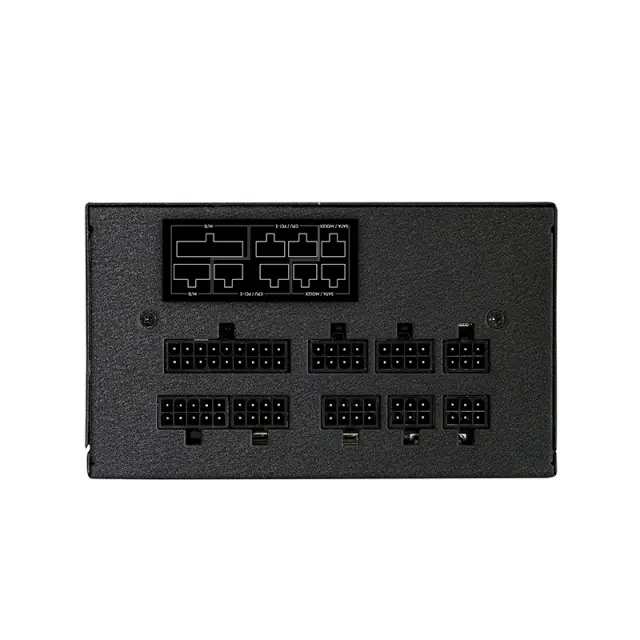

Connectors
20+4 PIN ATX 1
8 PIN EPS(4+4) 2
8 PIN PCIe (6+2) 4
SATA 6
MOLEX/FLOPPY 3/1

Cable length (mm)
20+4 PIN ATX 650
8 PIN EPS(4+4) 600/150
8 PIN PCIe (6+2) 2x 500/150
SATA 2x 500/150/150
MOLEX/FLOPPY 500/150/150/150

Features
ATX12V Version ATX 12V 2.3
Efficiency 80 PLUS® Bronze
Dimension (DxWxH) 140mm x 150mm x 86mm
PFC Active PFC (0,9)
Fan 120mm FDB silent fan
Security AFC (Automatic Fan speed Control)
OCP (Overcurrent protection)
OPP (Overload protection)
OTP (Over-temperature protection)
OVP (Overvoltage protection)
SCP (Short-circuit protection)
SIP (Surge & Inrush Protection)
UVP (Under Voltage protection)
