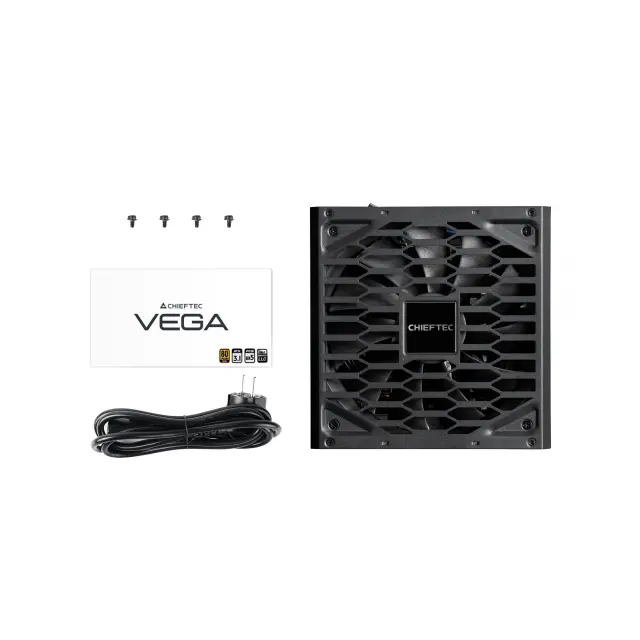

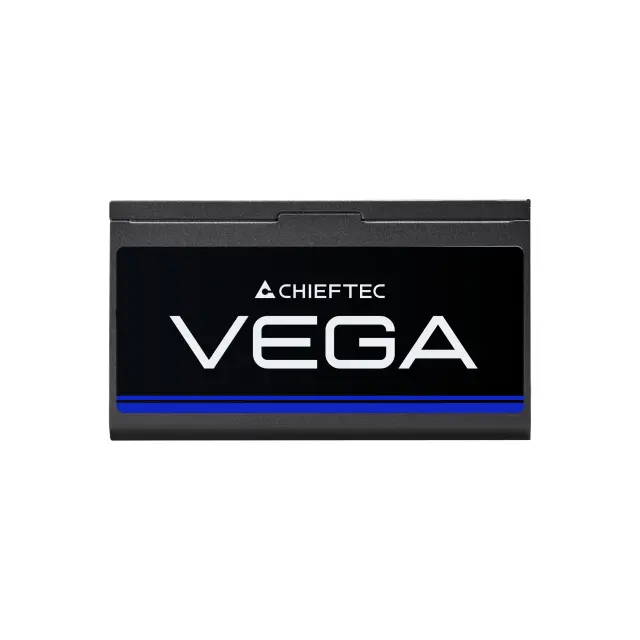

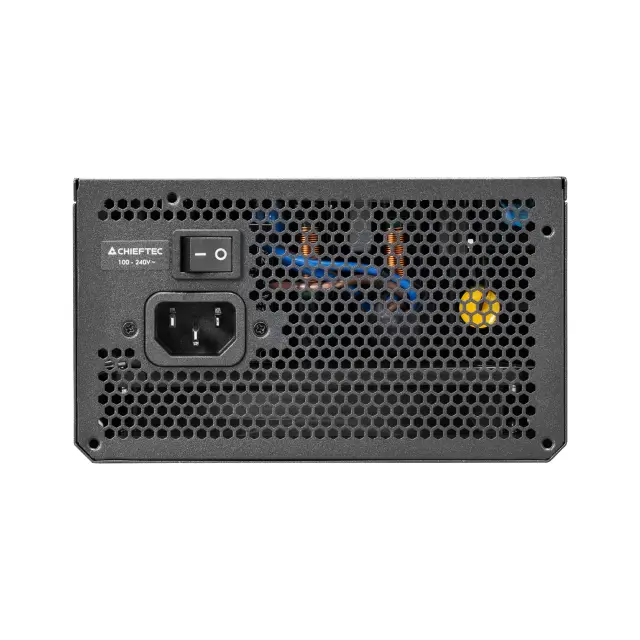

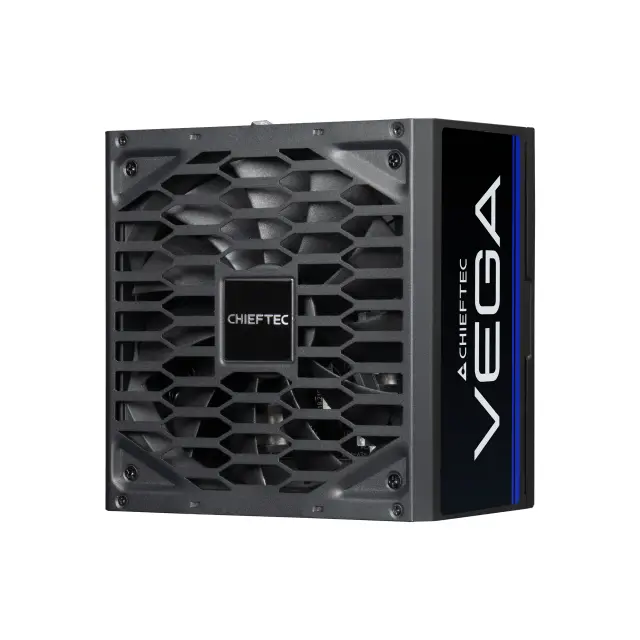

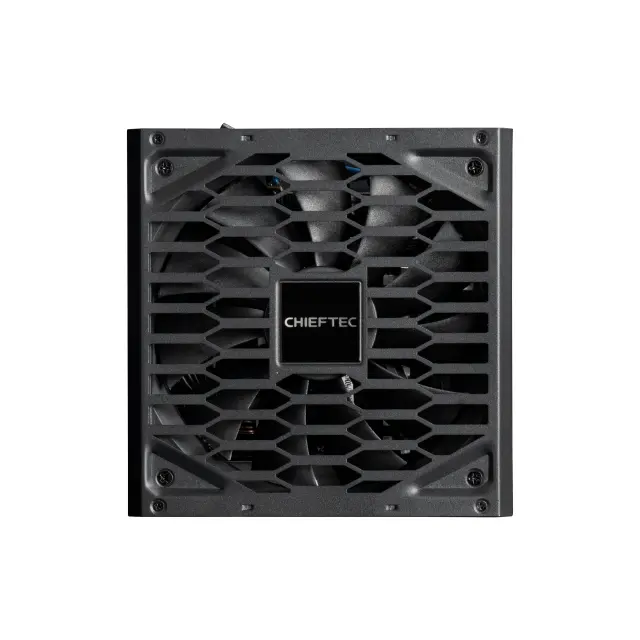

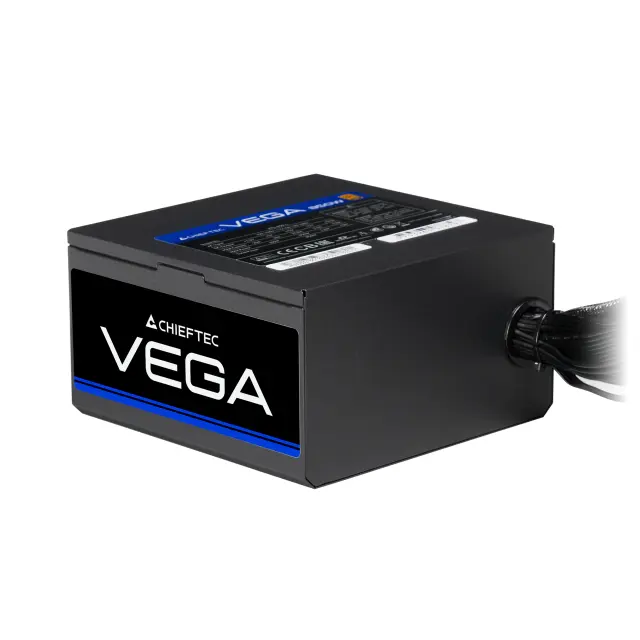

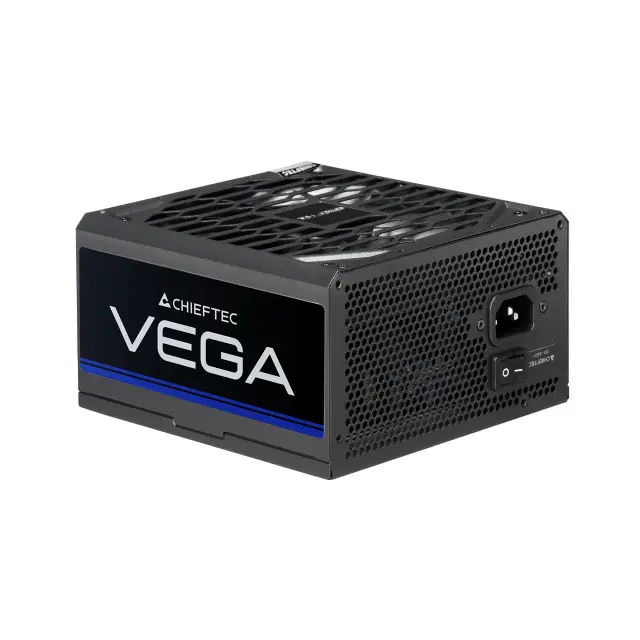

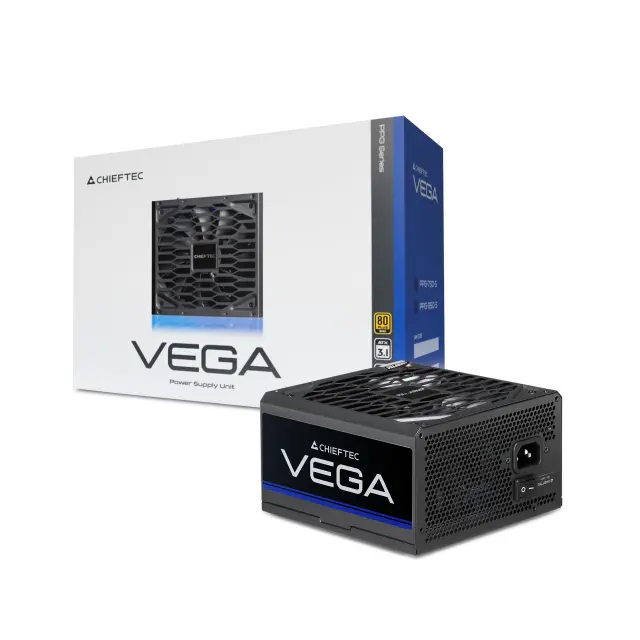

Chieftec 750W PPG-750-S táp BOX

Leírás

Weight (without/with package) 1.96kg / 2.46kg
AC Input 100-240V~ / 10-5A
Frequency 50 – 60Hz
+5V 20A
+3,3V 20A
+5V & +3,3V combined 100W
+12V1 62.5A
+12V2 –
+12V1, +12V2 combined 750W
P.F. >0.9
-12V 0.3A / 3.6W
+5VSB 3.0A / 15W
Maximum Power 750W

Connectors
20+4 PIN ATX 1
8 PIN EPS (8/4+4) 1/1
8 PIN PCIe (6+2) 4
16 PIN PCIe GEN5 1
SATA 6
MOLEX 3

Cable length (mm)
20+4 PIN ATX 600
8 PIN EPS (4+4) 650/150
8 PIN PCIe (6+2) 2 x 600/150
16 PIN PCIe GEN5 600
SATA 2 x 400/150/150
MOLEX 400/150/150

Features
ATX12V Version ATX 12V 3.1
Efficiency 80Plus Gold
Dimension (DxWxH) 150 mm x 150 mm x 85 mm
PFC Active PFC (0.9)
Fan 135mm FDB fan
Security AFC (Automatic Fan Speed Control)
OPP (Overload Protection)
OTP (Over Temperature Protection)
OVP (Overvoltage Protection)
SCP (Short-Circuit Protection)
SIP (Surge & Inrush Protection)
UVP (Under Voltage Protection)
OCP (Over-Current Protection)
