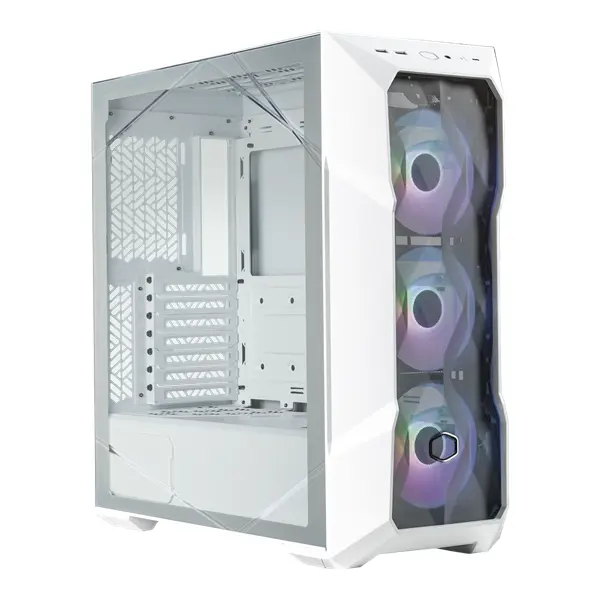

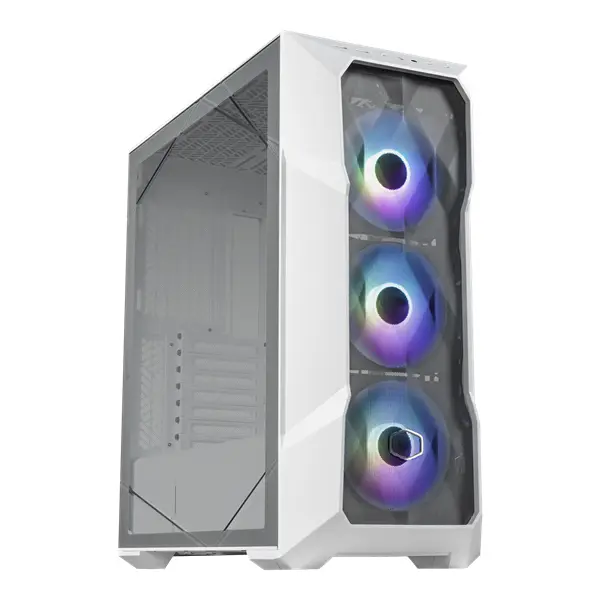

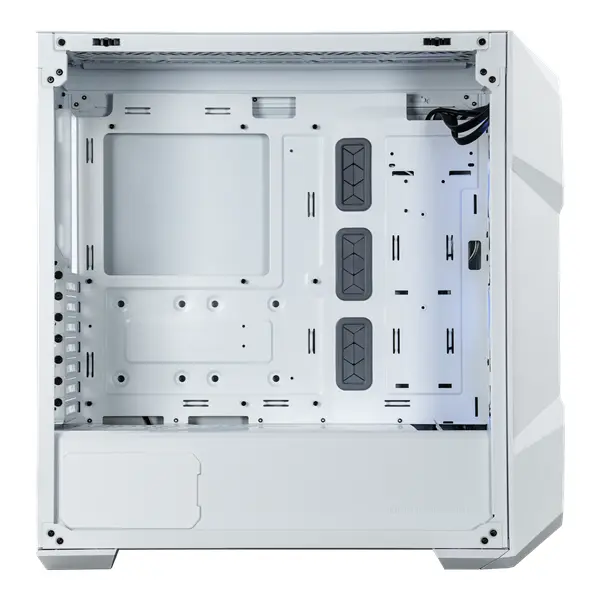

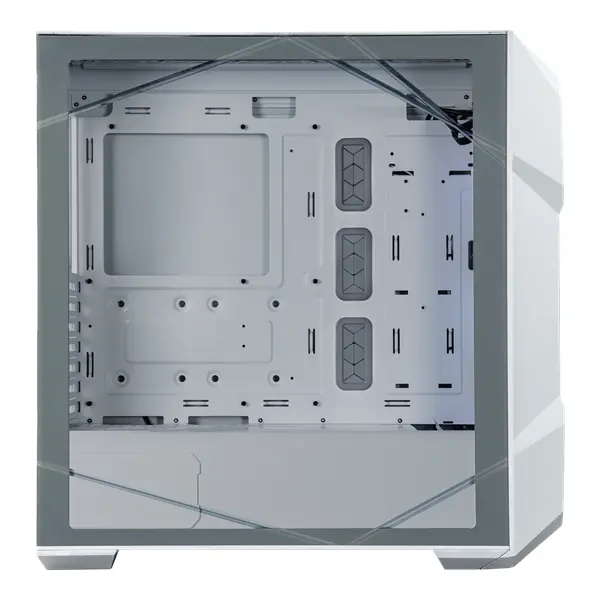

| Model Number |
TD500V2-KGNN-S00, TD500V2-WGNN-S00 |
|
| Exterior Color |
Black, White |
|
| Materials – Exterior |
Steel, Mesh, Plastic |
|

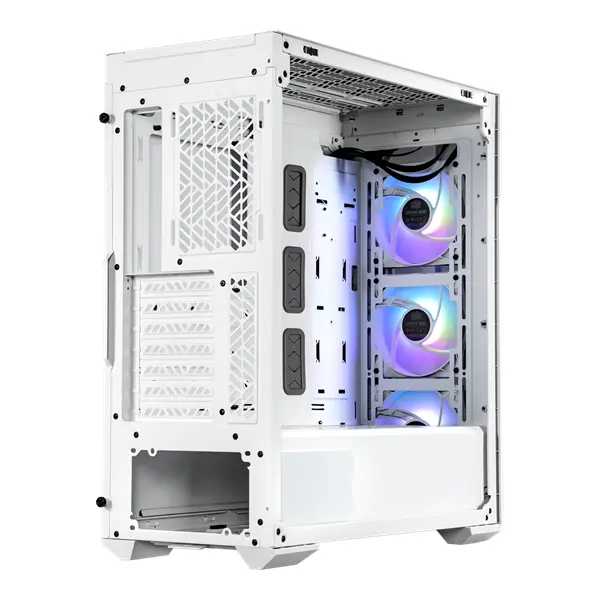

| Materials – Left Side Panel |
Tempered Glass |
|
| Dimensions (L x W x H) |
499 x 210 x 500mm (incl. Protrusions), 430 x 210 x 477mm (excl. Protrusions) |
|
| Volume |
50L (excl. Protrusions) |
|
| Motherboard Support |
Mini ITX, Micro ATX, ATX, SSI CEB, E-ATX*, (*up to 12" x 10.7" motherboards, may impact cable management feature) |
|
|
|
|
|
|
|

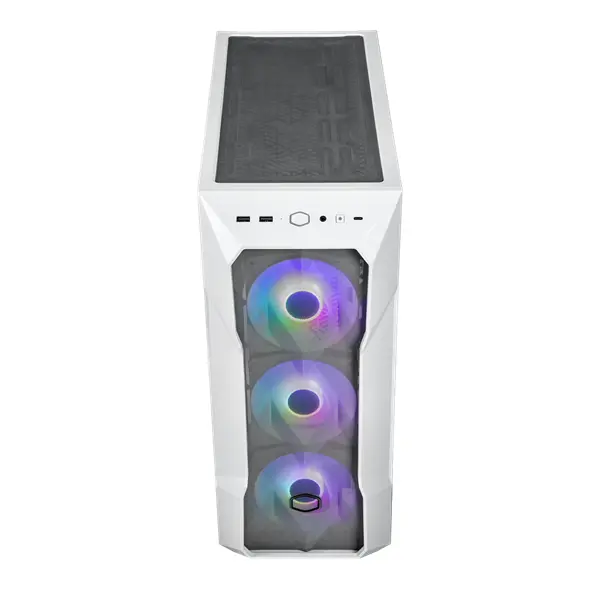

| I/O Panel – USB Ports |
2x USB 3.2 Gen 1, 1x USB 3.2 Gen 2 Type C |
|
| I/O Panel – Audio In / Out |
1x Audio Jack |
|
| I/O Panel – Other |
1x ARGB Fan Hub |
|

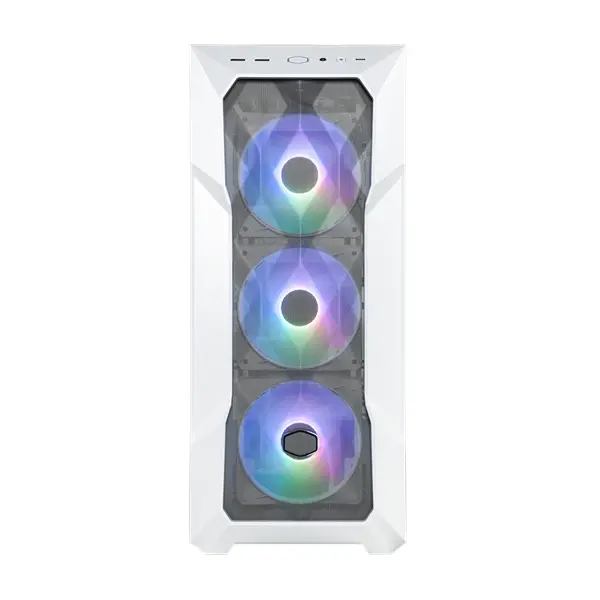

| Pre-installed Fans – Front |
3x 120mm CF120 ARGB |
|
| Fan Support – Top |
3x 120mm, 2x 140mm |
|
| Fan Support – Front |
3x 120mm, 2x 140mm |
|

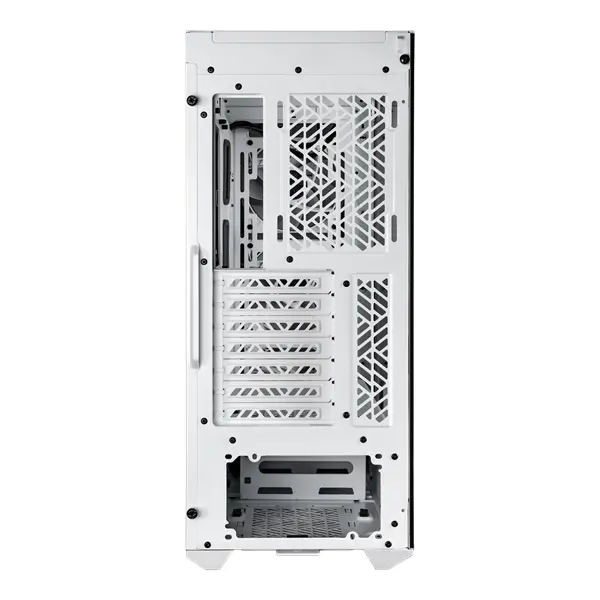

| Fan Support – Rear |
1x 120mm |
|
| Radiator Support – Top |
120mm, 140mm, 240mm, 280mm, 360mm, (recommended maximum thickness -55mm) |
|
| Radiator Support – Front |
120mm, 140mm, 240mm, 280mm, 360mm |
|
| Radiator Support – Rear |
120mm |
|
| Clearance – CPU Cooler |
165mm / 6.49" |
|
| Clearance – PSU |
200mm, (Recommended up to 170mm) |
|
| Clearance – GFX |
410mm / 16.14" |
|
| Cable Routing – Behind Motherboard Tray |
19mm / 0.74" |
|
| Dust Filters |
Front, Top, Bottom |
|
| Power Supply Support |
Bottom Mount, ATX |
|
|
|
|
|
|
|
