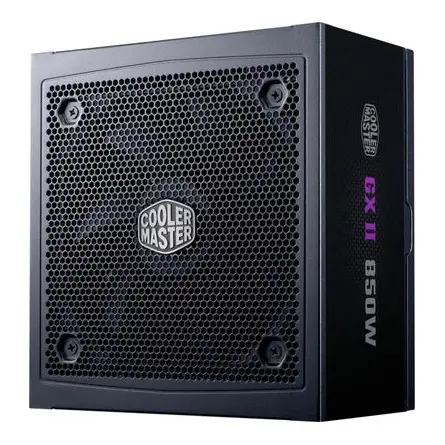

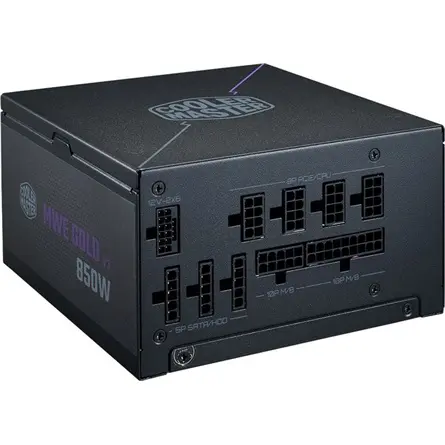

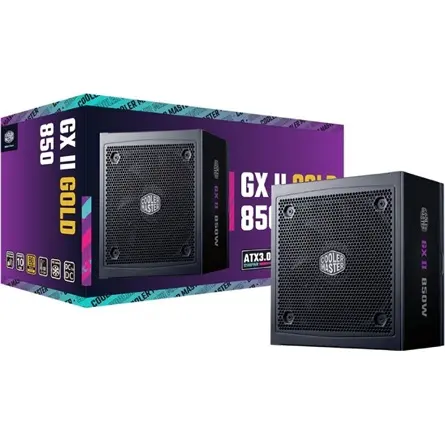

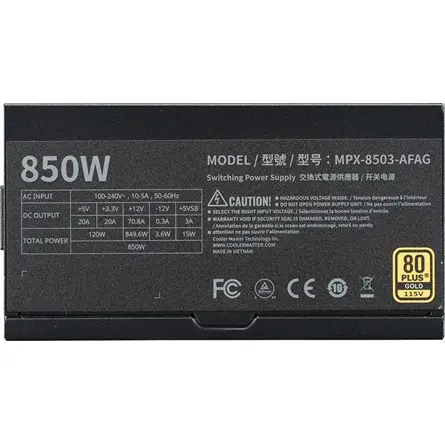

Cooler Master MPX-8503-AFAG-2EBEU 850W táp

Leírás

Garancia: 5 Év

Model850: MPX-8503-AFAG-2***

ATX VersionATX 12V Ver. 3.1

PFCActive PFC

Input Voltage100-240V

Input Current10-5A

Input Frequency50-60Hz

Dimensions (L x W x H)160 x 150 x 86 mm

Fan Size120mm

Fan BearingHDB

Fan Speed2500 RPM

Efficiency?90% @ Typical Load

80 PLUS Rating80 PLUS Gold

ErP 2014 Lot 3Yes

Operating Temperature0-40°C

Power Good Signal100 – 150 ms

Hold Up Time?16ms at 80% Load

MTBF>100,000 Hours

ProtectionsOPP/ OVP/ OTP/ OCP/ SCP/ UVP/ Surge & Inrush Protection

RegulatorycTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (Based on region’s requests.)

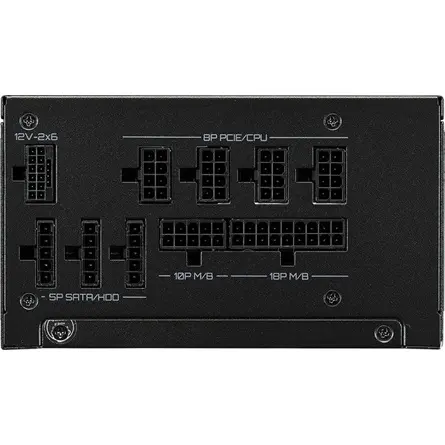

ATX 24 Pin Connectors1

EPS 4+4 Pin Connectors1

EPS 8 Pin Connector1

SATA & Peripheral 4 Pin Connectors6 (SATA) / 2 (Peripheral)

PCI-e 6+2 Pin Connectors4

12V-2×6 Connectors1

SeriesMWE Gold Series

CategoryAbove 750W

ModularFully Modular

80 Plus EfficiencyGold

Form FactorATX

Watts850W
