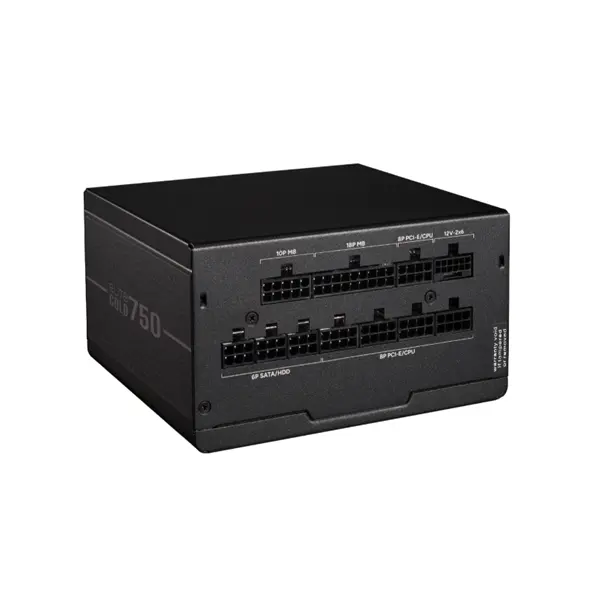

COOLER MASTER Tápegység ELITE GOLD 750W 80+ Gold moduláris Gen 5.1 ATX 3.1

Leírás

Garancia: 5 Év

• Product NameELITE GOLD 750
• ModelMPX-7505-AFAG
• ATX VersionATX 12V Ver. 3.1
• PFCActive PFC
• Input Voltage100-240V
• Input Current5 ~ 10A
• Input Frequency50-60Hz
• Dimensions (L x W x H)140 x 150 x 86 mm
• Fan Size120mm
• Fan BearingRifle bearing
• Efficiency≥90% @ Typical Load
• 80 PLUS Rating80 PLUS Gold
• ErP 2014 Lot 3Yes
• Operating Temperature0-40°C
• Power Good Signal100 – 150 ms
• Hold Up Time≥ 11ms @ 100% Load
• MTBF>100,000 hours? @ 25? ambient
• ProtectionsUVP / OVP / OPP / OTP / SCP
• RegulatorycTUV us, CB, CE, FCC, BSMI, CCC, RCM, UKCA, BIS, RoHS2.0
• ATX 24 Pin Connectorsx1 = 1 (550mm)
• EPS 4+4 Pin / EPS 8 Pin Connectorsx2 = 1 (600+120mm)
• SATA & Peripheral 4 Pin ConnectorsX4(s) + x2(p) = 2 [400(s)+120(s)+120(p) mm]
• PCI-e 6+2 Pin Connectorsx2 = 1 (500+120mm)
• 12+4 Pin Connectorsx1 = 1 (650mm)
• SeriesElite Series
• Form FactorATX
• Watts750W
• ModularFully Modular
• 80 Plus EfficiencyGold
