Huawei eKit

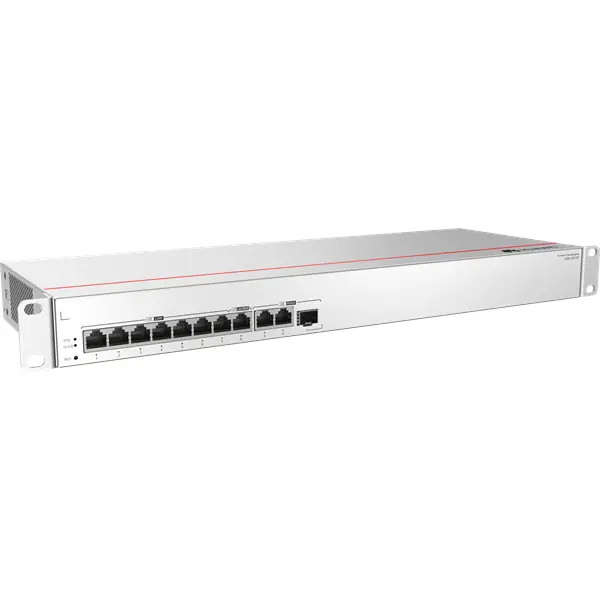

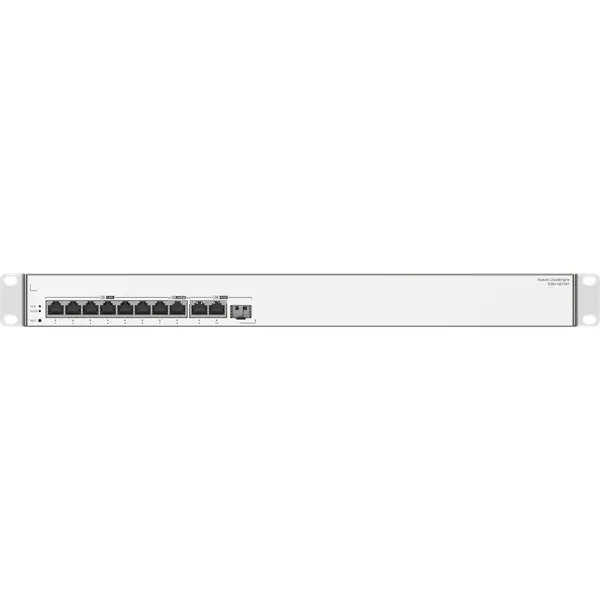

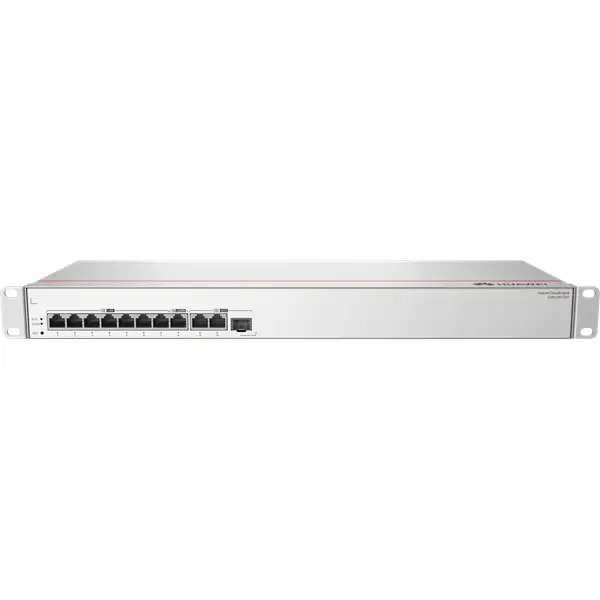

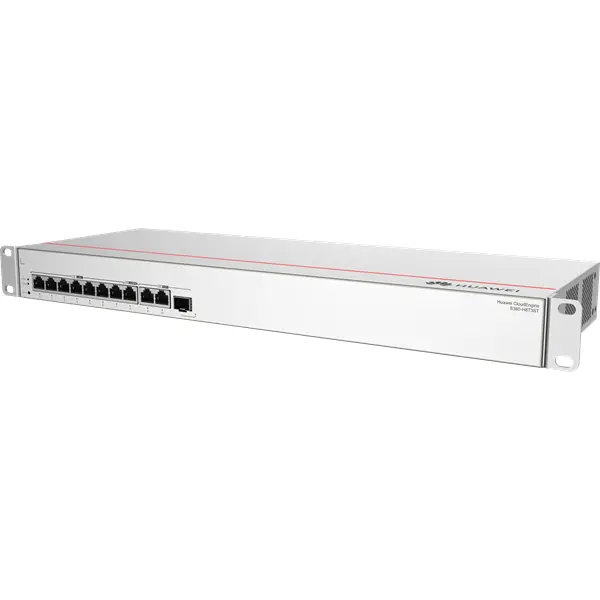

Huawei eKit Engine Gateway 2x1000Mbps (WAN), 1x1GE SFP (WAN) + 8x1000Mbps (LAN), Rackes – S380-H8T3ST
Cikkszám: US76246·Gyártói cikkszám: 98012181·EAN: 6901443425662
109 990 Ft
Bruttó ár, az ÁFÁ-t tartalmazza
Raktáron (1+ db)Várható kézbesítés, ha most megrendeli: okt. 21–22.
- Házhoz szállításGLS vagy MPL futárral, 1 790 Ft
- Személyes átvételdíjmentesen
- Garanciaminden termékre, számlával
- 14 napos elállási jogindoklás nélkül
Az Ön jogszabályi szavatossági jogai
Leírás
Garancia: 3 Év
| First supported version | V600R022C10 |
| Integrated fixed device | Y |
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 160.0 mm (1.72 in. x 17.4 in. x 6.3 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 166.7 mm (1.72 in. x 17.4 in. x 6.56 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 550.0 mm x 260.0 mm (3.54 in. x 21.65 in. x 10.24 in.) |
| Chassis height [U] | 1 |
| Installation type | Rack mounting,Desk mounting,Wall mounting |
| Weight without packaging [kg(lb)] | 1.6 (3.53) |
| Weight with packaging [kg(lb)] | 2.1 (4.63) |
| Typical power consumption [W] | 11.25 |
| Typical heat dissipation [BTU/hour] | 38.4 |
| Maximum power consumption [W] | 11.5 |
| Maximum heat dissipation [BTU/hour] | 39.2 |
| Static power consumption [W] | 6.49 |
| 100% power consumption [W] | 11.49 |
| MTBF [year] | 63.71 |
| MTTR [hour] | 2 |
| Availability | >0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | Noise-free (no fans), < 30 |
| Noise at high temperature (acoustic power) [dB(A)] | Noise-free (no fans), < 30 |
| Noise at normal temperature (acoustic pressure) [dB(A)] | Noise-free (no fans), < 20 |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 0 |
| Maximum number of physical ports on the entire device | 11 |
| Maximum number of 100GE ports | 0 |
| Maximum number of 40GE ports | 0 |
| Maximum number of 25GE ports | 0 |
| Maximum number of 10GE ports | 0 |
| Maximum number of 5GE ports | 0 |
| Maximum number of 2.5GE ports | 0 |
| Maximum number of GE ports | 11 |
| Maximum number of FE ports | 10 |
| Dedicated stack port | Not supported |
| Redundant power supply | Not supported |
| Long-term operating temperature [°C(°F)] | 0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Restriction on the operating temperature variation rate [°C(°F)] | When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH (non-condensing) |
| Long-term operating altitude [m(ft.)] | 0–5000 m (0–16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | AC built-in |
| Rated input voltage [V] | AC input: 100–240 V AC; 50/60 Hz |
| Input voltage range [V] | AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz |
| Maximum input current [A] | 0.8 A |
| CPU | Quad-core, 800 MHz |
| Memory | DDR4: 1 GB |
| Flash memory | NAND Flash: 512 MB |
| Storage | – |
| Console port | Not supported |
| Eth Management port | LAN port |
| USB | Not supported |
| Hardware real-time power detection | Not supported |
| Dying gasp | Not supported |
| RTC | Not supported |
| RPS input | Not supported |
| Complete device sleeping | Not supported |
| Service port surge protection [kV] | Common mode: ±4 kV |
| Power supply surge protection [kV] | Power adapter: ±6 kV in differential mode and ±6 kV in common mode |
| Ingress protection level (dustproof/waterproof) | IP20 |
| Types of fans | None |
| Heat dissipation mode | Natural heat dissipation |
| Airflow direction | – |
| PoE | Not supported |
| Maximum PoE power consumption [W] | – |
| PoE+ power interfaces | – |
| PoE++ power interfaces | – |
| Full load PoE power consumption 15.4W (802.3af) | – |
| Full load PoE power consumption 30W (802.3at) | – |
| Full load PoE++ power consumption 60W (802.3bt) | – |
| Full load PoE++ power consumption 90W (802.3bt) | – |
| Certification | EMC certification Safety certification Manufacturing certification |
