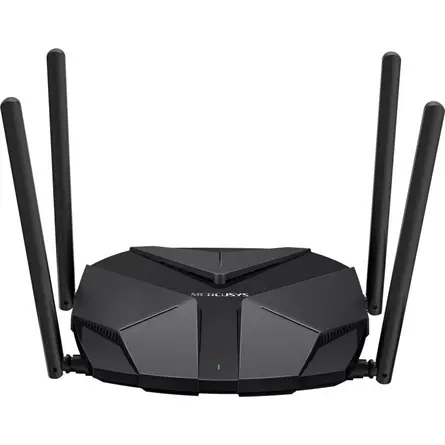

Mercusys MR85X WiFi router AX3000

Leírás

WirelessWi-Fi Class
AX3000

Wi-Fi (2.4 GHz)
574Mbps

Wi-Fi ( 5 GHz)
2402Mbps

Wireless Standards
802.11ax/ac/a/b/g/n

Max Channel Width
160MHz

Reception Sensitivity
5G:
11a 6Mbps: -95dBm
11a 54Mbps:-76.5dBm
11n HT20 MCS7:-76dBm
11n HT40 MCS7:-73dBm
11ac VHT20 MCS8:-71.5dBm
11ac VHT40 MCS9:-67dBm
11ac VHT80 MCS9:-63.5dBm
11ax HE20 MCS11:-64.5dBm
11ax HE40 MCS11:-63dBm
11ax HE80 MCS11:-58.5dBm
11ax HE160 MCS11:-56dBm

2.4G:
11g 6Mbps : -97dBm
11g 54Mbps: -79dBm
11n HT20 MCS7:-78dBm
11n HT40 MCS7:-75dBm
11ax HE20 MCS11:-66.5dBm
11ax HE40 MCS11:-65.5dBm

Max Wi-Fi Modulation
1024 QAM

Wireless Security
WPA/WPA2/WPA3

Wireless Functions
Guest Network
Smart Connect
Wireless Schedule
WPS
AP Isolation
Airtime Fairness

HardwareDimensions
209 × 171.7 × 42.4 mm
(8.2 × 6.8 × 1.7 in)

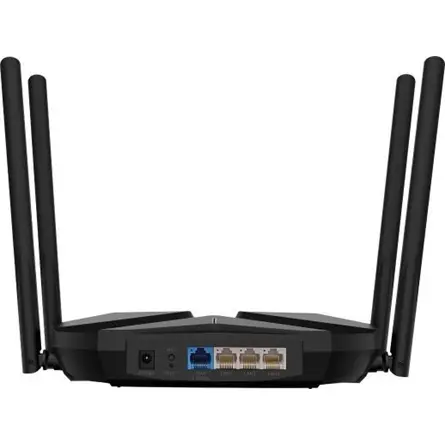

Interfaces
1× 2.5G WAN
3× GE LAN

Antenna
2× 5G External Antennas(5dBi)
1× 2.4G & 5G External Antenna(2.4G: 3dBi, 5G:5dBi)
1× 2.4G External Antenna(5dBi)

Button
1× WPS Button
1× Reset Button

Installation
Desktop
Wall-mount

LED
1× SYS

Retail Package Dimension
359 × 274 × 60mm

Units per Carton
10

Carton Dimension
560 × 370 × 310mm

IPTV
IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN

Power
Input:100~240V, 50/60Hz
Output: 12V/1.5A

SoftwareOperation Mode
Router/AP mode

WAN Mode
Dynamic IP
Static IP
PPPoE
PPTP
L2TP

NAT Forwarding
Port Forwarding
Port Triggering
DMZ
UPnP

Protocols
IPv4
IPv6

Guest Network
2.4G Guest Network
5G Guest Network

Parental Controls
Profile Settings
Time Control
Pause the Internet
Website Filtering

DHCP
Address Reservation
DHCP Client List
Server

DDNS
MERCUSYS
NO-IP
DynDNS

VPN Server
OpenVPN
PPTP
L2TP/IPSec
WireGuard

VPN Client
OpenVPN
PPTP
L2TP/IPSec
WireGuard

Easymesh
Easymesh Compatible

QoS
Time Settings
Priority Control

Security
SPI Firewall
Access Control
IP & MAC Binding

Kill Switch
Support

ISP Feature
CWMP
ISP Preset(Agile Config)
Superadmin

System
Firmware Upgrade
Backup and Restore
Administration
System Log
Time & Language Settings
Reboot

Diagnostics
Ping
Traceroute

LED Management
LED Control
Night Mode

Device Management
MERCUSYS APP
Webpage

Cloud
MERCUSYS ID

Language
Bulgarian
Czech
Danish
German
English
Spanish
Finnish
French
Hungarian
Italian
Japanese
Korean
Dutch
Norwegian
Polish
Portuguese
Portuguese – Brazil
Romanian
Russian
Slovak
Swedish
Turkish
Ukrainian
Vietnamese
Chinese – Taiwan

Advanced Features
OFDMA
MU-MIMO
BSS Color
Beamforming

OthersNetwork Services Enabled by Default Web Server Manage and configure device through web (HTTP/HTTPS) • Port: 80/443 Protocol: TCP
DNS DNS • Port: 53 Protocol: TCP & UDP
DHCP Server IP address assignment (DHCP) • Port: 67 Protocol: UDP
App management Manage and configure device through app • Port: 20001 Protocol: TCP • Port: 30001 Protocol: TCP • Port: 20002 Protocol: UDP Network Services Enabled by Default
Web Server

Manage and configure device through web (HTTP/HTTPS)

• Port: 80/443; Protocol: TCP

DHCP Server

IP address assignment (DHCP)

• Port: 67; Protocol: UDP

DNS

DNS

• Port: 53; Protocol: TCP & UDP

App management

Manage and configure device through app

• Port: 20001; Protocol: TCP

• Port: 20002; Protocol: UDP

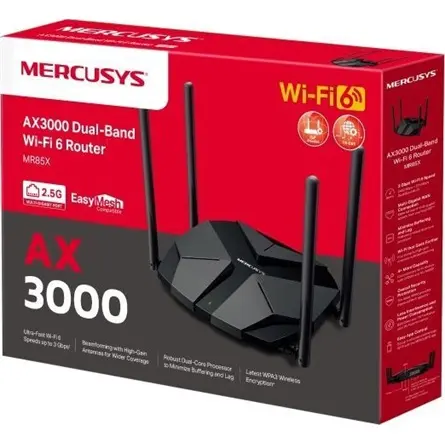

Package Contents
• AX3000 Wi-Fi 6 Router MR85X
• Power Adapter
• Quick Installation Guide
• RJ45 Ethernet Cable

Environment
• Operating Temperature: 0°C~40°C (32°F~104°F)
• Operating Humidity: 10%~90% Non-Condensing
• Storage Humidity: 5%~90% Non-Condensing
