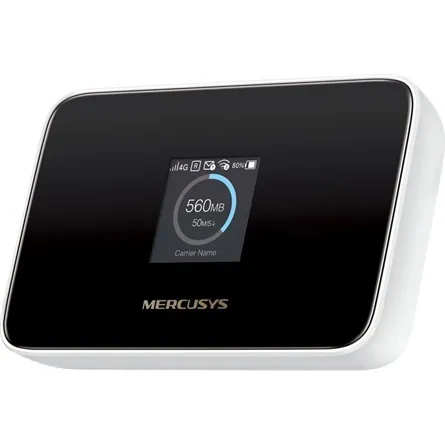

Mercusys MT115 AX300 Wi-Fi 4G/LTE router

Leírás

Garancia: 3 Év

Network Type


Support 4G/3G network

FDD-LTE: B1/B3/B5/B7/B8/B20/B28(2100/1800/850/2600/900/800/700 MHz)

TDD-LTE: B38/B40 (2600/2300 ΜHz)

HSPA+/UMTS: B1/B5/B8 (2100/850/900 ΜHz)


Wireless Standards


IEEE 802.11ax/b/g/n 2.4 GHz


Frequency


2.4 GHz


Reception Sensitivity


11b 11Mbps: -87.5dBm
11g 54Mbps: -74dBm
11n HT20 MCS7: -71dBm
11n HT40 MCS7: -69dBm


Transmission Power


<20dBm


Wireless Security


Support WPA-PSK/WPA2-PSK,Wireless MAC Filtering, Enable/Disable SSID Broadcast

Wireless

Dimensions


111.1 × 71.6 × 24.2 mm

(4.37 × 2.82 × 0.95 in)

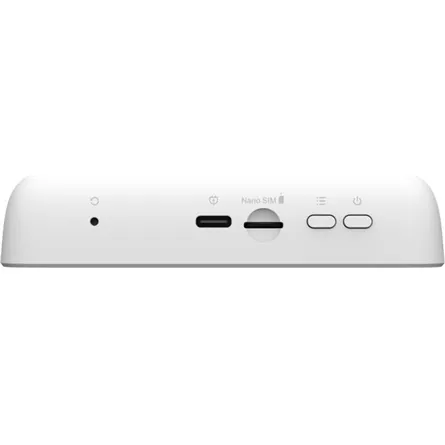

Interfaces


1 USB-C port for power supply
1 Nano SIM card slot


Button


Power Button, Reset Button, Menu Button


External Power Supply


5V/1A


Antenna Type


Internal Antennas


Data Rates


4G LTE Speed: DL: 150 Mbps, UL: 50 Mbps

WiFi Speed: 287 Mbps on 2.4 GHz


Screen Display


1.44 inch TFT

Hardware

DHCP


Server, Client, DHCP Client List

Software

Network Services Enabled by Default


Web Server

Manage and configure device through web

• Port: 80/443   Protocol: HTTP/HTTPS

DHCP/DHCPv6

IP address assignment

• Port: 67/547   Protocol: UDP

DNS

DNS

• Port: 53   Protocol: UDP

Dropbear

Manage and configure device through app

• Port: 20001   Protocol: SSH

App management

Manage and configure device through app

• Port: 20002   Protocol: TMP


Package Contents


Mobile Wi-Fi MT115
USB-C Cable
Quick Installation Guide


Environment


Operating Temperature: 0°C~35°C (32°F ~95°F)
Storage Temperature: -10°C~40°C (14°F ~104°F)
Operating Humidity: 0%~75% non-condensing
Storage Humidity: 0%~65% non-condensing


System Requirements


Windows 11/10/8/7, Mac OS, Android, iOS, Windows Phone
