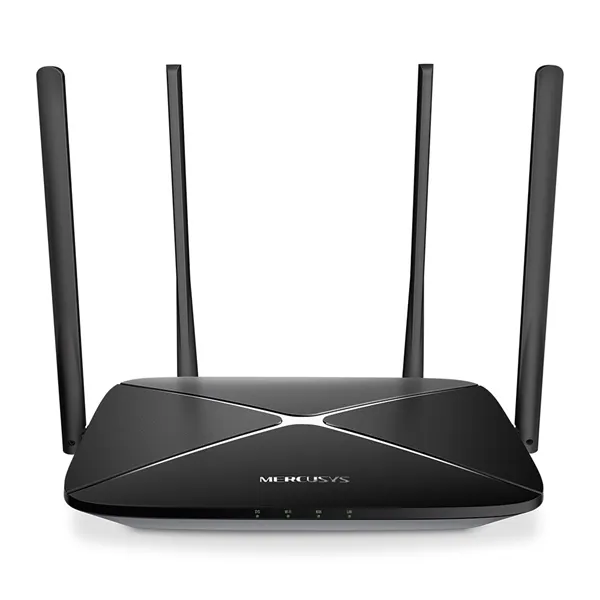

Mercusys Router WiFi AC1300 – AC12G (400Mbps 2,4GHz + 867Mbps 5GHz; 4port 1Gbps, WPA3)

Leírás

Antenna Type
4 Fixed Omni-Directional Antennas

Frequency
2.4 – 2.5GHz, 5.15 – 5.35GHz

Reception Sensitivity
5 GHz
• 11a 6M: -92 dBm
• 11a 54M: -75 dBm
• 11ac 20M MCS8: -70 dBm
• 11ac 40M MCS9: -64 dBm
• 11ac 80M MCS9: -60 dBm

2.4 GHz
• 11g 6M: -95 dBm
• 11g 54M: -77 dBm
• 11n 20M MCS7: -74 dBm
• 11n 40M MCS7: -71 dBm

Dimensions (W X D X H)
222 × 140 × 32 mm

External Power Supply
9 VDC/ 0.85 A

Signal Rate
300 Mbps at 2.4 GHz, 867 Mbps at 5 GHz

Button
WPS/Reset Button

Wireless Standards
IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz

Interfaces
1 Gigabit WAN Port
3 Gigabit LAN Ports

Package Contents
• AC1200 Wireless Dual Band Gigabit Router
(AC12G)
• Power Adapter
• Ethernet Cable
• Quick Installation Guide

Environment
• Operating Temperature: 0°C~40°C (32°F~104°F)
• Storage Temperature: -40°C~70°C (-40°F~158°F)
• Operating Humidity: 10%~90% Non-Condensing
• Storage Humidity: 5%~90% Non-Condensing

Transmission Power
<20dBm (EIRP)

Wireless Security
WPA-PSK / WPA2-PSK

Wireless Functions
Enable/Disable Wireless Radio, Wireless Statistics

WAN Type
Dynamic IP/Static IP/PPPoE/PPTP/L2TP

Management
Access Control
Local Management
Remote Management

DHCP
Server

Port Forwarding
Virtual Server, UPnP, DMZ

Firewall Security
IP and MAC Address Binding

Guest Network
2.4GHz Guest Network, 5GHz Guest Network

Protocols
IPv4, IPv6

Dynamic DNS
NO-IP, DynDNS
