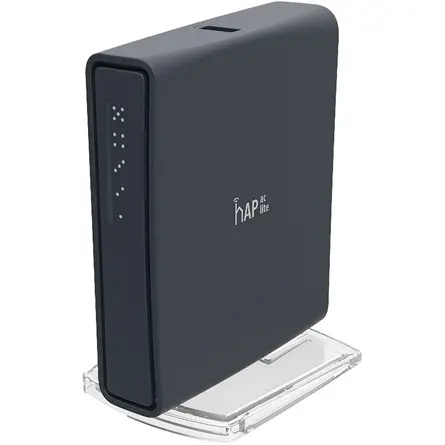

Mikrotik RB952UI-5AC2ND-TC WiFi router + Access Point

Leírás

Specifications

Product code RB952Ui-5ac2nD-TC
Architecture MIPSBE
CPU QCA9531
CPU core count 1
CPU nominal frequency 650 MHz
Switch chip model QCA9531
Dimensions 34 x 119 x 98mm
RouterOS license 4
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100.000 hours at 25C
Tested ambient temperature -30C to 70C

Wireless capabilities

Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 1.5
Wireless 2.4 GHz chip model QCA9531
Wireless 2.4 GHz generation Wi-Fi 4
Wireless 5 GHz Max data rate 433 Mbit/s
Wireless 5 GHz number of chains 1
Wireless 5 GHz standards 802.11a/n/ac
Antenna gain dBi for 5 GHz 2
Wireless 5 GHz chip model QCA9887
Wireless 5 GHz generation Wi-Fi 5
WiFi speed AC750

Ethernet

10/100 Ethernet ports 5

Peripherals

Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1

Powering

Number of DC inputs 2 (PoE-IN, DC jack)
DC jack input Voltage 10-28 V
Max power consumption 20 W
Max power consumption without attachments 8 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 10-28 V

PoE-out

PoE-out ports Ether5
PoE out Passive PoE
Max out per port output (input 18-30 V) 500 mA
Max total out (A) 500 mA
