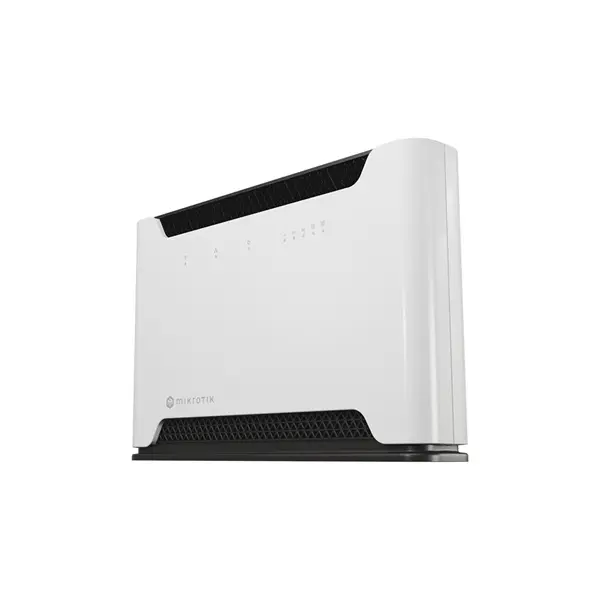

Garancia: 24 Hónap Megj.: Chateau LTE12 AC (2025), otthoni/kisirodai access point Cat12 LTE kártyával
Specifications
Details |
|---|
Product code |
D53G-5HacD2HnD-TC&EG120K-EA |
Architecture |
ARM 32bit |
CPU |
IPQ-4019 |
CPU core count |
4 |
CPU nominal frequency |
448-896 (auto) MHz |
Switch chip model |
IPQ-4019 |
RouterOS license |
4 |
Operating System |
RouterOS v7 |
Size of RAM |
256 MB |
Storage size |
32 MB |
Storage type |
FLASH |
MTBF |
Approximately 200’000 hours at 25C |
Tested ambient temperature |
-20°C to 70°C |
Powering
Details |
|---|
Number of DC inputs |
1 (DC jack) |
DC jack input Voltage |
12-28 V |
Max power consumption |
24 W |
Max power consumption without attachments |
18 W |
Cooling type |
Passive |
Mobile
Details |
|---|
3G Category |
R8 (42.2Mbps Downlink, 5.76Mbps Uplink) |
3G bands |
3 (1800MHz) / 1 (2100MHz) / 5 (850MHz) / 8 (900MHz) |
LTE Category |
12 (600Mbps Downlink, 150Mbps Uplink) |
MIMO DL |
4×4 |
MIMO UL |
1×1 |
LTE FDD bands |
1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 28 (700MHz) / 32 (1500 MHz) |
LTE TDD bands |
40 (2300MHz) / 41 (2500MHz) / 38 (2600MHz) |
TAC |
86056104 |
Wireless specifications
Details |
|---|
Wireless 2.4 GHz Max data rate |
300 Mbit/s |
Wireless 2.4 GHz number of chains |
2 |
Wireless 2.4 GHz standards |
802.11b/g/n |
Antenna gain dBi for 2.4 GHz |
2 |
Wireless 2.4 GHz chip model |
IPQ-4019 |
Wireless 2.4 GHz generation |
Wi-Fi 4 |
Wireless 5 GHz Max data rate |
867 Mbit/s |
Wireless 5 GHz number of chains |
2 |
Wireless 5 GHz standards |
802.11a/n/ac |
Antenna gain dBi for 5 GHz |
4 |
Wireless 5 GHz chip model |
IPQ-4019 |
Wireless 5 GHz generation |
Wi-Fi 5 |
Ethernet
Details |
|---|
10/100/1000 Ethernet ports |
5 |
Peripherals
Details |
|---|
Number of SIM slots |
1 Modem (Micro SIM) |
Number of USB ports |
1 |
USB Power Reset |
Yes |
USB slot type |
USB type A |
Max USB current (A) |
1 |
Number of M.2 slots |
1 |
Other
Certification & Approvals
Details |
|---|
Certification |
CE, EAC, ROHS |
IP |
20 |
Wireless specifications
2.4 GHz |
Transmit (dBm) |
Receive Sensitivity |
|---|
1MBit/s |
25 |
-100 |
11MBit/s |
25 |
-94 |
6MBit/s |
26 |
-95 |
54MBit/s |
23 |
-78 |
MCS0 |
26 |
-96 |
MCS7 |
22 |
-73 |
5 GHz |
Transmit (dBm) |
Receive Sensitivity |
|---|
6MBit/s |
26 |
-96 |
54MBit/s |
22 |
-80 |
MCS0 |
26 |
-96 |
MCS7 |
21 |
-75 |
MCS9 |
19 |
-70 |
Included parts
24V 1.2A power adapter
UTP Flat Cable (1.5m)
