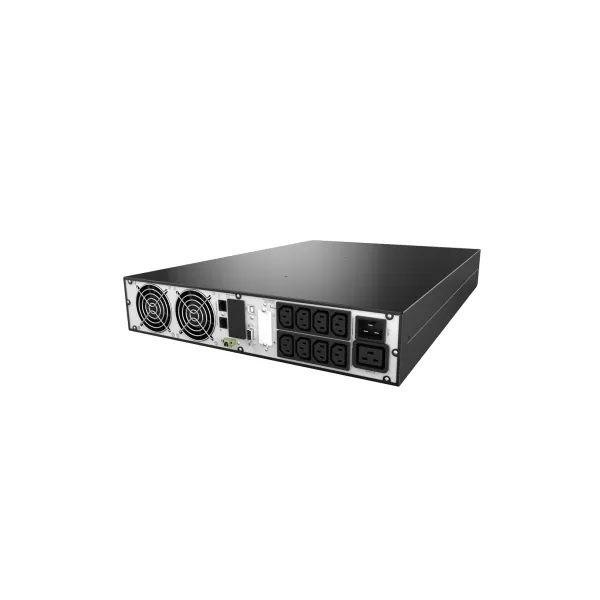

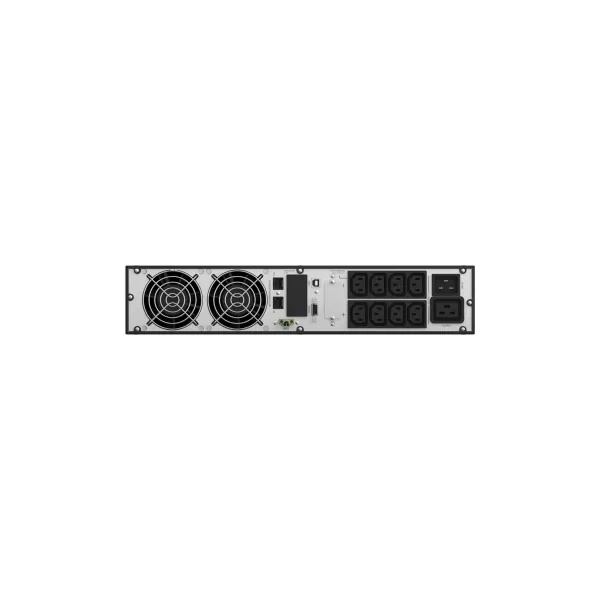

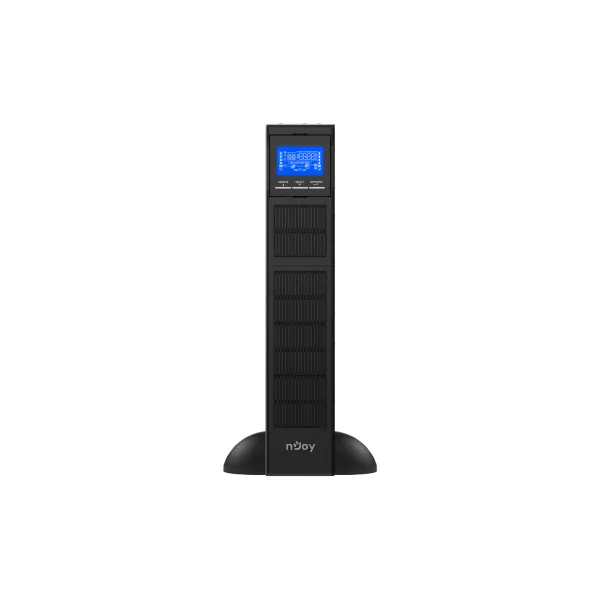

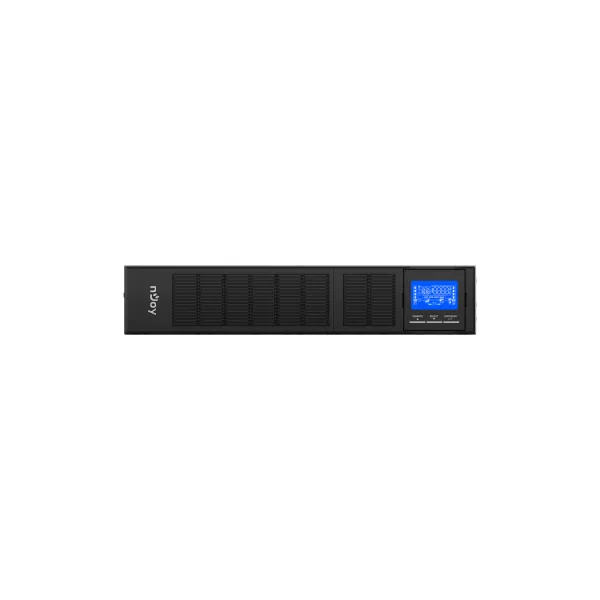

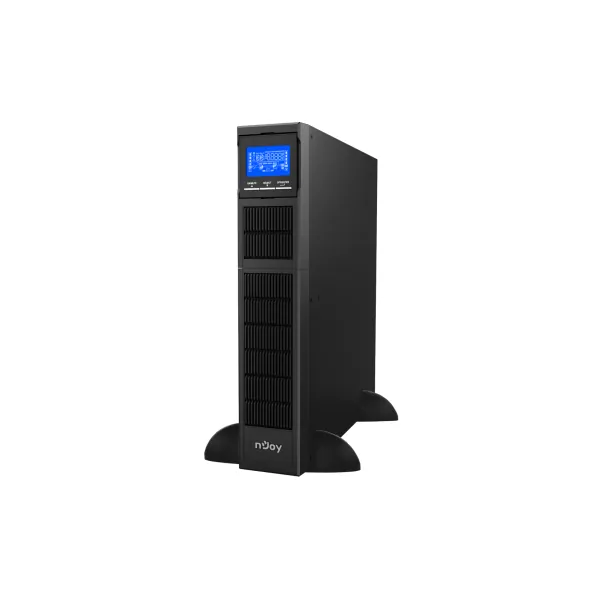

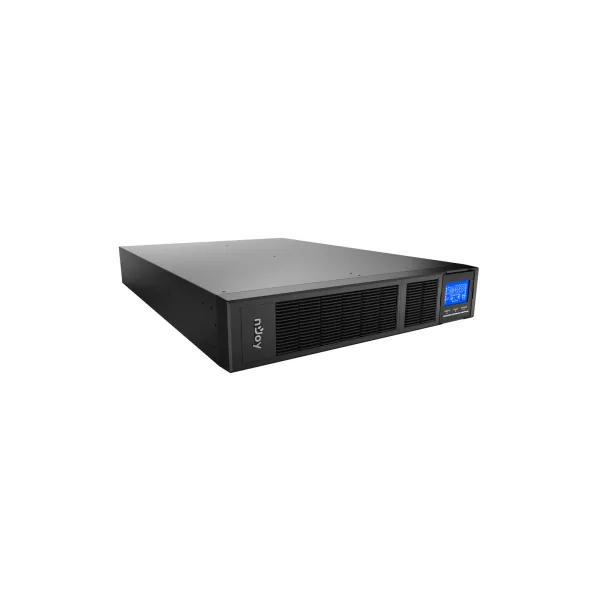

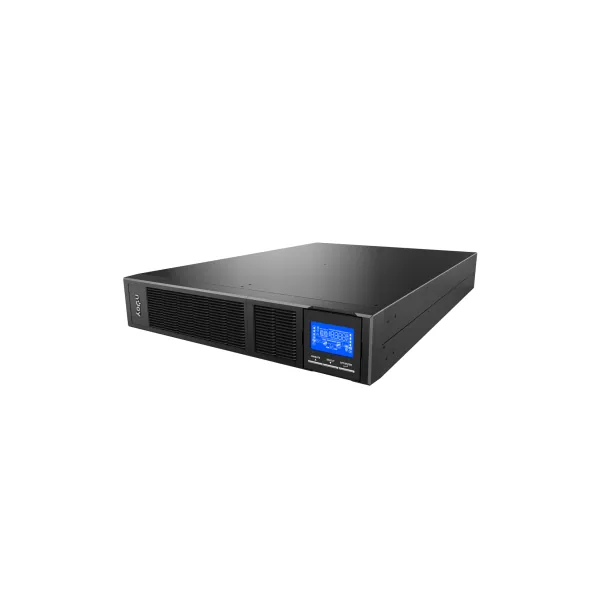

NJOY Szünetmentes 3000VA – Balder 3000 (On-line, RS232, USB, szoftver, LCD kijelző, 2U rack)

Leírás

PN PWUP-OL300BA-AZ01B

EAN6422956007867

• Power

• 3000 VA / 3000 W

• Type

• On-line

• Nominal Input Voltage

• 230Vac

• Nominal Output Voltage

• 200*/208*/220/230/240 VAC

  *Derated capacity to 80% when the output voltage is adjusted to 200VAC/208VAC

• Accepted Input Voltage Range

• 110-300 VAC ± 5% @ 50% load

  160-300 VAC ± 5% @ 100% load

• Frequency

• 40Hz ~ 70 Hz

• Transfer time

• AC-DC: Zero

  Inverter to Bypass: 4ms

• Typical Backup Time

• 25% Load – 26 min

  50% Load – 11 min

  75% Load – 6 min

  100% Load – 3 min

• Efficiency

• High efficiency up to 96%

• Communication Port

• RS232 / USB / Intelligent Port (not included in the package)

• Outlets

• 8 x IEC C13 + 1 x IEC C19

• Battery Specification

• 6 x 12V 9Ah

• Battery Compatibility

• nJoy PW9123

• Software

• Monitor & Control over USB, LAN and Internet (SNMP card optional)

  Online download (https://www. power-software-download.com/viewpower.html)

• Features

• Pure sine wave output

  True Double Conversion

  Auto-Restart while AC is recovering

  External battery pack (optional)

  High efficiency up to 96%

  User-friendly and easy-shift

  LCD Output

  Power Factor 1.0

  EPO function

  Software management

  Rack/Tower design

• LCD Display

• UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions

• Environment

• Humidity: 0-90 % (nin-condensing)

  Temperature: 0-40 grades Celsius

  Noise level: less than 50 dB

• Physical Dimensions

• Dimensions: 630 x 438 x 88 mm

  Weight: 27.5 kg
