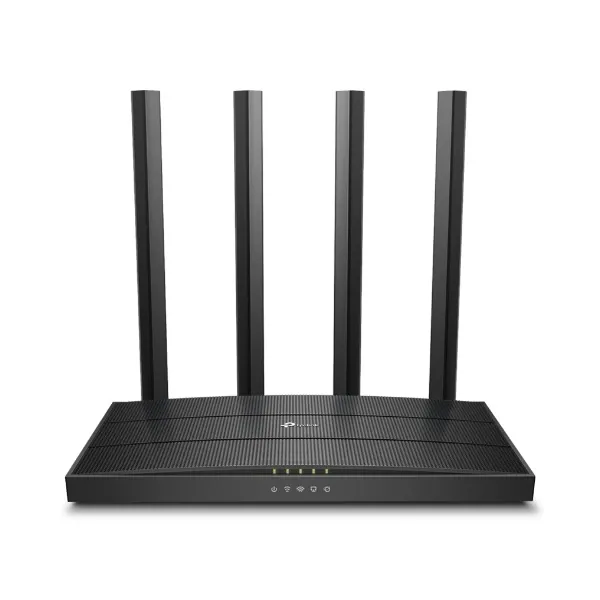

TP-Link Archer C80 AC1900 Wireless MU-MIMO Wi-Fi Router

Leírás

Vezeték nélküli
Standards  Wi-Fi 5
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz
WiFi Speeds  AC1900
5 GHz: 1300 Mbps (802.11ac)
2.4 GHz: 600 Mbps (802.11n)
WiFi Range  3 Bedroom Houses4× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
WiFi Capacity  MediumDual-Band
Allocate devices to different bands for optimal performance

3×3 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients

Airtime Fairness
Improves network efficiency by limiting excessive occupation
Working Modes  Router Mode
Access Point Mode
HARDWARE
Processor  1.2 GHz CPU
Ethernet Ports  1× Gigabit WAN Port
4× Gigabit LAN Ports
Buttons  WPS/Wi-Fi Button
Power On/Off Button
Reset Button
Power  US Version
12 V ? 1.5 A

EU Version
12 V ? 1 A
Biztonság
WiFi Encryption  WEP
WPA
WPA2
WPA/WPA2-Enterprise (802.1x)
Network Security  SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
Guest Network  1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
SOFTWARE
Protocols  IPv4
IPv6
Parental Controls  URL Filtering
Time Controls
WAN Types  Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service  QoS by Device
Cloud Service  OTA Firmware Upgrade
TP-Link ID
DDNS
NAT Forwarding  Port Forwarding
Port Triggering
DMZ
UPnP
IPTV  IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP  Address Reservation
DHCP Client List
Server
DDNS  TP-Link
NO-IP
DynDNS
Management  Tether App
Webpage
Check Web Emulator>
PHYSICAL
Dimensions (W×D×H)  8.5 × 4.6 × 1.26 in
(215 × 117 × 32 mm)
Package Contents  Wi-Fi Router Archer C80
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
OTHER
System Requirements  Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)
Certifications  FCC, CE, RoHS
Environment  Operating Temperature: 0?~40? (32? ~104?)
Storage Temperature: -40?~70? (-40? ~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
TEST DATA
WiFi Transmission Power  CE:
<20dBm(2.4GHz)
<23dBm(5.15GHz~5.25GHz)
FCC:
<30dBm(2.4GHz & 5GHz)
WiFi Reception Sensitivity  5GHz:
11a 6Mbps:-98dBm, 11a 54Mbps:-78dBm
11ac VHT20_MCS0:-98dBm, 11ac VHT20_MCS8:-72dBm
11ac VHT40_MCS0:-92dBm, 11ac VHT40_MCS9:-68dBm
11ac VHT80_MCS0:-89dBm, 11ac VHT80_MCS9:-64dBm

2.4GHz:
11g 6Mbps:-97dBm, 11a 54Mbps:-77dBm
11n VHT20_MCS0:-97dBm, 11n VHT20_MCS8:-72dBm
11n VHT40_MCS0:-92dBm, 11n VHT40_MCS9:-67dBm
