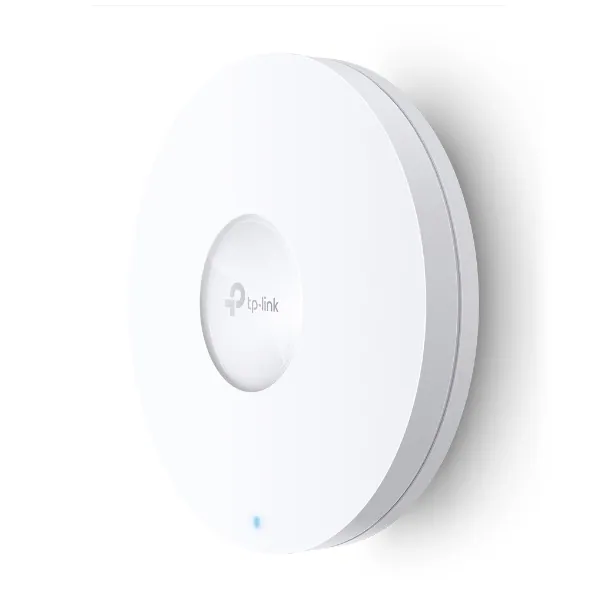

TP-Link EAP620 HD AX1800 Wireless Dual Band Ceiling Mount Access Point White

Leírás

HARDWARE FEATURES
Interface  1× Gigabit Ethernet (RJ-45) Port
(supports IEEE802.3at PoE)
Button  Reset
Power Supply  802.3at PoE or
12 V DC (Power adapter included)
Power Consumption  13.5 W
Dimensions ( W x D x H )  9.6 × 9.6 × 2.5 in.
(243 × 243 × 64 mm)
Antenna Type  Omni directional internal antennas
• 2.4 GHz: 2× 4 dBi
• 5 GHz: 2× 5 dBi
Mounting  Ceiling /Wall Mounting
(Mounting kit included)
WIRELESS FEATURES
Wireless Standards  IEEE 802.11ax/ac/n/g/b/a
Frequency  2.4 GHz and 5 GHz
Signal Rate  5 GHz: Up to 1201 Mbps
2.4 GHz: Up to 574 Mbps
Wireless Functions  • 1024-QAM
• 4× Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• MU-MIMO
• Seamless Roaming
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
Wireless Security  • Captive Portal Authentication
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power  25 dBm max. (2.4 GHz)
25 dBm max. (5 GHz)
MANAGEMENT
Omada App  Yes
Centralized Management  • Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access  Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Email Alerts  Yes
LED ON/OFF Control  Yes
Management MAC Access Control  Yes
SNMP  v1, v2c, v3
System Logging Local/Remote Syslog  Local/Remote Syslog
SSH  Yes
Web-based Management  HTTP/HTTPS
L3 Management  Yes
Multi-site Management  Yes
Management VLAN  Yes
OTHERS
Certification  FCC
Package Contents  • EAP620 HD
• Power Adapter
• Ceiling/Wall Mounting Kits
• Installation Guide
Environment  • Operating Temperature: 0–40 ? (32–104 ?)
• Storage Temperature: -40–70 ? (-40–158 ?)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
