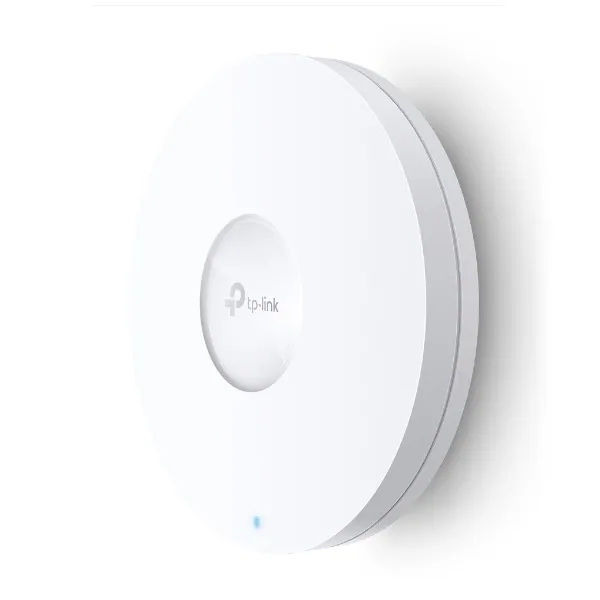

TP-Link Access Point WiFi AX3600 – Omada EAP660-HD (1148Mbps 2,4GHz + 2402Mbps 5GHz; 1Gbps; at PoE; 4x5dBi antenna)

Leírás

HARDWARE FEATURES
Interface  1× 2.5 Gbps Ethernet Port (supports IEEE802.3at PoE)
Button  Reset
Power Supply  • 802.3at PoE
• 12 V DC
Power Consumption  • EU: 18.5 W
• US: 21.5 W
Dimensions ( W x D x H )  9.6 × 9.6 × 2.5 in (243 × 243 × 64 mm)
Antenna Type  Internal Omni
• 2.4 GHz: 4× 4 dBi
• 5 GHz: 4× 5 dBi
Mounting  Ceiling /Wall Mounting (Kits included)
WIRELESS FEATURES
Wireless Standards  IEEE 802.11ax/ac/n/g/b/a
Frequency  2.4 GHz and 5 GHz
Signal Rate  • 5 GHz: Up to 2402 Mbps
• 2.4 GHz: Up to 1148 Mbps
Wireless Functions  • 1024-QAM
• 4× Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• MU-MIMO
• Seamless Roaming
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
Wireless Security  • Captive Portal Authentication
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power  • CE:
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, EIRP)

• FCC:
<26 dBm (2.4 GHz)
<26 dBm (5 GHz)
MANAGEMENT
Omada App  Yes
Centralized Management  • Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access  Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Email Alerts  Yes
LED ON/OFF Control  Yes
Management MAC Access Control  Yes
SNMP  v1, v2c, v3
System Logging Local/Remote Syslog  Local/Remote Syslog
SSH  Yes
Web-based Management  HTTP/HTTPS
L3 Management  Yes
Multi-site Management  Yes
Management VLAN  Yes
OTHERS
Certification  CE, FCC, RoHS
Package Contents  • EAP660 HD
• Power Adapter
• Ceiling/Wall Mounting Kits
• Installation Guide
System Requirements  Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
Environment  • Operating Temperature: 0–40 ? (32–104 ?)
• Storage Temperature: -40–70 ? (-40–158 ?)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
