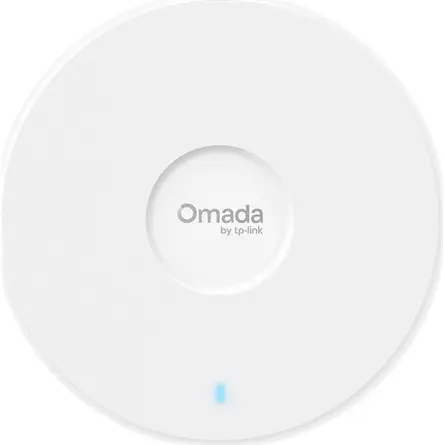

TP-LINK EAP720 WiFi Access Point BE5000

Leírás

HARDWARE FEATURES

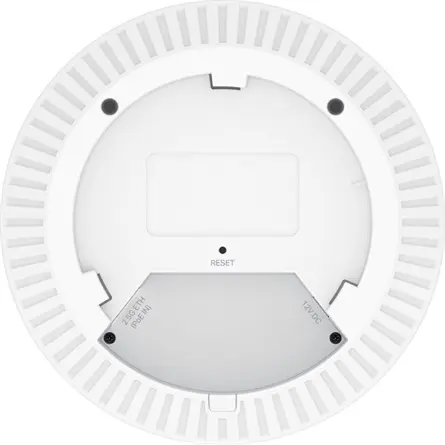

Interface 1× 2.5G Ethernet Port
Button Reset
Power Supply 802.3at PoE or 12V/1.5A DC (Power Adapter Included)
Max. Power Consumption • 17.83 W (For PoE);
• 13.99 W (For DC)
Dimensions ( W x D x H ) 6.3 × 6.3 × 1.4 in (160 × 160 × 36.7 mm)
Antenna • 2.4 GHz: 2× 4.0 dBi
• 5 GHz: 2× 5.0 dBi

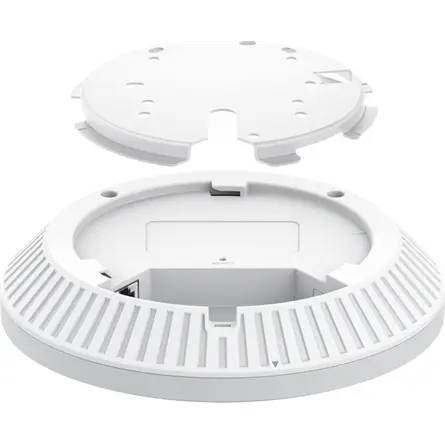

Mounting Ceiling / Wall / Junction Box Mounting (Kits Included)
Management Features
Omada App Yes

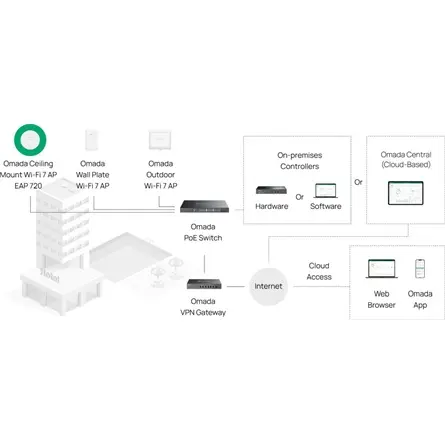

Centralized Management • Omada Central (Cloud-Based)
• Omada Hardware Controller
• Omada Software Controller
Cloud Access Yes. Require the use of Omada Controller.
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c, v3
System Logging Local/Remote Syslog Yes
Web-based Management Yes
WIRELESS FEATURES
Coverage 1500 ft2 (140?)*
Concurrent Clients 250+**
Wireless Standards IEEE 802.11 a/b/g/n/ac/ax/be
Frequency 2.4 GHz and 5 GHz
Signal Rate 688 Mbps (2.4 GHz) + 4324 Mbps (5 GHz)
Wireless Functions • MLO‡
• 4K-QAM‡
• Seamless Roaming
• 240 MHz Bandwidth‡
• Mesh?
• OFDMA‡
• Load Balance
• Band Steering
• Beamforming
• Airtime Fairness
• Multiple SSIDS:16(8 on each band)
• Wireless Schedule
• Reboot Schedule
• QoS(WMM)
• Rate Limit
• Static IP/Dynamic IP
• RADIUS Accounting
• MAC Authentication
Wireless Security • Captive Portal Authentication?
• Access Control
• Maximum number of MAC Filter: 4,000
• Wireless Isolation Between Clients
• VLAN
• Rogue AP Detection
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power < 25 dBm (2.4 GHz)
< 25 dBm (5 GHz, UNII-1&UNII-4)
< 24 dBm (5 GHz, UNII-2&UNII-3)
