TP-Link

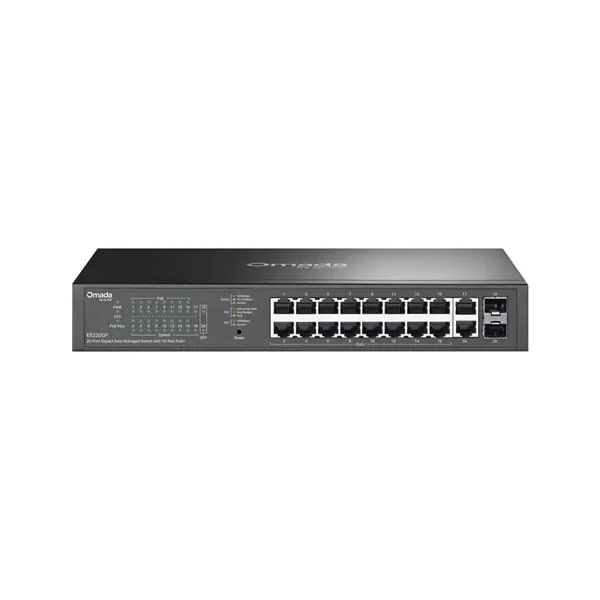

TP-Link Switch Menedzselhető PoE – ES220GP (Omada; 18x 1Gbps; 16x af/at PoE+ port; 2x SFP port; 150W)
Cikkszám: US61786·Gyártói cikkszám: ES220GP·EAN: 1210002609746
Omada; 18x 1Gbps; 16x af/at PoE+ port; 2x SFP port; 150W
78 990 Ft
Bruttó ár, az ÁFÁ-t tartalmazza
Raktáron (1+ db)Várható kézbesítés, ha most megrendeli: okt. 21–22.
- Házhoz szállításGLS vagy MPL futárral, 1 790 Ft
- Személyes átvételdíjmentesen
- Garanciaminden termékre, számlával
- 14 napos elállási jogindoklás nélkül
Az Ön jogszabályi szavatossági jogai
Leírás
Garancia: 5 Év
| HARDWARE FEATURES | |
|---|---|
| Interface | • 18× 10/100/1000 Mbps RJ45 ports • 2× Gigabit SFP slots |
| Fan Quantity | Fanless |
| Installation | Desktop/Rackmount Installation |
| Physical Security Lock | ? |
| Power Supply | 100-240V~ 50/60Hz 2.5A |
| PoE Ports (RJ45) | • Standard: IEEE 802.3: Ethernet Media Access Control (MAC) Protocol; IEEE 802.3i:10BASE-T Ethernet; IEEE 802.3u:100BASE-X Fast Ethernet; IEEE 802.3ab:1000BASE-T Gigabit Ethernet; IEEE 802.3z: 1000BASE-X Gigabit Ethernet (Optical ffber); IEEE 802.3x: Flow Control IEEE 802.1p: Trafffc Class Expediting and Dynamic Multicast Filtering IEEE 802.1q: Virtual Bridged Local Area Networks IEEE 802.1ab: Station and Media Access Control Connectivity Discovery (LLDP) • PoE Ports: 16 Ports • PoE Budget: 150W available for all PoE+ ports, 30W max per port |
| Dimensions ( W x D x H ) | 11.6×7.1×1.7 in (294×180×44 mm) |
| Surge Protection | Ethernet port: ±6 kV in common mode Power port: ±4 kV in differential mode; ±4 kV in common mode |
| PERFORMANCE | |
|---|---|
| Switching Capacity | 40 Gbps |
| Packet Forwarding Rate | 29.76 Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4 Mbit |
| Jumbo Frame | 15 KB |
| SOFTWARE FEATURES | |
|---|---|
| Quality of Service | • Port-based/802.1p/DSCP QoS • 8 Priority Queues • Priority Schedule Mode – WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control – Port-Based Rating Limit • Storm Control – Multiple Control Modes (kbps/pps) – Broadcast/Multicast/Unknown-Unicast Control? |
| L2 Features | • Link Aggregation – Static Link Aggregation – Up to 4 aggregation groups and up to 8 ports per group • Loopback Detection • Flow Control – 802.3x Flow Control • Mirroring – Port Mirroring – One-to-One – Many-to-One – Ingress/Egress/Both • Port Statistics – Port Mirror Status – Trafffc Statistics • 802.1ab LLDP |
| L2 Multicast | • IGMP Snooping – IGMP v1/v2/v3 Snooping – Fast Leave |
| VLAN | • MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN – Max 32 VLAN Groups – 4K VID |
| Transmission Method | Store-And-Forward |
| Management Features | |
|---|---|
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller |
| Management Features | • Web-based GUI • DHCP Client • Cable Diagnostics |
| OTHERS | |
|---|---|
| Certification | FCC, CE, RoHS |
| Package Content | • ES220GP • Power Cord • Mounting Brackets • Rubber Feet • Screws • Installation Guide |
| Environment | • Operating Temperature: -5 °C to 40 °C (23 °F to 104 °F) • Storage Temperature: -40?~70? (-40?~158?) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing |
