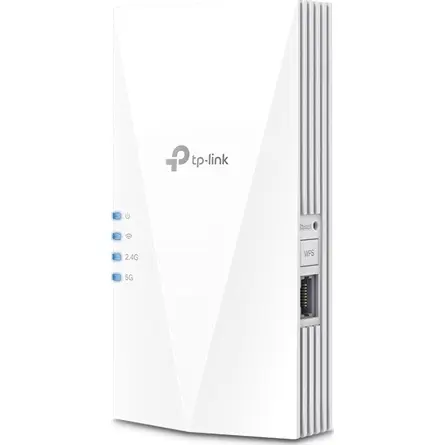

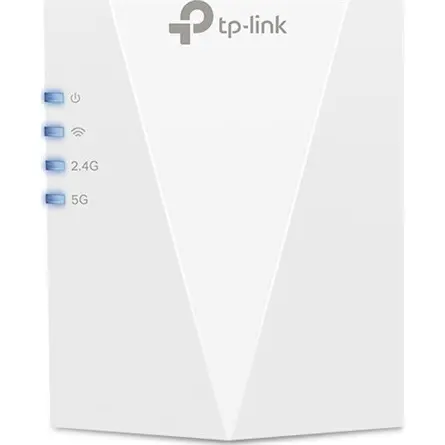

TP-LINK RE600X WiFi Range Extender AX1800

Leírás

HARDWARE FEATURES

Interface 1 Gigabit Ethernet Port
Button • WPS Button
• Reset Button
Input Power 100-240V~50/60Hz
Max. Power Consumption 10.8W
Dimensions ( W x D x H ) 3.1×1.4×5.9 in. (78×36×149 mm)
Antenna 2 Internal Antennas
WIRELESS FEATURES

Wireless Standards • IEEE 802.11a/n/ac/ax 5GHz
• IEEE 802.11b/g/n/ax 2.4GHz
Frequency 2.4GHz and 5GHz
Signal Rate • 574 Mbps at 2.4 GHz
• 1201 Mbps at 5 GHz
Working Modes Range Extender/Access Point
Reception Sensitivity 5GHz:
11a 6Mbps:-97dBm
11a 54Mbps:-78dBm
11ax HE20 MCS0: -97dBm
11ax HE20 MCS11: -66dBm
11ax HE40 MCS0: -94dBm
11ax HE40 MCS11: -63dBm
11ax HE80 MCS0: -91dBm
11ax HE80 MCS11: -60dBm

2.4GHz:
11g 6Mbps:-96dBm
11g 54Mbps:-78dBm
11ax HE20 MCS0: -95dBm
11ax HE20 MCS11: -65dBm
11ax HE40 MCS0: -93dBm
11ax HE40 MCS11: -62dBm
Wireless Functions • Enable/Disable Wireless Radio
• DFS (the latest firmware and hardware version is required)
• Access Control
• LED Control
• Power Schedule
• Wi-Fi Coverage Adjustment
Wireless Security • WEP
• WPA
• WPA2
• WPA3
Transmission Power FCC:
• 2.4 GHz < 30 dBm
• 5 GHz < 30 dBm
CE (EU):
• 2.4 GHz ?16dBm
• 5 GHz ?21dBm

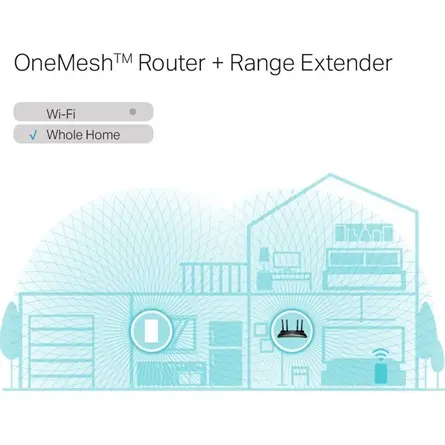

Mesh Technology EasyMesh-Compatible
OTHER

Network Services Enabled by Default Web Server
Manage and configure device through web (HTTP/HTTPS)
• Port: 80/443 Protocol: TCP
DHCP Server
IP address assignment (DHCP)
• Port: 67 Protocol: UDP
App management
Manage and configure device through app
• Port: 20001 Protocol: TCP
• Port: 20002 Protocol: UDP
OTHERS

Certification CE, RoHS
Package Content • Wi-Fi Range Extender RE600X
• Quick Installation Guide
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Environment • Operating Temperature: 0?~40? (32? ~104?)
• Storage Temperature: -40?~70? (-40? ~158?)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
