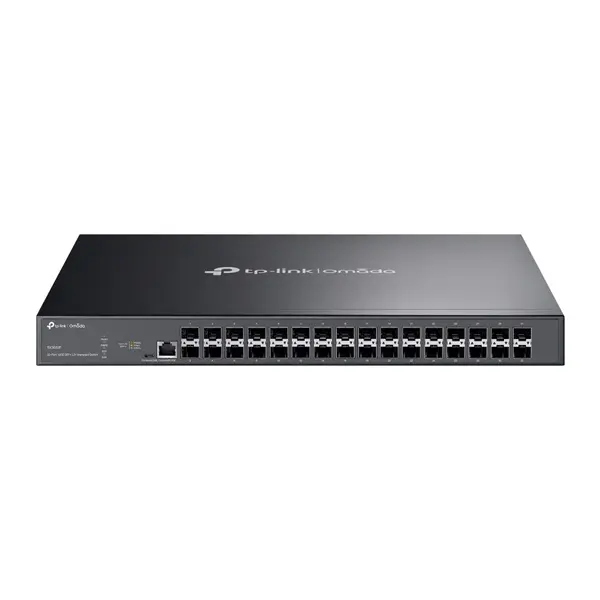

TP-LINK Switch 32x10Gbps SFP+ + 2xkonzol port, Menedzselhető Rackes, SX3032F

Leírás

Garancia: 5 Év

•






























  CARACTERÍSTICAS DE HARDWARE
  Interfaz	• 32× 10G SFP+ Slots • 1× RJ45 Console Port • 1× Micro-USB Console Port
  Cantidad de Ventiladores	1 ???
  Bloqueo de Seguridad Físico	?
  Fuente de Alimentación	• 1+1 Redundant Power Supply (fixed) • 100-240 V AC~50/60 Hz
  Dimensiones	17.3×13.0×1.7 in (440×330×44 mm)
  Montaje	Rack Mountable
  Consumo de Potencia Máximo	32.74 W (220 V / 50 Hz) ???
  Disipación máxima de calor	111.71 BTU/hr (220 V / 50 Hz) ???























  RENDIMIENTO
  Capacidad de Conmutación	640 Gbps
  Tasa de Reenvío de Paquetes	476.16 Mpps ???
  Tabla de Direcciones MAC	32 K ???
  Memoria del Buffer de Paquete	24 Mbit ???
  Jumbo Frame	9 KB ???



































  CARACTERÍSTICAS DE SOFTWARE
  Calidad de Servicio	• 8 priority queues • 802.1p CoS/DSCP priority • Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR • Bandwidth Control: Port/Flow-based Rating Limiting • Smoother Performance • Action for Flows: QoS remark (802.1P Remark, DSCP Remark) ???
  Características L2 y L2+	• 128 IP Interfaces: Support IPv4/IPv6 Interface • Static Routing: 48 IPv4/IPv6 Static Routes • Static ARP: 128 static entries • 512 ARP Entries • Proxy ARP • Gratuitous ARP • DHCP Server • DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay • DHCP L2 Relay • Link Aggregation • Spanning Tree Protocol • Loopback Detection • 802.3x Flow Control • Mirroring ???
  Multicast L2	• Supports 1000 (IPv4, IPv6) IGMP groups • IGMP Snooping • IGMP Authentication • Multicast VLAN Registration (MVR) • MLD Snooping • Multicast Filtering: 256 profiles and 16 entries per profile ???
  Características Avanzadas	• Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Intelligent Network Monitoring† • Abnormal Event Warnings† • Unified Configuration† • Reboot Schedule† ISP Features*: • L2PT (Layer 2 Protocol Tunneling) • Device Link Detect Protocol (DLDP) • PPPoE ID Insertion • ERPS • 802.3ah Ethernet Link OAM • DDM • sFlow ???
  VLAN	• VLAN Group (802.1q VLAN): Max 4K VLAN Groups • 802.1Q Tagged VLAN • MAC VLAN: 30 Entries • Protocol VLAN: Protocol Template 16, Protocol VLAN 12 • Private VLAN • GVRP • VLAN VPN (QinQ): Port-Based QinQ, Selective QinQ • Voice VLAN ???
  Lista de Control de Acceso	• Time-based ACL • MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type • IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS • Combined ACL • Packet Content ACL • IPv6 ACL • Policy: Mirroring, Redirect, Rate Limit, QoS Remark • ACL applies to Port/VLAN ???
  Seguridad	• IP-MAC-Port Binding – 512 Entries – DHCP Snooping – ARP Inspection – IPv4 Source Guard • IPv6-MAC-Port Binding – 512 Entries – DHCPv6 Snooping – ND Detection – ND Snooping – IPv6 Source Guard • DoS Defend • Static/Dynamic Port Security: Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control: kbps/ratio control mode • 802.1X – Port base authentication – MAC-based authentication – VLAN Assignment – MAB – Guest VLAN – Radius authentication and accountability support • AAA (including TACACS+) • Port Isolation • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 • IP/Port/MAC-based access control ???
  IPv6	• IPv6 Dual IPv4/IPv6 • Multicast Listener Discovery (MLD) Snooping • IPv6 ACL • IPv6 Interface • Static IPv6 Routing • IPv6 neighbor discovery (ND) • Path maximum transmission unit (MTU) discovery • Internet Control Message Protocol (ICMP) version 6 • TCPv6/UDPv6 • IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP ???
  MIBs	• MIB II (RFC1213) • Interface MIB (RFC2233) • Ethernet Interface MIB (RFC1643) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • RMON MIB (RFC2819) • RMON2 MIB (RFC2021) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link private MIB ???























  GESTIÓN
  Omada App	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
  Gestión Centralizada	• Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
  Acceso a la nube	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
  Aprovisionamiento sin contacto	Yes. Requires the use of Omada Cloud-Based Controller.
  Funciones de gestión	• Web-based GUI • Command Line Interface (CLI) through the console port, telnet • SNMP v1/v2c/v3: Trap/Inform, RMON (1,2,3,9 groups) • SDM Template • DHCP/BOOTP Client • 802.1ab LLDP/LLDP-MED • DHCP Auto Install • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • Password Recovery • SNTP • System Log




















  Otros
  Certificaciones	CE, FCC, RoHS
  Contenido del Paquete	• SX3032F Switch • 2× Power Cords • Quick Installation Guide • Rackmount Kit • Rubber Feet
  Requisitos del sistema	Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
  Factores Ambientales	• Operating Temperature: 0–45 ? (32–113 ?); • Storage Temperature: -40–70 ? (-40–158 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing ???
