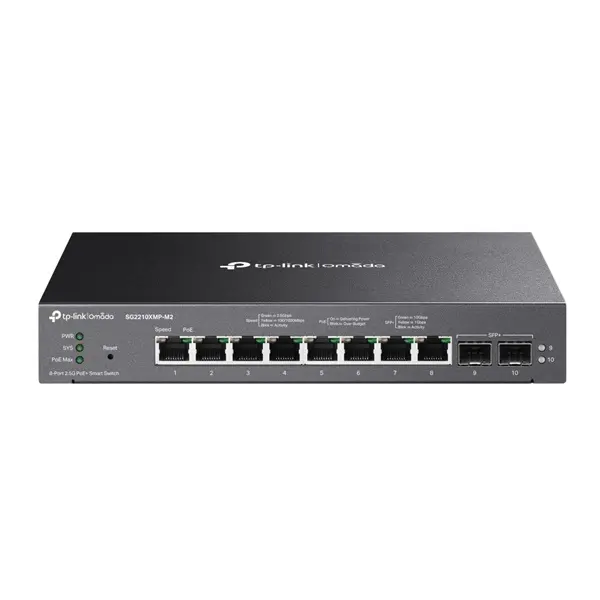

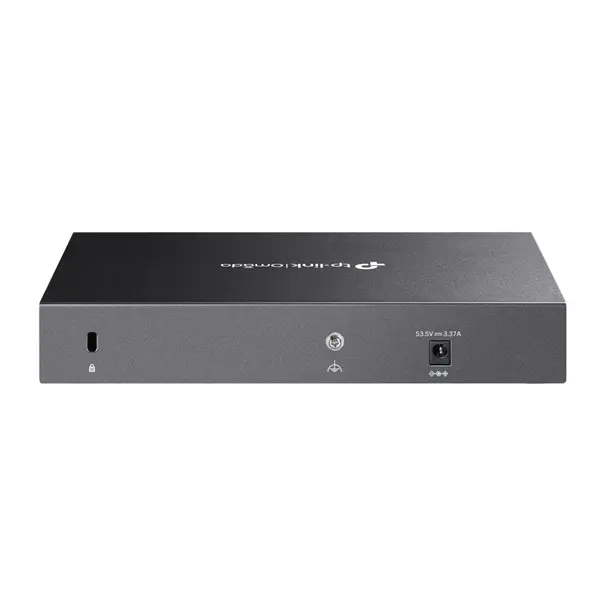

TP-LINK Switch 8×2.5Gbps(8xPOE+) + 2x10G SFP+, Menedzselhető, SG2210XMP-M2

Leírás

Hardver jellemzők

Csatlakozások               • 8× 100/1000/2500 Mbps RJ45 PoE+ Ports

• 2× 10G SFP+ Slots

Ventilátorok száma      Fanless

Fizikai biztonsági zár     ?

Hálózati tápegység       53.5VDC/3.37A Power Adapter

PoE portok (RJ45)          • Standard: 802.3at/af compliant

• PoE+ Ports: 8 Ports

• PoE Power Budget: 160 W*

Méretek (Sz x Mé x Ma)              8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)

Felszerelés       Desktop/Wall-Mounting

Max. áramfelvétel         180.1 W (110V/60Hz) (with 160 W PD connected)

Max Heat Dissipation 614.58 BTU/hr (110V/60Hz) (with 160 W PD connected)

Működési jellemzők

Switching teljesítmény              80 Gbps

Csomagtovábbítási sebesség 59.52 Mpps

Fizikai (MAC) cím tábla              16 K

Csomag puffer memória           12 Mbit

Jumbo Frame   9 KB

Szoftver jellemzők

QoS (szolgáltatás minősége)   • 802.1p CoS/DSCP priority

• 8 priority queues

• Priority Schedule Mode

– SP (Strict Priority)

– WRR (Weighted Round Robin)

• Queue Weight Config

• Bandwidth Control

– Port/Flow based Rating Limit

• Smoother Performance

• Storm Control

– Multiple Control Modes(kbps/ratio)

– Broadcast/Multicast/Unknown-Unicast Control

L2 és L2+ jellemzők      • 32 IP Interfaces: Support IPv4/IPv6 Interface

• Static Routing: 32 IPv4/IPv6 Static Routes

• DHCP Server

• DHCP Relay

– DHCP Interface Relay

– DHCP VLAN Relay

• DHCP L2 Relay

• Static ARP

• Proxy ARP

• Gratuitous ARP

• Link Aggregation

• Spanning Tree Protocol

• Loopback Detection

• 802.3x Flow Control

• Mirroring

• Device Link Detect Protocol (DLDP)

• 802.1ab LLDP/ LLDP-MED

L2 Multicast     • 511 IPv4, IPv6 shared multicast groups

• IGMP Snooping

• Multicast VLAN Registration (MVR)

• Multicast Filtering

• Limited IP Multicast (256 profiles and 16 entries per profile)

További jellemzők         • Automatic Device Discovery

• Batch Configuration

• Batch Firmware Upgrading

• Intelligent Network Monitoring

• Abnormal Event Warnings

• Unified Configuration

• Reboot Schedule

VLAN    • VLAN Group

– Max 4K VLAN Groups

• 802.1Q Tagged VLAN

• MAC VLAN: 12 Entries

• Protocol VLAN

• GVRP

• Voice VLAN

Hozzáférés-jogosultsági lista (ACL)     • Support up to 230 entries

• Time-based ACL

• MAC ACL

• IP ACL

• IPv6 ACL

• Combined ACL

• Rule Operation: Permit/Deny

• Policy Action

– Mirroring

– Redirect

– Rate Limit

– QoS Remark

• ACL Rules Binding

– Port Binding

– VLAN Binding

Biztonság          • IP-MAC-Port Binding

• AAA

• 802.1X

– Port based authentication

– MAC (Host) based authentication

– Authentication Method includes PAP/EAP-MD5

– MAB

– Guest VLAN

– Support Radius authentication and accountability

• IP/IPv6-MAC Binding

– 512 Binding Entries

– DHCP Snooping

– DHCPv6 Snooping

– ARP Inspection

– ND Detection

– ND Snooping

• IP Source Guard

– 253 Entries

– Source IP+Source MAC

• IPv6 Source Guard

– 183 Entries

– Source IPv6 Address+Source MAC

• DoS Defend

• DHCP Filter

• Static/Dynamic/Permanent Port Security

– Up to 64 MAC addresses per port

• Broadcast/Multicast/Unicast Storm Control

• Port Isolation

• Secure web management through HTTPS with SSLv3/TLS 1.2

• Secure Command Line Interface (CLI) management with SSHv1/SSHv2

• IP/Port/MAC based access control

IPv6      • IPv6 Static Routing and ACL

• IPv6 Dual IPv4/IPv6

• IPv6 Interface

• Multicast Listener Discovery (MLD) Snooping

• IPv6 neighbor discovery (ND)

• Path maximum transmission unit (MTU) discovery

• Internet Control Message Protocol (ICMP) version 6

• TCPv6/UDPv6

• IPv6 applications

– DHCPv6 Client

– Ping6

– Tracert6

– Telnet(v6)

– IPv6 SNMP

– IPv6 SSH

– IPv6 SSL

– Http/Https

– IPv6 TFTP

MIBs     • MIB II (RFC1213)

• Interface MIB (RFC2233)

• Ethernet Interface MIB (RFC1643)

• Bridge MIB (RFC1493)

• P/Q-Bridge MIB (RFC2674)

• RMON MIB (RFC2819)

• RMON2 MIB (RFC2021)

• Radius Accounting Client MIB (RFC2620)

• Radius Authentication Client MIB (RFC2618)

• Remote Ping, Traceroute MIB (RFC2925)

• Support TP-Link private MIB

Vezérlés

Omada App      Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Centralized Management         • Omada Cloud-Based Controller

• Omada Hardware Controller

• Omada Software Controller

Cloud Access Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Zero-Touch Provisioning            Yes. Requiring the use of Omada Cloud-Based Controller.

Management Features              • Web-based GUI

• Command Line Interface (CLI) through telnet

• SNMPv1/v2c/v3

• SNMP Trap/Inform

• RMON (1,2,3,9 groups)

• SDM Template

• DHCP/BOOTP Client

• Dual Image, Dual Configuration

• CPU Monitoring

• Cable Diagnostics

• EEE

• SNTP

• System Log

Egyéb jellemzők

Tanúsítványok CE, FCC, RoHS

Csomagolás tartalma • SG2210XHP-M2 Switch

• Power Adapter

• Quick Installation Guide

• Rubber Feet

Rendszerkövetelmény               Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.

Környezet          • Operating Temperature: 0–40 ? (32–104 ?);

• Storage Temperature: -40–70 ? (-40–158 ?)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing
