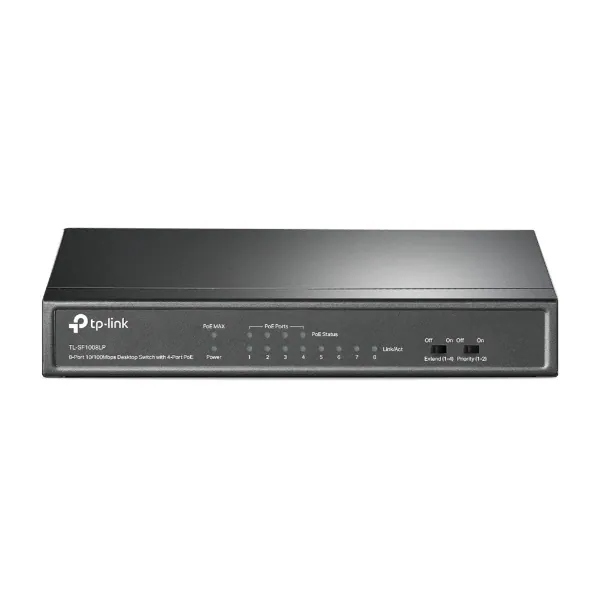

TP-Link Switch PoE – TL-SF1008LP (8port 100Mbps; 8/4 af PoE port, 41W)

Leírás

HARDWARE FEATURES
Interface  • 8× 10/100 Mbps RJ45 Ports (Ports 1–4 support 802.3af PoE)
• AUTO Negotiation
• AUTO MDI/MDIX
Network Media  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity  Fanless
Physical Security Lock  Yes
External Power Supply  External Power Adapter (Output: 53.5 V DC / 0.81 A)
Packet Forwarding Rate  1.1904 Mpps
PoE Ports (RJ45)  • Standard: 802.3 af compliant
• PoE Ports: Ports 1–4
• Power Supply: 41 W
Backbound Bandwidth  1.6 Gbps
Mac Address Table  2K
Jumbo Frame  2 KB
Switching Capacity  1.6 Gbps
Dimensions ( W x D x H )  6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm)
Max Power Consumption  • 2.2 W (220 V/ 50 Hz. no PD connected)
• 47.1 W (220 V/ 50 Hz. with 41 W PD connected)
Max Heat Dissipation  • 7.5 BTU/h(no PD connected)
• 160.61 BTU/h(with 41 W PD connected)
SOFTWARE FEATURES
Transmission Method  Store-And-Forward
Advanced Functions  • Compatible With IEEE 802.3af Compliant PDs
• Extend Mode Button (Ports 1–4)
• Priority Mode Button (Ports 1–2)
• Mac Address Auto-Learning and Auto-Aging
• IEEE802.3x Flow Control for Full-Duplex Mode and Backpressure for Half-Duplex Mode
OTHERS
Certification  FCC, CE, RoHS
Package Contents  • TL-SF1008LP
• Power Adapter
• Installation Guide
Environment  • Operating Temperature: 0–40 ? (32–104 ?)
• Storage Temperature: -40–70 ? (-40–158 ?)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
For additional version information, please go to the support page.
