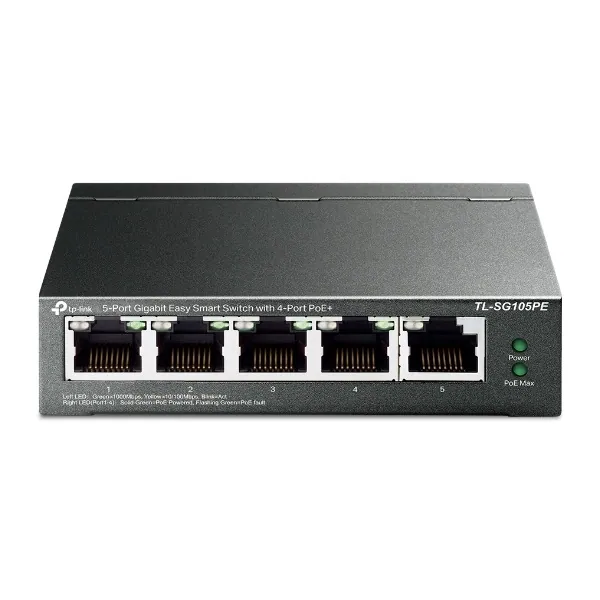

TP-Link TL-SG105PE 5-Port Gigabit Easy Smart Switch

Leírás

HARDWARE FEATURES
Standards and Protocols  IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at
Interface  Five 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media  10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity  Fanless
Power Supply  External Power Adapter (Output: 53.5 VDC/1.31 A)
PoE Ports (RJ45)  Standard: 802.3 af/at compliant
PoE Ports: Port 1- Port 4
PoE Power Budget: 65 W
Dimensions ( W x D x H )  3.9 × 3.9 × 1.0 in (99.8 × 98 × 25 mm)
Max Power Consumption  4.52 W (220V/50Hz with no PD connected)
75.16 W (220V/50Hz with 65 W PD connected)
Max Heat Dissipation  15.41 BTU/h (with no PD connected)
256.30 BTU/h (with 65 W PD connected)
PERFORMANCE
Switching Capacity  10 Gbps
Packet Forwarding Rate  7.44 Mpps
MAC Address Table  2 K
Packet Buffer Memory  1.5 Mb
Jumbo Frame  16 KB
SOFTWARE FEATURES
Quality of Service  Support Port-Based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Features  IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
PoE Auto Recovery
Extend Mode
VLAN  Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Management  Web-based GUI
Easy Smart Configuration Utility
Transmission Method  Store-And-Forward
OTHERS
Certification  FCC, CE, RoHS
Package Contents  TL-SG105PE
Power Adapter
Installation Guide
Rubber Feet
System Requirements  Microsoft® Windows® for running Utility
Environment  Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90%RH non-condensing
Storage Humidity: 5%~95%RH non-condensing
