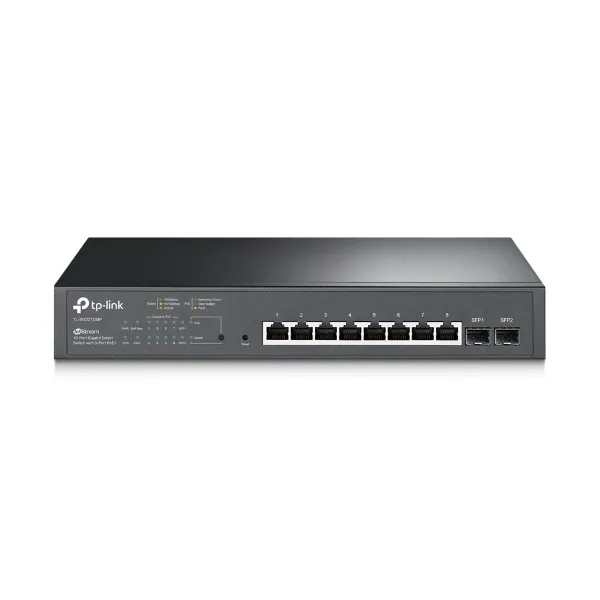

TP-Link TL-SG2210MP JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+

Leírás

Hardver jellemzők
Szabványok és protokollok
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
Csatlakozások
• 8× 10/100/1000 Mbps RJ45 Ports, all supporting PoE+ (Auto-Negotiation/Auto MDI/MDIX)
• 2× 100/1000 Mbps SFP Slots
Hálózati összeköttetés
• 10BASE-T: UTP/STP category 3, 4, 5 cable (maximum 100m)
• 100BASE-TX/1000Base-T: UTP/STP category 5, 5e or above cable (maximum 100m)
• 100BASE-FX: MMF, SMF
• 1000BASE-X: MMF, SMF
Ventilátorok száma  1
Fizikai biztonsági zár  Yes
PoE+ portok (RJ45)
• Standard: 802.3at/af compliant
• PoE+ Ports: 8 Ports
• Power Supply: 150 W
Méretek (Sz x Mé x Ma)  11.6 x 7.1 x 1.7 in (294 x 180 x 44 mm)
Felszerelés  Rack Mountable
Max. áramfelvétel
• 12.2 W (110 V / 60 Hz with no PD connected)
• 173.9 W (110 V / 60 Hz with 150 W PD connected)
Max Heat Dissipation
• 41.63 BTU/h (with no PD connected)
• 539.35 BTU/h (with 150 W PD connected)
Működési jellemzők
Switching teljesítmény  20 Gbps
Csomagtovábbítási sebesség  14.9 Mpps
Fizikai (MAC) cím tábla  8K
Csomag puffer memória  4.1 Mbit
Jumbo Frame  9 KB
Szoftver jellemzők
QoS (szolgáltatás minősége)
• 802.1p CoS/ DSCP priority
• 8 priority queues
• Priority Schedule Mode
– SP (Strict Priority)
– WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
– Port/Flow based Rating Limit
• Smoother Performance
• Actions for flows
– Mirror(to supported interface)
– Redirect(to supported interface)
– Rate Limit
– QoS Remark
• Storm Control
– Multiple Control Modes(kbps/ratio/pps)
– Broadcast/Multicast/Unknown-Unicast Control
L2 és L2+ jellemzők
• DHCP Relay
– DHCP VLAN Relay
• DHCP L2 Relay
• Link Aggregation
– Static link aggregation
– 802.3ad LACP
– Up to 8 aggregation groups and up to 8 ports
per group
• Spanning Tree Protocol
– 802.1D STP
– 802.1w RSTP
– 802.1s MSTP
– STP Security: TC Protect, BPDU Filter/Protect,
Root Protect
• Loopback Detection
• Flow Control
– 802.3x Flow Control
• Mirroring
– Port Mirroring
– CPU Mirroring
– One-to-One
– Many-to-One
– Flow-Based
– Ingress/Egress/Both
• Device Link Detect Protocol (DLDP)
• 802.1ab LLDP/ LLDP-MED
L2 jellemzők
• Link Aggregation
– static link aggregation
– Up to 8 aggregation groups and up to 8 ports per group
– 802.3ad LACP
• Spanning Tree Protocol
– 802.1D STP
– 802.1w RSTP
– 802.1s MSTP
– STP Security: Loop back detection, TC Protect, BPDU Filter/Protect, Root Protect
• Loopback Detection
• Flow Control
– 802.3x Flow Control
• Mirroring
– Port Mirroring
– One-to-One
– Many-to-One
– Flow-Based
– Ingress/Egress/Both
– CPU Mirroring
• Device Link Detect Protocol(DLDP)
L2 Multicast
• 512 IPv4,IPv6 shared multicast groups
• IGMP Snooping
– IGMP v1/v2/v3 Snooping
– Fast Leave
– IGMP Snooping Querier
– IGMP Authentication
– Static Group Config
• MLD Snooping
– MLD v1/v2 Snooping
– Fast Leave
– MLD Snooping Querier
– Static Group Config
• Multicast VLAN Registration
• Multicast Filtering
IPv6 Support
• IPv6 Dual IPv4/IPv6
• Multicast Listener Discovery(MLD) Snooping
• IPv6 neighbor discovery (ND)
• Path maximum transmission unit (MTU) discovery
• Internet Control Message Protocol (ICMP) version 6
• TCPv6/UDPv6
• IPv6 applications
– DHCPv6 Client
– Ping6
– Tracert6
– Telnet(v6)
– IPv6 SNMP
– IPv6 SSH
– IPv6 SSL
– Http/Https
– IPv6 TFTP
VLAN
• VLAN Group
– Max. 4K VLAN Groups
• 802.1Q tag VLAN
• MAC VLAN
• Protocol VLAN
• GVRP
• Voice VLAN
Hozzáférés-jogosultsági lista (ACL)
• Support up to 230 entries
• Time-Range
– Time Slice
– Week Time-Range
– Absolute Time-Range
– Holiday
• Time-based ACL
• MAC ACL
– Source MAC
– Destination MAC
– VLAN ID
– User Priority
– Ether Type
• IP ACL
– Source IP
– Destination IP
– IP Protocol
– TCP Flag
– TCP/UDP Source Port
– TCP/UDP Destination Port
– DSCP/IP TOS
• IPv6 ACL
• Combined ACL
• Rule Operation
– Permit/Deny
• Policy Action
– Mirror
– Rate Limit
– Redirect
– QoS Remark
• ACL Rules Binding
– Port Binding
– VLAN Binding
Biztonság
• AAA
• 802.1X
– Port based authentication
– MAC(Host) based authentication
– Authentication Method includes PAP/EAP-MD5/EAP-TLS/EAP-TTLS/EAP-PEAP
– MAB
– Guest VLAN
– Support Radius authentication and accountability
• IP/IPv6-MAC Binding
– 512 Binding Entries
– DHCP Snooping
– DHCPv6 Snooping
– ARP Inspection
– ND Detection
• IP Source Gurad
– 253 Entries
– Source IP+Source MAC
• IPv6 Source Gurad
– 183 Entries
– Source IPv6 Address+Source MAC
• DoS Defend
• Static/Dynamic/Permanent Port Security
– Up to 64 MAC addresses per port
• Broadcast/Multicast/Unicast Storm Control
– kbps/ratio/pps control mode
• Port Isolation
• Secure web management through HTTPS with SSLv3/TLS1.2
• Secure Command Line Interface (CLI) management with SSHv1/SSHv2
• IP/Port/MAC based access control
MIBs
• MIB II (RFC1213)
• Interface MIB (RFC2233)
• Ethernet Interface MIB (RFC1643)
• Bridge MIB (RFC1493)
• P/Q-Bridge MIB (RFC2674)
• RMON MIB (RFC2819)
• RMON2 MIB (RFC2021)
• Radius Accounting Client MIB (RFC2620)
• Radius Authentication Client MIB (RFC2618)
• Remote Ping, Traceroute MIB (RFC2925)
• Support TP-Link private MIBs
Vezérlés
Omada App  Yes
Centralized Management
• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access  Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Management Features
• Web-based GUI and CLI management
• SNMPv1/v2c/v3
• SNMP Trap/Inform
• RMON (1,2,3,9 groups)
• SDM Template
• DHCP/BOOTP Client
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• System Log
• 802.1ab LLDP/ LLDP-MED
Egyéb jellemzők
Tanúsítványok  CE, FCC, RoHS
Csomagolás tartalma
• TL-SG2210MP
• Power Cord
• Installation Guide
• Rackmount Kit
• Rubber Feet
Rendszerkövetelmény  Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10, MAC® OS, NetWare®, UNIX® or Linux.
Környezet
• Operating Temperature: 0–40 ? (32–104 ?);
• Storage Temperature: -40–70 ? (-40–158 ?)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
