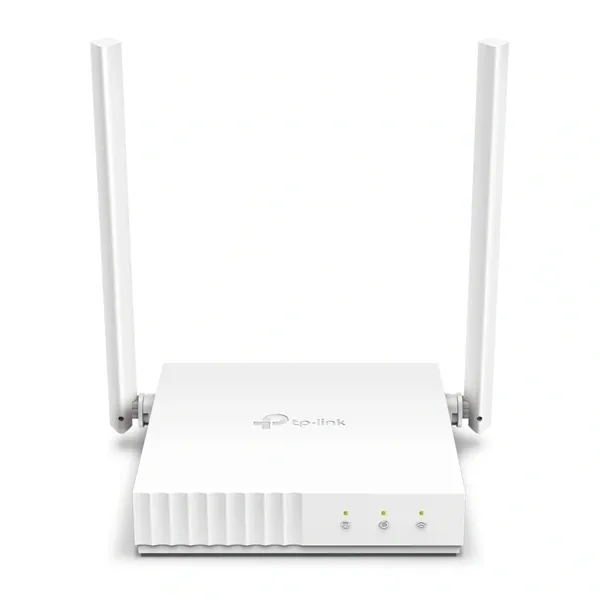

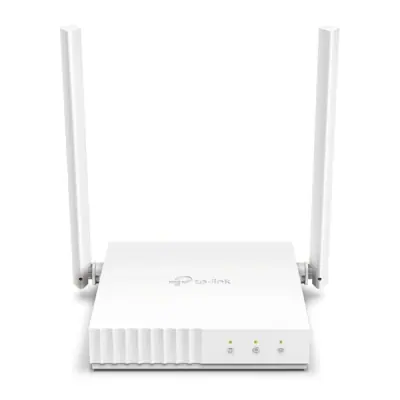

TP-Link TL-WR844N 300 Mbps Multi-Mode Wi-Fi Router

Leírás

Vezeték nélküli

Standards and Protocols            Wi-Fi 4

IEEE 802.11n/b/g 2.4 GHz

WiFi Speeds      N300

2.4 GHz: 300 Mbps (802.11n)

WiFi Range       2 Bedroom Houses2× Fixed Antennas

WiFi Capacity    Legacy

Working Modes            Router Mode

Access Point Mode

Range Extender Mode

WISP Mode

Biztonság

Network Security           SPI Firewall

Access Control

IP & MAC Binding

Application Layer Gateway

Guest Network 1× 2.4 GHz Guest Network

WiFi Encryption             WEP

WPA

WPA2

WPA/WPA2-Enterprise (802.1x)

HARDWARE

Processor         Single-Core CPU

Ethernet Ports   1× 10/100 Mbps WAN Port

4× 10/100 Mbps LAN Ports

Buttons            Reset Button

Power   5 V ? 0.6 A

SOFTWARE

Protocols          IPv4

IPv6

Parental Controls           URL Filtering

Time Controls

WAN Types       Dynamic IP

Static IP

PPPoE

PPTP

L2TP

Quality of Service          QoS by Device

NAT Forwarding            Port Forwarding

Port Triggering

DMZ

UPnP

IPTV     IGMP Proxy

IGMP Snooping

Bridge

Tag VLAN

DHCP   Address Reservation

DHCP Client List

Server

DDNS   NO-IP

DynDNS

Management Features   Tether App

Webpage

Check Web Emulator>

OTHER

Network Services Enabled by Default     Web Server

Manage and configure device through web (HTTP/HTTPS)

• Port: 80/443   Protocol: TCP

DHCP Server

IP address assignment (DHCP)

• Port: 67   Protocol: UDP

App management

Manage and configure device through app

• Port: 20002   Protocol: UDP

System Requirements    Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)

Certifications     FCC, CE, RoHS

Environment     Operating Temperature: 0?~40? (32? ~104?)

Storage Temperature: -40?~70? (-40? ~158?)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

TEST DATA

WiFi Transmission Power           CE:

<20dBm(2.4GHz)

FCC:

<30dBm

WiFi Reception Sensitivity          270M: -70dBm@10% PER

130M: -74dBm@10% PER

108M: -74dBm@10% PER

54M: -77dBm@10% PER

11M: -87dBm@8% PER

6M: -90dBm@10% PER

1M: -98dBm@8% PER

PHYSICAL

Dimensions (W×D×H)   4.5 × 4.2 × 1.0 in

(115 × 106.7 × 24.3 mm)

Package Content           Wi-Fi Router TL-WR844N

Power Adapter

RJ45 Ethernet Cable

Quick Installation Guide
