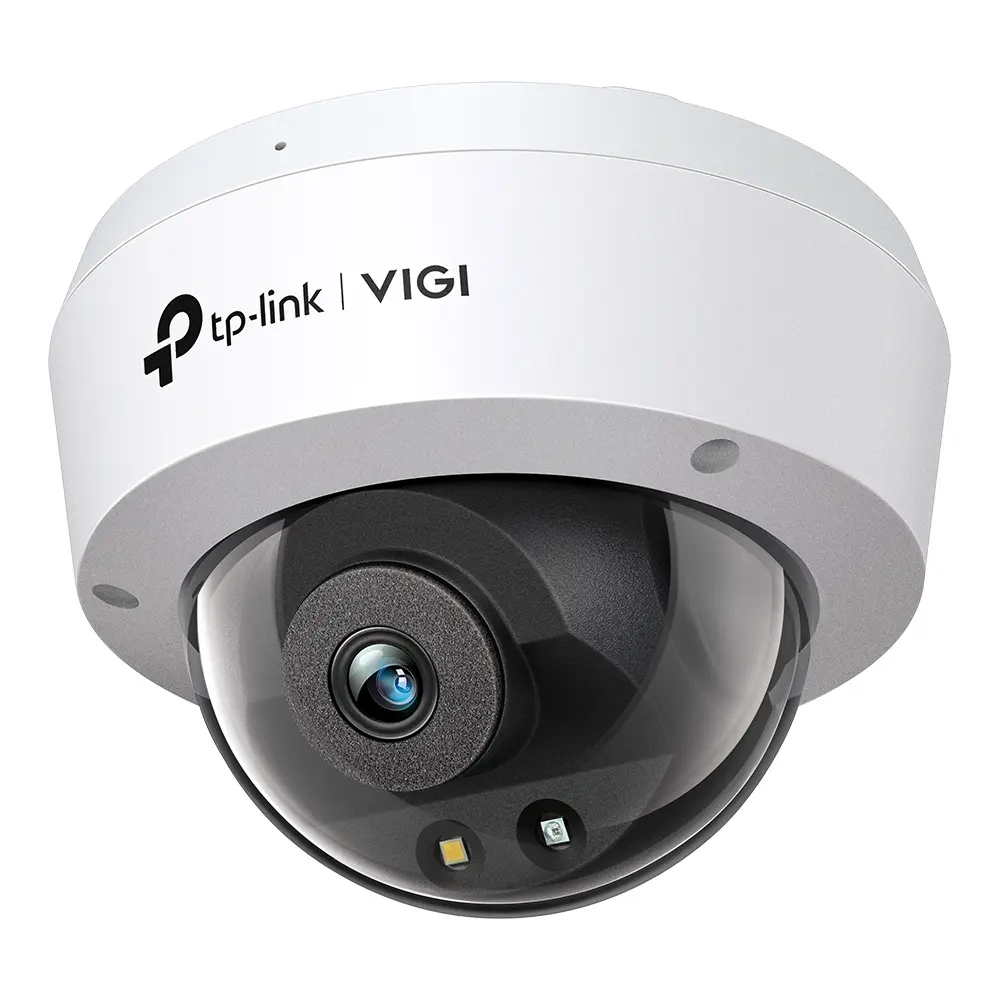

TP-LINK VIGI C230(4MM) IP kamera

Leírás

CAMERA
Image Sensor 1/2.8” Progressive Scan CMOS
Shutter Speed 1/3 to 1/10000 s
Slow Shutter Yes
Minimum Illumination Color: 0.005 Lux; 0 Lux with IR/White Light
Day/Night Mechanism IR Cut Filter
Day/Night Switch Unified/ Scheduled/ Auto
LENS
Type Fixed Focal Lens
Focal Length 4 mm
Aperture F1.6
FOV 4 mm: Horizontal FOV: 84.4°, Vertical FOV: 44.3°, Diagonal FOV: 100.6°
Lens Mount M12
DORI Distance 4 mm:
Detect: 70 m (230 ft)
Observe: 29 m (96 ft)
Recognize: 14 m (46 ft)
Identify: 7 m (23 ft)
Angle Adjustment (Manual)
Range • Pan: 0° to 355°
• Tilt: 0° to 75°
ILLUMINATOR
IR LED • Quantity: 1
• Range: 30m
• Wavelength: 850nm
White LED • Quantity: 1
• Range: 30m
Illuminator On/Off Control Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution 2304 × 1296
Main Stream • Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• Resolution: 2304×1296, 2048×1280, 1920×1080, 1280×720

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream • Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• Resolution: 704×576, 640×480, 352×288, 320×240

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control CBR, VBR
Video Compression • Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
H.264 Type High Profile
H.264+ Main Stream Supported
H.265 Type Main Profile
H.265+ Main Stream Supported
Video Bit Rate • Main Stream: 256 Kbps to 4 Mbps
• Sub-Stream: 64 Kbps to 512 Kbps
Image Settings • Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White Balance
• Prevent Overexposure to Infrared Light
• HLC Adjustable by Client Software
• Rotation(90°/270°)
Image Enhancement BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range DWDR
SNR ? 52 dB
Image Parameters Switch Yes
Privacy Mask Up to 4 Masks
ROI 1 Region
OSD Setting Yes
AUDIO
Audio Communication N/A
Audio Input Yes (Built-in Microphone)
Audio Output N/A
Audio Compression Yes
Audio Sampling Rate 8KHz
Environment Noise Filtering Yes
Audio Bit Rate 64 Kbps(G.711 alaw)
NETWORK
Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, 802.1x, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP, RTMP
ONVIF Yes
API Open Network Video Interface (Profile S/T)
Simultaneous Live View 3 Main Streams & 3 Sub-Streams
Client VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool, VIGI PC Client
Web Browser • Google Chrome® 57 and above
• Firefox® 52 and above
• Safari® 11 and above
• Microsoft® Edge 91 and above
Cloud Yes
Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
ALARM AND EVENT MANAGEMENT
Smart Event • Intrusion Detection
• Line-Crossing Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned/Removal Detection
• Abnormal Sound Detection
• People Detection
• Vehicle Detection
Basic Event • Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts)
• Video Tampering Detection
• Exception ( Illegal Login)
Alarm Linkage • White Light Flashing
• Message Push
INTERFACES
Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm N/A
Reset Button N/A
Power DC Power Port
On-board Storage N/A
Built-in Microphone Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in Speaker N/A
Audio N/A
GENERAL
Operating Temperature -30 °C to 60 °C (-22 °F to 140 °F)
Storage Temperature -40 °C to 60 °C (-40 °F to 140 °F)
Operating Humidity 95% or Less (Non-Condensing)
Storage Humidity 95% or Less (Non-Condensing)
Package Content • VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories
Material Plastic
Net Weight 0.29 Kg
Gross Weight 0.47 Kg
Power Supply • 12V DC ± 5%, Max. 4.7 W, 5.5mm Coaxial Power Plug
• PoE: 802.3af/at, class 0, Max. 5.5 W
Protection IP67 Waterproof, IK10 Vandal Proof
Product Dimensions (L x W x H) 4.5 × 3.4 × 4.5 in (115 × 86 × 115 mm)
Certifications CE, NTRA, VCCI, BSMI
