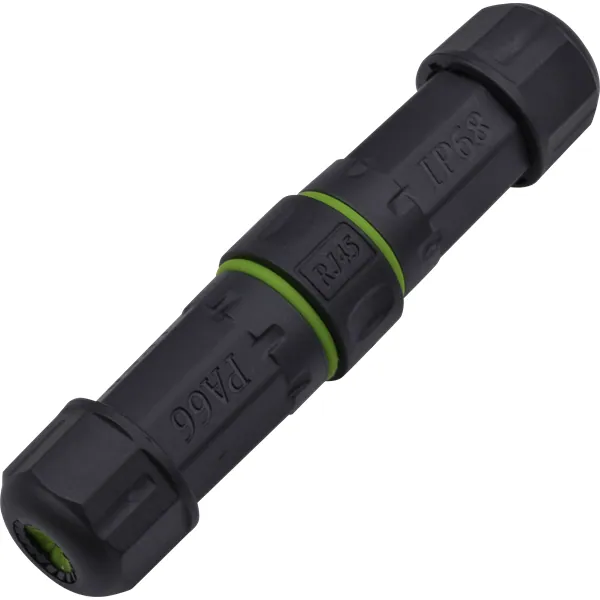

Walisec kültéri toldó – RJ45-KC6UW (Cat6, árnyékolatlan, IP68)

Name: Walisec kültéri toldó - RJ45-KC6UW (Cat6, árnyékolatlan, IP68)
Brand: WALISEC
SKU: US31818
Availability: InStock

Cikkszám: US31818Gyártói cikkszám: RJ45-KC6UW

Cat6, árnyékolatlan, IP68

1 390 Ft

Bruttó ár, az ÁFÁ-t tartalmazza

Raktáron (10+ db)Várható kézbesítés, ha most megrendeli: okt. 21–22.

Az Ön jogszabályi szavatossági jogai

Leírás

Connector Type
Category	Cat 6
Connector	2x RJ45(8P8C) Female Ports
Shielding	Unshielded

Material
Housing Material	Nylon PA66
Contact Material	Phosphor Bronze, Stamped Pin, Thickness = 0.35mm
Contact Surface Material	Gold Plating, thickness = 3U (3μin or 0.0762 µm)

Electrical Properties
Transmission Frequency	250 MHz
Voltage/Current Rating	125 VAC / 1.5 A
Insulation Resistance	≥ 1000 MΩ
Contact Resistance	≤ 100 mΩ at 500 VDC
Dielectric Strength	750 VAC RMS, 60Hz, 1 minute

Mechanical Properties
Durability	≥ 750 mating cycles
Wire Diameter	4 mm ≤ ODO ≤ 8 mm

Environment
Operating Temperature	-40°C to 70°C
Operating Humidity	RH 10% to 90% (non-condensing)
Storage Temperature	-40°C to 80°C
Storage Humidity	RH 5% to 96% (non-condensing)

General
Dimension	O22.5×108 mm (Diameter x Length)
Net Weight	25 g

Diagram	unit: mm
