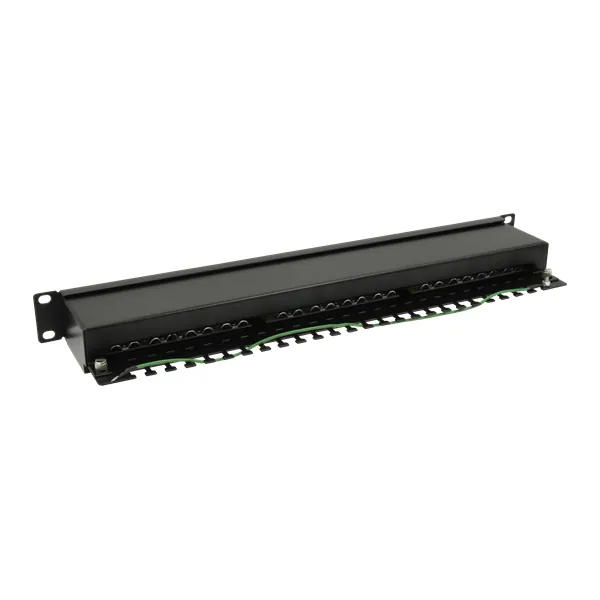

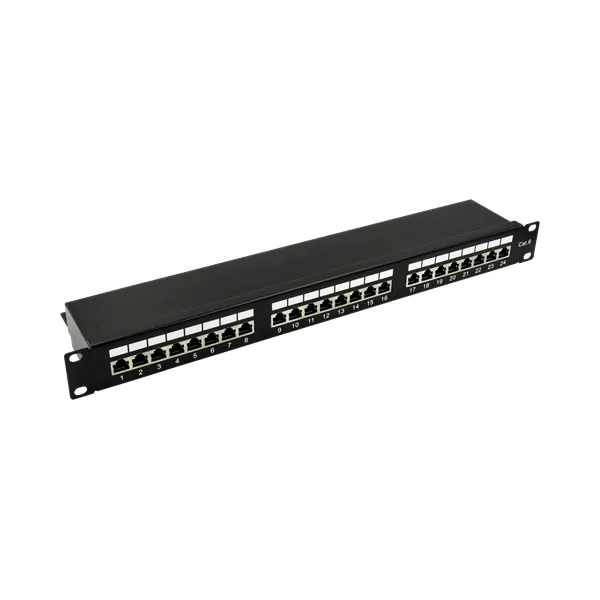

Walisec patch panel – PP-P6S2401 (24 port, Cat6, 1U, árnyékolt, fekete)

Name: Walisec patch panel - PP-P6S2401 (24 port, Cat6, 1U, árnyékolt, fekete)
Brand: WALISEC
SKU: US31850
Availability: InStock

Cikkszám: US31850Gyártói cikkszám: PP-P6S2401

24 port, Cat6, 1U, árnyékolt, fekete

8 690 Ft

Bruttó ár, az ÁFÁ-t tartalmazza

Raktáron (10+ db)Várható kézbesítés, ha most megrendeli: okt. 21–22.

Az Ön jogszabályi szavatossági jogai

Leírás

Connector Type
Category	Cat 6
Shielding	Shielded
Connector	3*8 x RJ45 Jacks
IDC Type	Dual (Krone & 110)

Material
Housing Material	PBT
Shield Material	Stainless Steel, thickness = 0.2 mm
IDC Material	PC Contact Jaw: Phosphor Bronze with Tin Plating, thickness = 0.8 mm
Contact Material	Phosphor Bronze with Nickel Plating, thickness = 0.45 mm
Contact Surface Material	Gold Plating, thickness = 1U (1μin or 0.0254µm)
PCB Material	FR-4, thickness = 1.6 mm
Panel Frame	Carbon Steel, Powder-Coated in Black, SPCC 1.5 mm

Electrical Properties
Voltage/Current Rating	125 VAC RMS / 1.5 A
Insulation Resistance	≥ 1000 MΩ at 500 VDC
Contact Resistance	≤ 100 mΩ
Dielectric Strength	750 VAC RMS, 60Hz, 1 minute

Mechanical Properties
RJ45 Jack	≥ 750 mating cycles
IDC Lifespan	≥ 250 termination cycles
Wire Gauge	AWG 22-26
Wiring Scheme	T568A/T568B

Environment
Operating Temperature	-25°C to 70°C
Operating Humidity	RH 10% to 90% (non-condensing)
Storage Temperature	-40°C to 85°C
Storage Humidity	RH 5% to 96% (non-condensing)

General
Installation	Rack Mount, Standard 19-inch
Dimension	482.6 (19″) x 44.45 (1U) x 110.5 mm (WxHxD)
Net Weight	1.5 kg
Gross Weight	1.6 kg
