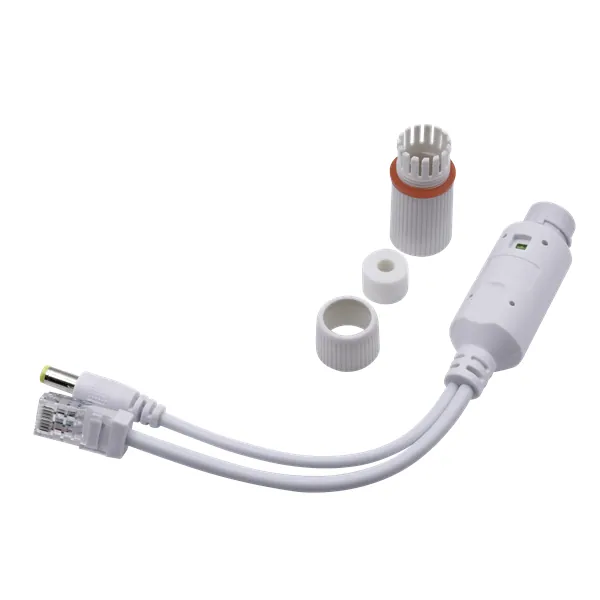

Walisec PoE Injector adapter – PSE-S04 (Kültéri (IP67), Max.: 12VDC/1A adapter, 10/100 Mbps)

I/O Interfaces

Power Output

1x 5.5*2.1 mm DC plug (max. 12 VDC, 1A)

Ethernet Ports

1x 10/100 Mbps RJ45 PoE Input Port

1x 10/100 Mbps RJ45 Output Port

Standards

Network Standards

IEEE 802.3i (10BASE-T Ethernet)

IEEE 802.3u (100BASE-TX Fast Ethernet)

IEEE 802.3x (Flow Control)

PoE Standards

IEEE 802.3af

Network Media

10BASE-T: UTP category 3, 4, 5 cable (max. 100 m)
100BASE-TX: UTP category 5 or above cable (max. 100 m)

Environment

Operating Temperature

-10°C to 50°C

Operating Humidity

RH 10% to 90% (non-condensing)

Storage Temperature

-40°C to 85°C

Storage Humidity

RH 5% to 95% (non-condensing)

General

Power Supply

max. 12 VDC, 1A

Shell Material

PC

Dimension

O23 x 100 mm (DxL) pigtail length 129 mm

Net Weight

45 g
