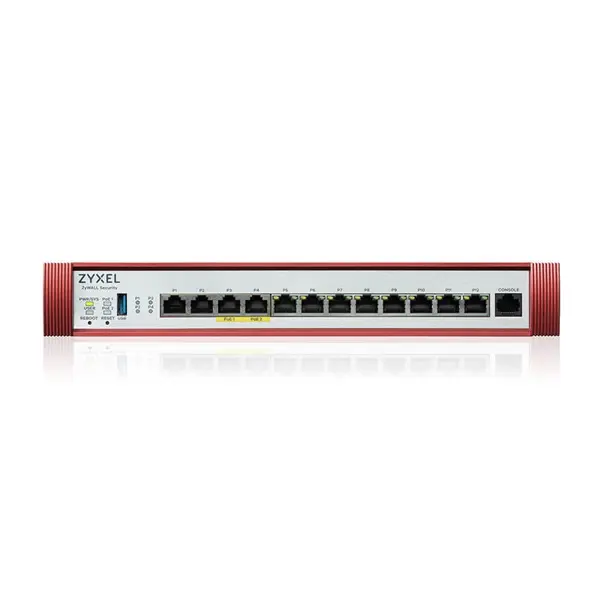

ZYXEL Tűzfal 4×2.5-GbE port(2xPOE+) + 8×1-GbE + 1xUSB 3.0 + 1konzol port + 1 év Security Bundle, USGFLEX500H-EU0102F

Leírás

Garancia: 5 Év

Hardware Specifications

Interface ports

2 x 2.5-GbE Ethernet

2 x 2.5-GbE/PoE Ethernet (802.3at, total 30W)

8 x 1-GbE Ethernet

USB 3.0 ports

1

Console port

Yes (RJ-45)

Rack-mountable

Yes

Fanless

–

System Capacity & Performance*1

SPI firewall throughput (Mbps)*2

10,000

VPN throughput (Mbps)*3

2,000

IPS throughput (Mbps)*4

3,500

Anti-Malware throughput (Mbps)*4

2,500

UTM throughput (Anti-malware & IPS, Mbps)*4

2,500

Max. TCP concurrent sessions*5

1,000,000

Max. concurrent IPsec VPN tunnels*6

300

Recommended gateway-to-gateway IPsec VPN tunnels

150

Concurrent SSL VPN users

150

VLAN interface

64

Max. Concurrent devices logins*7

300

Security Service*8

Anti-Malware

Yes

IPS

Yes

Application Patrol

Yes

Web filtering

Yes

Reputation Filter

Yes

SecuReporter

Yes

Sandboxing

Yes

Device Insight

Yes

Secure WiFi*9

Yes

Key Features

VPN

IKEv2, IPSec, SSL

SSL (HTTPS) inspection

Yes

Two-Factor Authentication

Yes

Nebula Centralized Management

Yes

Power Requirements

Power input

19V DC, 4.736A

Max. power consumption (Watt Max.)

68

Heat dissipation (BTU/hr)

211.3

PoE power budget (watt max.)

30

Physical Specifications

Item

Dimensions (WxDxH)(mm/in.): 300 x 182 x 43.5/11.81 x 7.17 x 1.71

Weight (kg/lb.): 1.64/3.62

Packing

Dimensions (WxDxH)(mm/in.): 350 x 149 x 244/13.78 x 5.87 x 9.61

Weight (kg/lb.): 2.93/6.46

Included accessories

Power adapter & Power cord

RJ-45 – RS-232 cable for console connection

Rack mounting kit

Environmental Specifications

Operating

Temperature: 0°C to 40°C / 32°F to 104°F

Humidity: 10% to 90% (non-condensing)

Storage

Temperature: -30°C to 70°C / -22°F to 158°F

Humidity: 10% to 90%(non-condensing)

MTBF (hr)

40°C/ 346653.298 hr

25°C/ 491775.8384 hr

Acoustic noise

16.86dBA on < 25degC Operating Temperature, 43.76dBA on full FAN speed

Certifications

EMC

FCC Part 15 (Class A)

CE EMC (Class A)

RCM (Class A)

BSMI

Safety

LVD (EN62368-1)

BSMI
