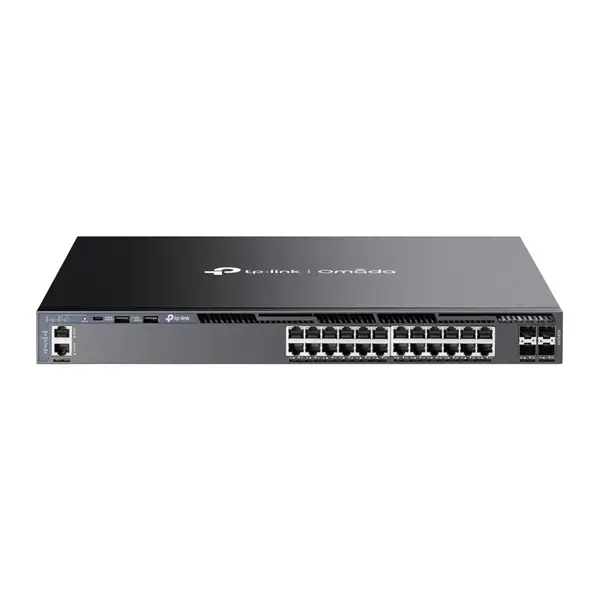

TP-LINK Switch 24x1000Mbps + 4x10Gbps SFP+ +2xUSB + 1xkonzol port + 1xUSB-C Layer3 Menedzselhető Rackes, SG6428X

Leírás

Garancia: 5 Év

•
























  Schnittstelle	• 24× 10/100/1000 Mbps RJ45 Ports • 4× 10G SFP+ Slots • 2× USB 2.0 Ports • 1× RJ45 Console Port • 1× USB Type-C Console Port • 1× RJ45 Management Port
  Anzahl Lüfter	Four Internal Fixed Fans
  Spannungsversorgung	Two Internal Fixed Power Supply Modules (100–240 VAC, 50/60 Hz)
  Abmessungen (B*T*H)	17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm)
  Montage	Rackmountable
  Maximale Leistungsaufnahme	28.4 W (220 V/50 Hz)
  Maximale Wärmeabgabe	96.91 BTU/hr (220 V/50 Hz)


























  PERFORMANCE
  Switchingkapazität	128 Gbps per Unit
  Stacking	• Stacking Number: 4 • Stacking Port: 10G SFP+ Slot (all uplink ports can be used as stacking ports) • Stack Bandwidth: Up to 80 Gbps (4 stack ports)
  Paketweiterleitungsrate	95.2 Mpps
  MAC-Adresstabelle	32 K
  Paketpufferspeicher	3 MB
  Jumbo-Frames	9 KB


























  SOFTWARE-FUNKTIONEN
  Quality of Service	• Class of Service – 8 Queues of Priority – Port Priority – IEEE 802.1p Priority – DSCP Priority – Queue Min-Bandwidth – Schedule Mode (SP, WRR, SP+WRR) • Bandwidth Control – Rate Limit – Storm Control • Voice VLAN • User-Defined OUI • Smoother Performance • Action for Flows – QoS remark (802.1P Remark, DSCP Remark)
  Layer3-Funktionen	• IP Interfaces: – IPv4: Max 256, IPv6: Max 256 • Static Routing – Max 1,024, IPv6: Max 512 • Host Route Table: Max 6,100 entries • RIP: Version v1/v2, Max 8,190 • OSPF: Version v2/v3; v2: Max 8,190, v3: Max 4,097 • VRRP: Version v2/v3, Max 64 groups • ECMP: 256 entries, max 32 ECMP Nexthops per Destination • Static ARP: 512 static entries • Dynamic ARP: 7,680 dynamic entries • Proxy ARP • DHCP Server: – Max 8K IP Pools – Max 1,000 Manual Binding Entries • DHCP Relay: – Relayed Interface – Relayed VLAN
  Layer2- und Layer2+-Funktionen	• Link Aggregation • Spanning Tree Protocol • Port-based and VLAN-based Loopback Detection • 802.3x Flow Control • Supports 2,048 IGMP groups • ERPS • Mirroring • RSPAN • MAC Address Table • PIM-DM (IPv4) • Multicast – IGMP Snooping – MLD Snooping – L2 Multicast Table – Fast Leave – Multicast VLAN Registration (MVR) – Static Multicast IP – Multicast Filtering
  Erweiterte Funktionen	• Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Intelligent Network Monitoring† • Abnormal Event Warnings† • Unified Configuration† • Reboot Schedule† ISP Features: • 802.3ah Ethernet Link OAM • L2PT (Layer 2 Protocol Tunneling) • Device Link Detect Protocol (DLDP) • DDM • sFlow
  VLAN	• Max 4K VLAN Group (802.1q VLAN) • 802.1Q Tagged VLAN • MAC VLAN Entries: 200 • Multicast VLAN • Management VLAN • VLAN VPN (QinQ): Max 256 entries • GVRP • Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries • VLAN VPN • Voice VLAN • Private VLAN
  Sicherheit	• Port Isolation • CPU-Defend • ARP Inspection (Dynamic ARP Inspection) • DoS Defend • IP-MAC-Port Binding -1,024 Entries – DHCP Snooping – ARP Inspection – IPv4 Source Guard • IPv6-MAC -Port Binding -1,024 Entries – DHCPv6 Snooping – ND Detection – ND Snooping – IPv6 Source Guard • DHCP Filter • Static/Dynamic Port Security – Up to 64 MAC addresses per port • Broadcast/Multicast/Unknown-unicast Storm Control – kbps/ratio control mode • 802.1X – Port base authentication – Mac base authentication – VLAN Assignment – MAB – Guest VLAN – RADIUS authentication and accountability support • AAA (including TACACS+) • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv2 • IP/Port/MAC-based access control























  VERWALTUNG
  Omada App	Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
  Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
  Cloud Access	Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
  Zero-Touch Provisioning	Yes. Requiring the use of the Omada Cloud-Based Controller.
  Management Features	• Web-based GUI • Command Line Interface (CLI) through console port, telnet • SNMPv1/v2c/v3 – Trap/Inform – RMON (1, 2, 3, 9 groups) • SDM Template • DHCP/BOOTP Client • 802.1ab LLDP/LLDP-MED • DHCP Auto Install • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • Password Recovery • SNTP • System Log • EEE

















  SONSTIGES
  Verpackungsinhalt	• SG6428X Switch • 2× Power Cords • RJ45 Console Cable • Quick Installation Guide • Rackmount Kit • Rubber Feet
  Systemanforderungen	Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
  Umgebung	• Operating Temperature: -5 °C to 50 °C (23 °F to 122 °F) @ 300 meters -5 °C to 45 °C (23 °F to 113 °F) @ 2,000 meters -5 °C to 40 °C (23 °F to 104 °F) @ 3,000 meters • Storage Temperature: -40 °C to 70 ? (-40 ? to 158 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
